TAIL LAMP (E2, E6, E24)
PE400 1980 (T) (E01 E02 E15 E24)

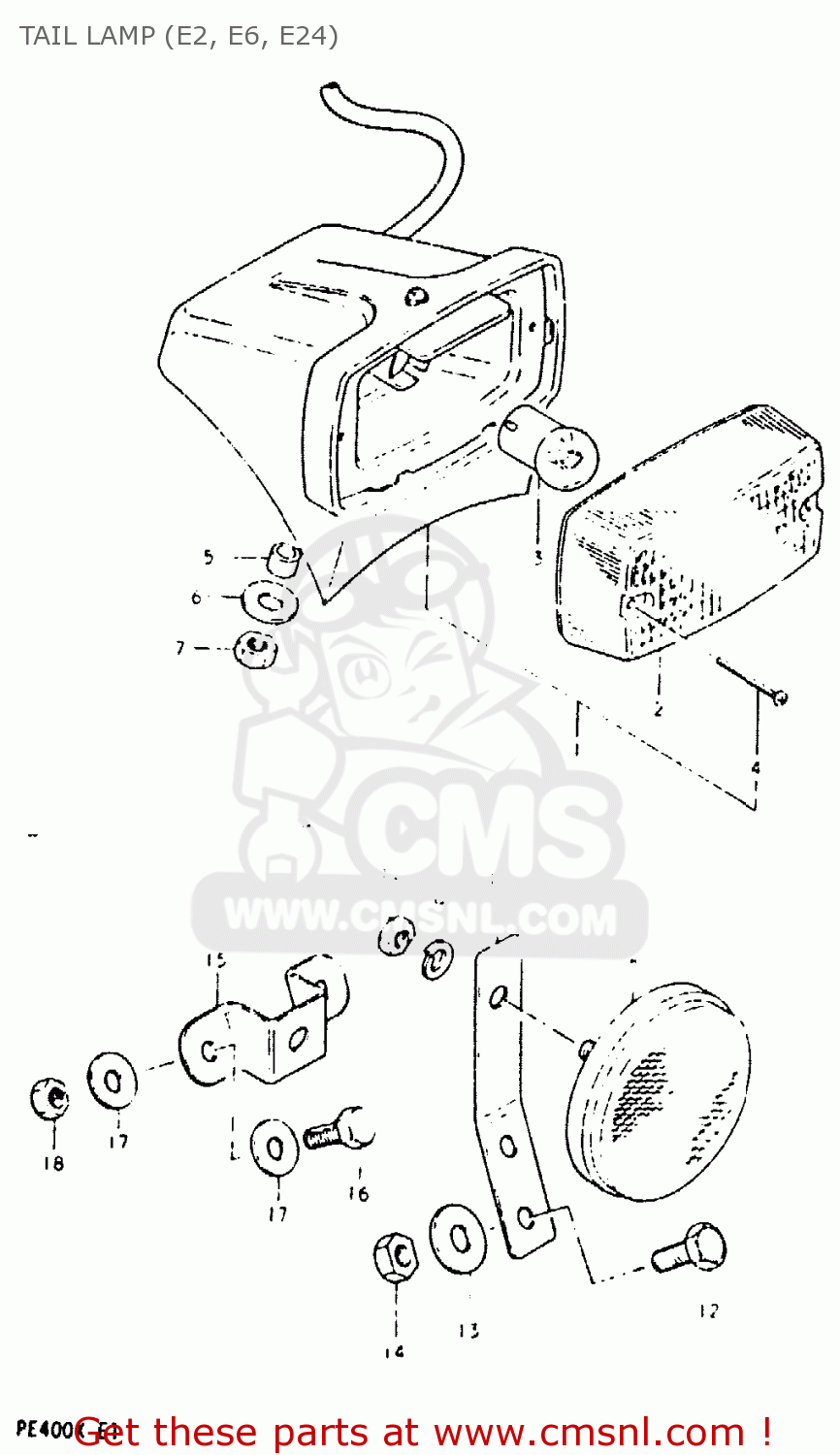

Tail lamp (e2, e6, e24) diagram PE400 1980 (T) (E01 E02 E15 E24)
TAIL LAMP (E2, E6, E24) PE400 1980 (T) (E01 E02 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571040510
ref: 1-1
MODEL T
LAMP ASSY, TAIL
€ 0.00
1-2
3571040511
ref: 1-2
MODEL X
LAMP ASSY, TAIL
€ 0.00
2
3571230410
ref: 2
LENS
€ 15.50
3
0947106009
ref: 3
BULB(6V17/5.3W,STANLEY,A4813)
€ 6.50
4
3572340610
ref: 4
SCREW,REAR COMBINATION LAMP LENS
€ 0.00
5
0918006011
ref: 5
SPACER (6.1X9X9)
€ 2.00
6
0916006007
ref: 6
WASHER
€ 2.00
7
0831011068
ref: 7
NUT
€ 2.50
8
3597030910
ref: 8
E2
REFLEX REFLECTOR,RR
€ 47.50
9
0832121058
ref: 9
E2
LOCK WASHER
€ 2.00
10
0831011058
ref: 10
E2
NUT
€ 2.50
11
3597440620
ref: 11
MODEL T:E2
BRACKET
€ 0.00
12
0110706128
ref: 12
MODEL T:E2
BOLT
€ 2.00
13
0832221068
ref: 13
MODEL T:E2
WASHER
€ 2.00
14
0831011068
ref: 14
MODEL T:E2
NUT
€ 2.50
15
3597440640
ref: 15
MODEL X:E2
BRACKET
€ 3.00
16
0110405128
ref: 16
MODEL X:E2
BOLT
€ 2.00
17
0832221058
ref: 17
MODEL X:E2
WASHER
€ 2.50
18
0831011058
ref: 18
MODEL X:E2
NUT
€ 2.50
