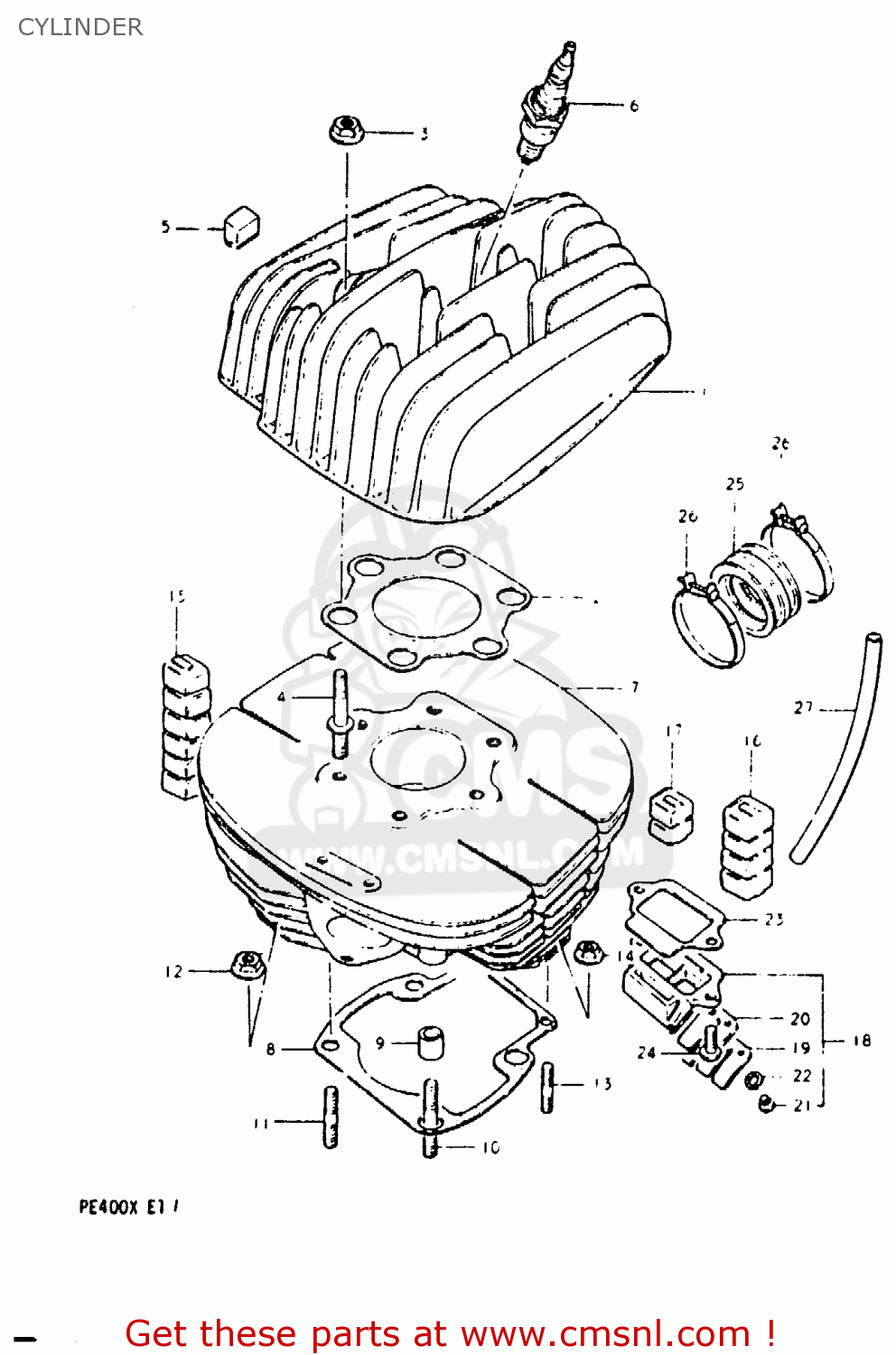

CYLINDER

ref

part #

description

quantity

1-1

1111140901
ref: 1-1
MODEL T, TO 11111-40

HEAD,CYLINDER

€ 0.00

1-2

1111140902
ref: 1-2
MODEL X

HEAD,CYLINDER

€ 0.00

2-1

NOTUSED
ref: 2-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-3

1114140910
ref: 2-3
E2, E6, E24

GASKET (T:2.0)

€ 20.00

3

0831616088
ref: 3

NUT

€ 2.50

4

0910808018
ref: 4

BOLT,STUD

€ 4.00

5

1115140900
ref: 5

PAD,CYLINDER HEAD

€ 4.00

6-1

NOTUSED
ref: 6-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6-2

NOTUSED
ref: 6-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6-3

0948200115
ref: 6-3
E2

SPARK PLUG BR9EV

€ 81.50

7

1121040900
ref: 7

CYLINDER

€ 0.00

8

1124140900
ref: 8

GASKET,CYLINDER (MCA)

€ 7.00

9

0920613001
ref: 9

PIN

€ 2.50

10

0142110408
ref: 10

STUD BOLT (L:40)

€ 2.00

11

0142110258
ref: 11

STUD 10X25

€ 3.00

12

0831616108
ref: 12

NUT

€ 2.00

13

0142106208
ref: 13

STUD 6X20

€ 2.50

14

0831616068
ref: 14

NUT

€ 2.50

15

1125140900
ref: 15

PAD,CYLINDER

€ 11.50

16

1125129310
ref: 16

PAD,CYLINDER

€ 11.50

17

1125211300
ref: 17

PAD,CYLINDER

€ 11.50

18

1315040400
ref: 18

VALVE ASSEMBLY,REED

€ 184.50

19

1315240400
ref: 19

STOPPER,REED VALVE

€ 6.50

20

1315340400
ref: 20

VALVE,REED

€ 184.50

21

0211203088
ref: 21

SCREW

€ 1.50

22

0832121038
ref: 22

LOCK WASHER

€ 1.50

23

1315640400
ref: 23

GASKET,REED VALVE (MCA)

€ 6.50

24

0211206168
ref: 24

SCREW

€ 2.50

25

1311140401
ref: 25

PIPE,INTAKE

€ 99.00

26

0940256306
ref: 26

CLAMP

€ 3.50

27

0934304010
ref: 27

HOSE

€ 3.00
