Buy Suzuki RF Parts Online


CAM SHAFT-VALVE

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

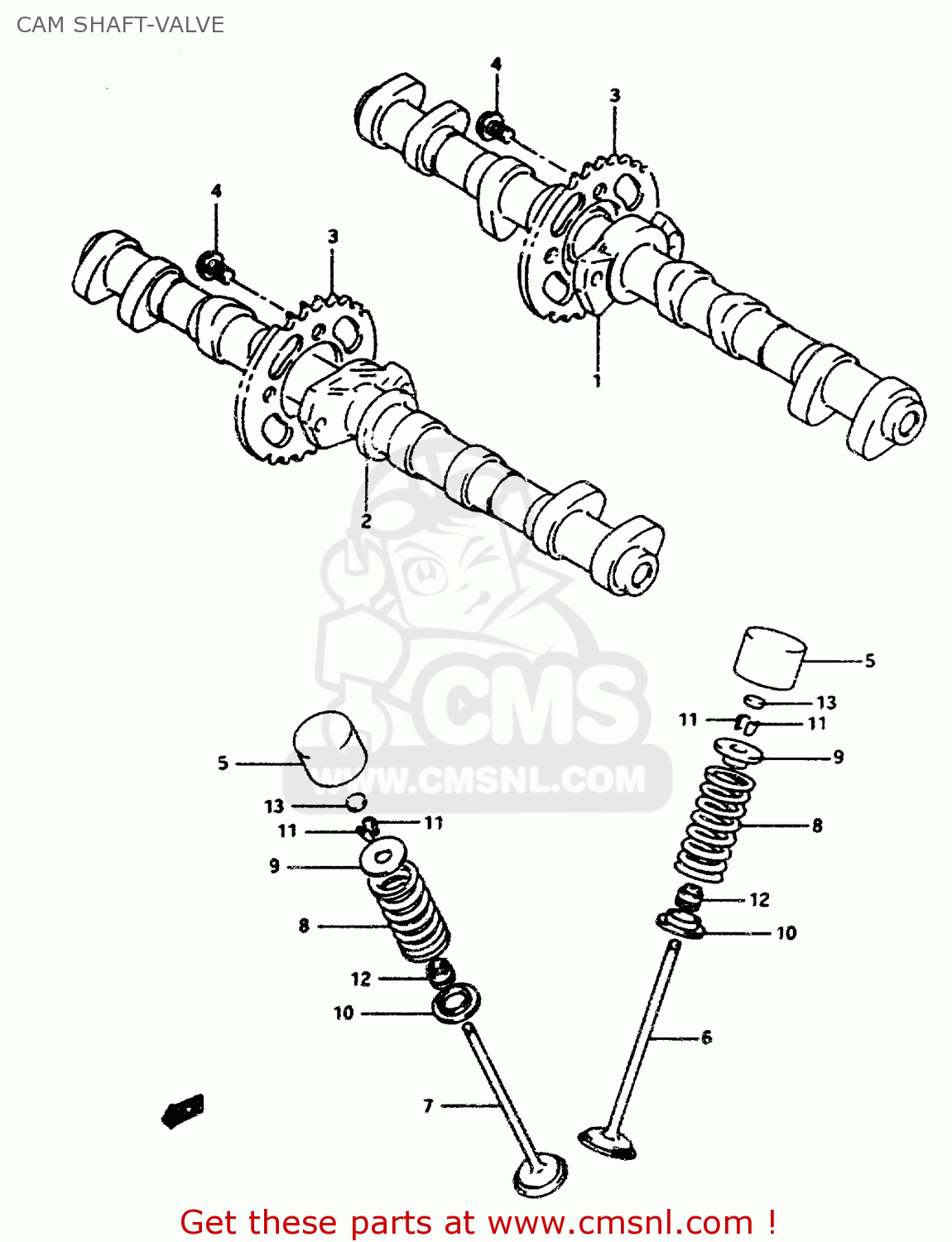

Cam shaft-valve diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

CAM SHAFT-VALVE RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
CAM SHAFT-VALVE RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
CAM SHAFT-VALVE RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1271121E00
ref: 1-1
MODEL P/R
CAMSHAFT,INTAKE
€ 219.50
1-2
1271121E20
ref: 1-2
MODEL S/T/V
CAM SHAFT,INTAKE
€ 270.00
1-3
1271121E20
ref: 1-3
MODEL P/R E4
CAM SHAFT,INTAKE
€ 270.00
1-4
1271121E40
ref: 1-4
MODEL S/T/V E4
CAM SHAFT,INTAKE
€ 0.00
1-5
1271121E10
ref: 1-5
E18,E39
CAMSHAFT,INTAKE
€ 0.00
2-1
1272121E00
ref: 2-1
MODEL P/R
CAMSHAFT,EXHAUST
€ 219.50
2-2
1272121E20
ref: 2-2
MODEL S/T/V
CAM SHAFT,EXHAUST
€ 270.00
2-3
1272121E20
ref: 2-3
MODEL P/R E4
CAM SHAFT,EXHAUST
€ 270.00
2-4
1272121E40
ref: 2-4
MODEL S/T/V E4
CAM SHAFT,EXHAUST
€ 0.00
2-5
1272121E10
ref: 2-5
E18,E39
CAMSHAFT,EXHAUST
€ 0.00
3
1274117E00
ref: 3
SPROCKET,CAMSHAFT
1274117E00
€ 40.00
4
0910307001
ref: 4
BOLT(7X11)
0910307001
€ 2.00
5
1289118E00
ref: 5
TAPPET
€ 48.00
6
1291118E00
ref: 6
VALVE,INTAKE
1291118E00
€ 22.00
7
1291218E00
ref: 7
VALVE,EXHAUST
1291218E00
€ 32.50
8
1292117E00
ref: 8
SPRING,VALVE
1292117E00
€ 10.00
9-1
1293117E00
ref: 9-1
MODEL P/R
RETAINER,VALVE SPRING
€ 10.50
9-2
1293117E01
ref: 9-2
MODEL S/T/V
RETAINER,VALVE SPRING
1293117E01
€ 10.50
10
1293317E00
ref: 10
SEAT,VALVE SPRING
1293317E00
€ 4.50
11
1293232C00
ref: 11
COTTER VALVE
1293232C00
€ 2.00
12
0928904002
ref: 12
SEAL,OIL(4.5X10X8)
0928904002
€ 7.50
13-1
1289205C00120
ref: 13-1
SHIM,TAPPET
€ 7.00
13-2
1289205C00125
ref: 13-2
SHIM,TAPPET
€ 7.00
13-3
1289205C00130
ref: 13-3
SHIM,TAPPET
€ 7.00
13-4
1289205C00135
ref: 13-4
SHIM,TAPPET
€ 7.50
13-5
1289205C00140
ref: 13-5
SHIM,TAPPET
1289205C00140
€ 7.50
13-6
1289205C00145
ref: 13-6
SHIM,TAPPET
1289205C00145
€ 7.50
13-7
1289205C00150
ref: 13-7
SHIM,TAPPET
1289205C00150
€ 7.50
13-8
1289205C00155
ref: 13-8
SHIM,TAPPET
1289205C00155
€ 7.50
13-9
1289205C00160
ref: 13-9
SHIM,TAPPET
1289205C00160
€ 7.50
13-10
1289205C00165
ref: 13-10
SHIM,TAPPET
1289205C00165
€ 7.50
13-11
1289205C00170
ref: 13-11
SHIM,TAPPET
1289205C00170
€ 7.50
13-12
1289205C00175
ref: 13-12
SHIM,TAPPET
1289205C00175
€ 7.00
13-13
1289205C00180
ref: 13-13
SHIM,TAPPET
1289205C00180
€ 7.50
13-14
1289205C00185
ref: 13-14
SHIM,TAPPET
1289205C00185
€ 7.00
13-15
1289205C00190
ref: 13-15
SHIM,TAPPET
1289205C00190
€ 7.00
13-16
1289205C00195
ref: 13-16
SHIM,TAPPET
€ 7.00
13-17
1289205C00200
ref: 13-17
SHIM,TAPPET
1289205C00200
€ 7.00
13-18
1289205C00205
ref: 13-18
SHIM,TAPPET
€ 7.00
13-19
1289205C00210
ref: 13-19
SHIM,TAPPET
€ 7.00
13-20
1289205C00215
ref: 13-20
SHIM,TAPPET
1289205C00215
€ 7.00
13-21
1289205C00220
ref: 13-21
SHIM,TAPPET
€ 7.00
14
1280005820
ref: 14
OPT,NOT SHOWN NO.15
SHIM SET,TAPPET
€ 846.50
15
9900069491
ref: 15
OPT
CASE,TAPPET SHIM
9900069491
€ 89.00
