CRANKSHAFT

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

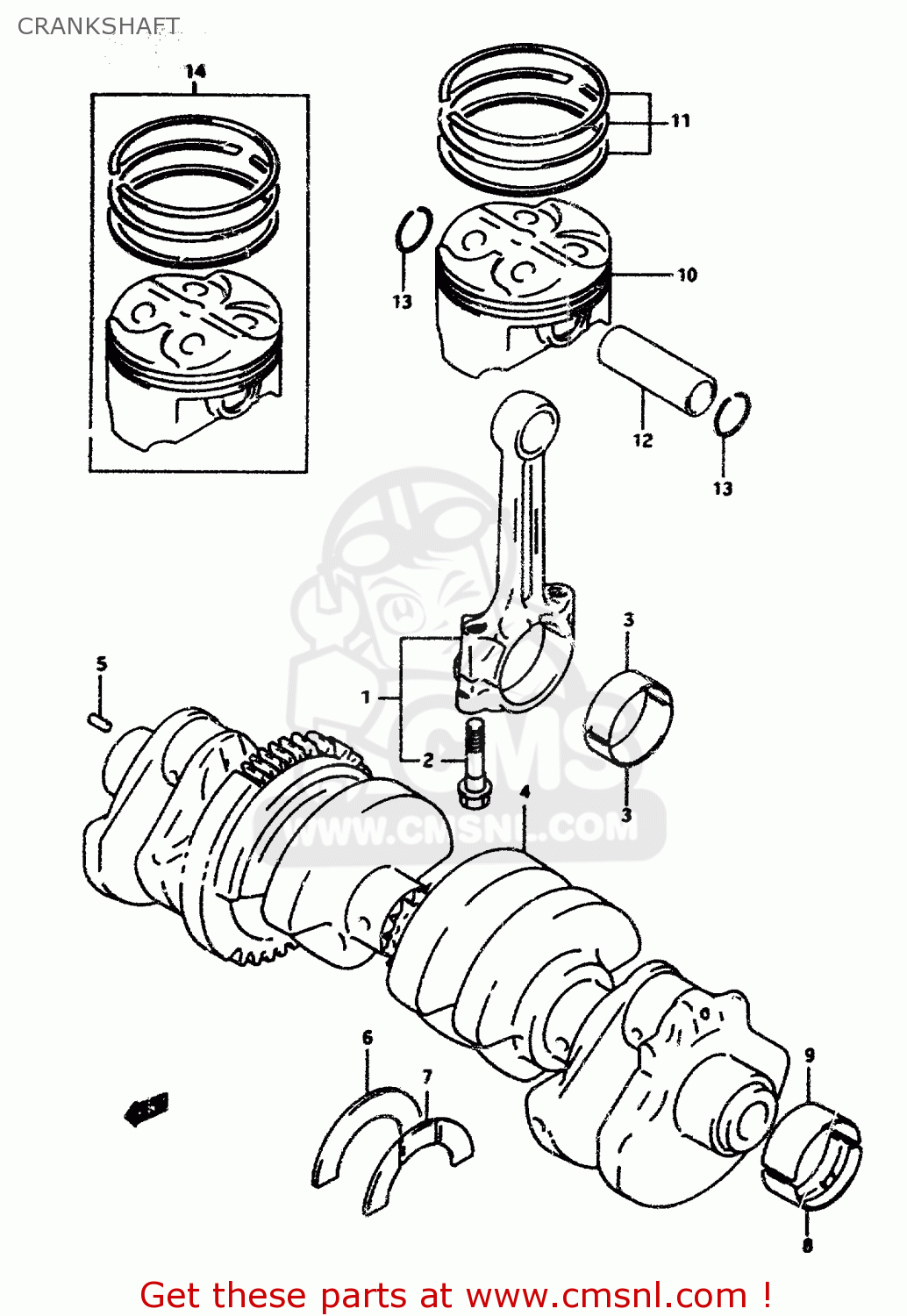

Crankshaft diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

CRANKSHAFT RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
CRANKSHAFT RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
CRANKSHAFT RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1216018E02
ref: 1
CONNECTING ROD ASSY
1216018E02
€ 144.50
2
1216327A52
ref: 2
BOLT,CONNECTING ROD
1216327A52
€ 20.00
3-1
1216418E000A0
ref: 3-1
BEARING,CRANK PIN
€ 11.50
3-2
1216418E000B0
ref: 3-2
BEARING,CRANK PIN
1216418E000B0
€ 13.00
3-3
1216418E000C0
ref: 3-3
BEARING,CRANK PIN
1216418E000C0
€ 11.50
3-4
1216418E000D0
ref: 3-4
BEARING, CRANK PIN (YELLOW)
1216418E000D0
€ 12.50
4
1200018812
ref: 4
CRANKSHAFT SET
€ 901.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
1222817E000D0
ref: 6
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-1
1222817E000A0
ref: 7-1
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
7-2
1222817E000B0
ref: 7-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
7-3
1222817E000C0
ref: 7-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
7-4
1222817E000D0
ref: 7-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-5
1222817E000E0
ref: 7-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
7-6
1222817E000F0
ref: 7-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
8-1
1222917E000A0
ref: 8-1
LOWER
BEARING,CRANKSHAFT(GREEN)
1222917E000A0
€ 15.50
8-2
1222917E000B0
ref: 8-2
BEARING,CRANKSHAFT(BLACK)
1222917E000B0
€ 16.50
8-3
1222917E000C0
ref: 8-3
BEARING,CRANKSHAFT(BROWN)
1222917E000C0
€ 16.50
8-4
1222917E000D0
ref: 8-4
BEARING,CRANKSHAFT(YELLOW)
1222917E000D0
€ 15.50
9-1
1222917E100A0
ref: 9-1
UPPER
BEARING,CRANKSHAFT(GREEN)
1222917E100A0
€ 14.00
9-2
1222917E100B0
ref: 9-2
BEARING,CRANKSHAFT(BLACK)
1222917E100B0
€ 16.50
9-3
1222917E100C0
ref: 9-3
BEARING,CRANKSHAFT(BROWN)
1222917E100C0
€ 16.50
9-4
1222917E100D0
ref: 9-4
BEARING,CRANKSHAFT(YELLOW)
1222917E100D0
€ 15.00
10-1
1211118E120F0
ref: 10-1
MODEL P/R
PISTON
1211118E120F0
€ 69.00
10-2
1211118E200F0
ref: 10-2
MODEL S/T/V
PISTON
€ 64.50
11
1214018E10
ref: 11
RING SET,PISTON
1214018E10
€ 80.00
12
1215178110
ref: 12
PIN,PISTON
1215178110
€ 15.00
13
0938116001
ref: 13
RING,SNAP 16MM
0938116001
€ 1.50
14-1
1210018E10050
ref: 14-1
MODEL P/R OPT
PISTON SET (OS:0.5)
€ 185.00
14-2
1210018E10100
ref: 14-2
MODEL P/R OPT
PISTON SET (OS:1.0)
1210018E10100
€ 85.50
14-3
1210018E20050
ref: 14-3
MODEL S/T/V OPT
PISTON SET (OS:0.5)
€ 86.00
14-4
1210018E20100
ref: 14-4
MODEL S/T/V OPT
PISTON SET (OS:1.0)
€ 86.00
