OIL COOLER-OIL FILTER

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

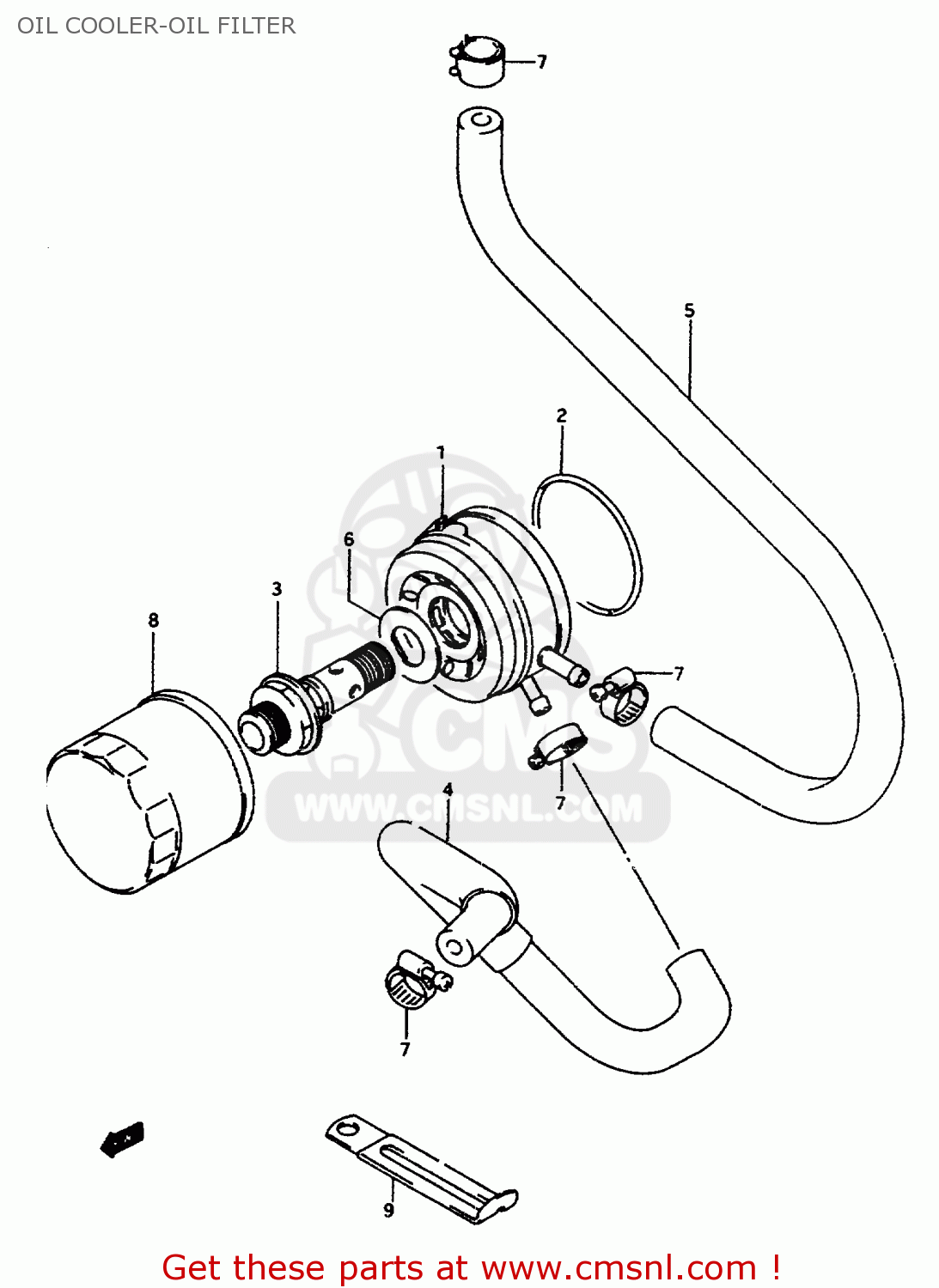

Oil cooler-oil filter diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

OIL COOLER-OIL FILTER RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

OIL COOLER-OIL FILTER RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1660017E00
ref: 1

COOLER ASSY,OIL

€ 525.00

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659133C00
ref: 3

BOLT,OIL COOLER UNION

€ 46.00

4

1646131E00
ref: 4

HOSE,OIL COOLER WATER IN

€ 22.50

5-1

1647117E01
ref: 5-1
MODEL P

HOSE,OIL

€ 31.50

5-2

1647117E02
ref: 5-2
MODEL R/S/T/V

HOSE,OIL COOLER OUTLET

€ 31.50

6-1

0918122009
ref: 6-1
MODEL P/R

SHIM,PRIMARY SHAFT (T=0)

€ 3.00

6-2

0822122355
ref: 6-2
MODEL S/T/V

SHIM

€ 2.00

7

0940113410
ref: 7

CLIP

€ 3.00

8

1651006B01
ref: 8

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

9-1

0940406413
ref: 9-1
MODEL P/R

CLAMP

€ 2.50

9-2

0940406429
ref: 9-2
MODEL S/T/V

CLAMP(L:45)

€ 2.50
