FRAME COVER (MODEL V)

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

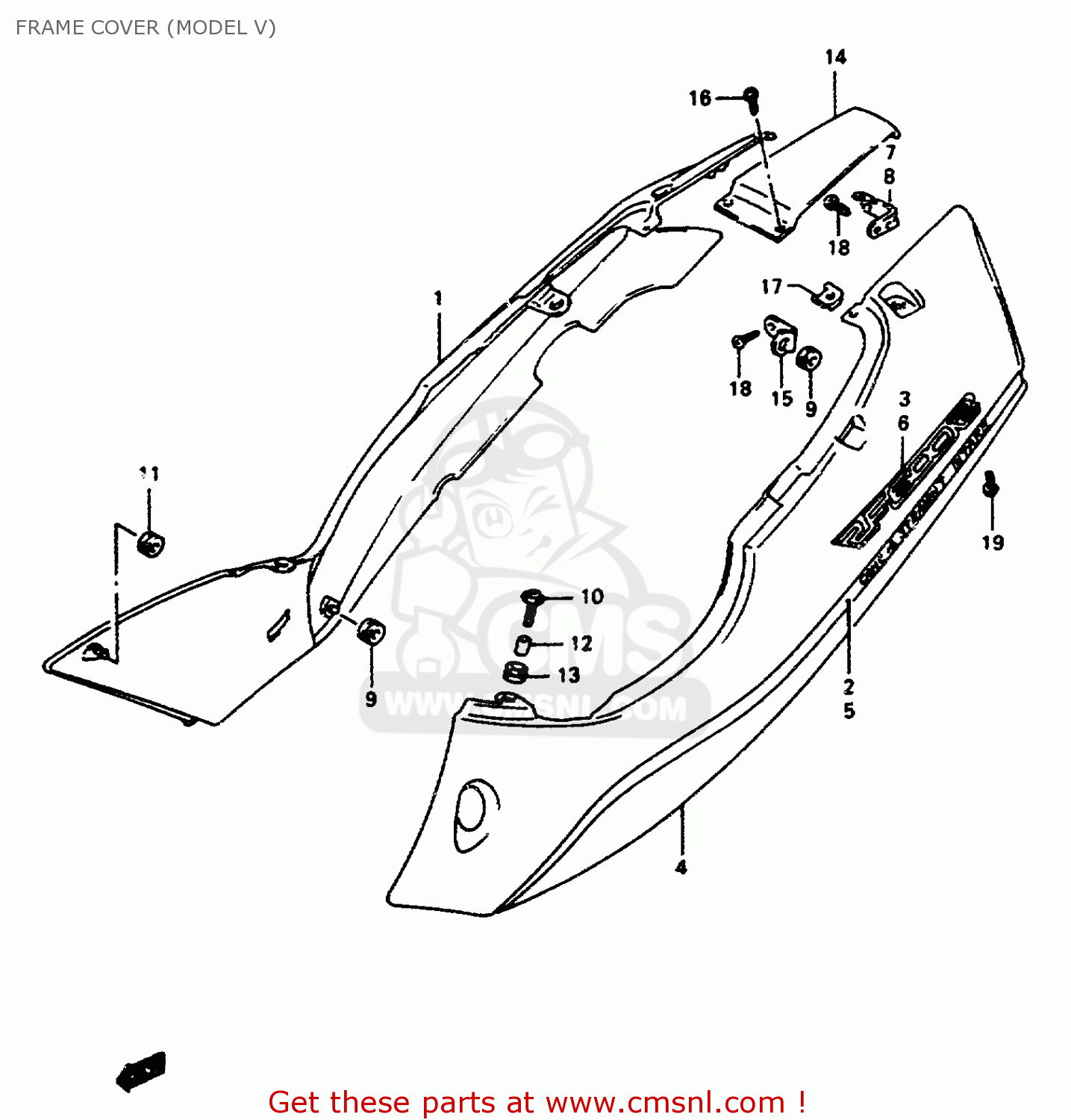

Frame cover (model v) diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

FRAME COVER (MODEL V) RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
FRAME COVER (MODEL V) RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
FRAME COVER (MODEL V) RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
4710021E30Y0V
ref: 1-1
FOR G4W
4710021E30Y0V
1-2
4710021E3028V
ref: 1-2
FOR F75
4710021E3028V
2
6813021E00E8C
ref: 2
TAPE SET,FRAME COVER STRIPE,R
€ 87.00
3
6813121E30Y2M
ref: 3
EMBLEM,FRAME COVER
€ 19.00
4-1
4720021E30Y0V
ref: 4-1
FOR G4W
COVER,FRAME LH (BLUE)
€ 375.00
4-2
4720021E3028V
ref: 4-2
FOR F75
COVER,FRAME LH (RED)
4720021E3028V
€ 422.50
5
6814021E00E8C
ref: 5
TAPE SET,FRAME COVER S
€ 88.00
6
6813121E30Y2M
ref: 6
EMBLEM,FRAME COVER
€ 19.00
7
4719121E00
ref: 7
BRACKET,FRAME COVER,R
4719121E00
€ 4.50
8
4719221E00
ref: 8
BRACKET,FRAME COVER,L
4719221E00
€ 6.00
9
0932008018
ref: 9
CUSHION
0932008018
€ 4.00
10
0911606131
ref: 10
BOLT(6X25)
0911606131
€ 2.00
11
4716121E00
ref: 11
CUSHION,FRAME COVER FR
4716121E00
€ 7.50
12
0918006265
ref: 12
SPACER(6.5X9X11)
0918006265
€ 4.50
13
0932008061
ref: 13
CUSHION
0932008061
€ 4.00
14-1
4731121E00Y0V
ref: 14-1
COVER,FRAME CENTER (GREEN)
€ 45.50
14-2
4731121E0028V
ref: 14-2
COVER,FRAME CTR
€ 42.50
15
4719321E00
ref: 15
BRACKET,RR COMBINATION LAMP
€ 6.50
16
0214205123
ref: 16
SCREW 5X12
0214205123
€ 1.50
17
0934805021
ref: 17
NUT
€ 0.00
18
0354114123
ref: 18
SCREW
0354114123
€ 2.00
19
0214205123
ref: 19
SCREW 5X12
0214205123
€ 1.50
4-3
4720021E0034R
ref: 4-3
MODEL R
COVER ASSEMBLY,FRAME,LEFT
€ 451.50
4-4
4720021E001ZV
ref: 4-4
MODEL S
COVER ASSY,FRAME,L(GREEN)
€ 389.00
4-5
4720021E0028V
ref: 4-5
MODEL S
COVER ASSEMBLY,FRAME,LEFT
€ 422.50
4-6
4720021E00163
ref: 4-6
MODEL T FOR E6R
COVER ASSY,FRAME,L(YELLOW)
€ 389.00
4-7
4720021E003AX
ref: 4-7
MODEL T FOR E6S
COVER ASSY,FRAME,L (RED)
€ 389.00
5-1
6814021E00B7G
ref: 5-1
FOR 1TY
TAPE SET,FRAME COVER S
€ 109.00
5-2
6814021E00C6A
ref: 5-2
FOR 34R
TAPE SET,FRAME COVER STRIPE,L
6814021E00C6A
€ 92.50
5-3
6814021E00B7H
ref: 5-3
FOR 1UJ
TAPE SET,LH
€ 109.00
5-4
6814021E00D3M
ref: 5-4
FOR 1ZV
TAPE SET,FRAME COVER S
€ 131.50
5-5
6814021E00D3L
ref: 5-5
FOR 28V
TAPE SET,FRAME COVER STRIPE,L
€ 92.50
5-6
6814021E00E8C
ref: 5-6
FOR 163,3AX
TAPE SET,FRAME COVER S
€ 88.00
6-1
6813121E00B8S
ref: 6-1
FOR 1TY
EMBLEM,FRAME COVER
6813121E00B8S
€ 46.00
6-2
6813121E00C6B
ref: 6-2
FOR 34R
EMBLEM,FRAME COVER
6813121E00C6B
€ 35.00
6-3
6813121E00B8T
ref: 6-3
FOR 1UJ
EMBLEM
6813121E00B8T
€ 35.00
6-4
6813121E00D3R
ref: 6-4
FOR 1ZV
EMBLEM,FRAME COVER
€ 35.00
6-5
6813121E00E8D
ref: 6-5
FOR 163
EMBLEM,FRAME COVER
€ 34.00
6-6
6813121E00A02
ref: 6-6
FOR 28V
EMBLEM,FRAME COVER
€ 35.50
6-7
6813121E00E8E
ref: 6-7
FOR 3AX
EMBLEM,FRAME COVER
€ 34.50
7-1
4719121E00
ref: 7-1
BRACKET,FRAME COVER,R
4719121E00
€ 4.50
7-2
4719221E00
ref: 7-2
BRACKET,FRAME COVER,L
4719221E00
€ 6.00
8
0932008018
ref: 8
CUSHION
0932008018
€ 4.00
9-1
0913606102
ref: 9-1
MODEL P/R
SCREW
€ 2.50
9-2
0911606131
ref: 9-2
MODEL S/T
BOLT(6X25)
0911606131
€ 2.00
10
4716121E00
ref: 10
CUSHION,FRAME COVER FR
4716121E00
€ 7.50
11
0918006225
ref: 11
SPACER
€ 4.50
12
0932008061
ref: 12
CUSHION
0932008061
€ 4.00
13-1
4731121E001TY
ref: 13-1
MODEL P/R
COVER,FRAME CTR
€ 44.50
13-2
4731121E001UJ
ref: 13-2
MODEL P
COVER,FRAME CTR
€ 47.50
13-3
4731121E0034R
ref: 13-3
MODEL R
COVER,FRAME,CENTER
4731121E0034R
€ 57.00
13-4
4731121E001ZV
ref: 13-4
MODEL S
COVER,FRAME CTR
4731121E001ZV
€ 45.50
13-5
4731121E0028V
ref: 13-5
MODEL S/T
COVER,FRAME CTR
€ 42.50
13-6
4731121E00163
ref: 13-6
MODEL T
COVER,FRAME CTR
€ 43.50
14
4719321E00
ref: 14
BRACKET,RR COMBINATION LAMP
€ 6.50
15-1
0214215125
ref: 15-1
MODEL P
SCREW
€ 2.00
15-2
0214205123
ref: 15-2
MODEL R/S/T
SCREW 5X12
0214205123
€ 1.50
16
0914805021
ref: 16
NUT
0914805021
€ 1.50
17-1
0354104125
ref: 17-1
MODEL P
SCREW
0354104125
€ 1.50
17-2
0354114123
ref: 17-2
MODEL R/S/T
SCREW
0354114123
€ 2.00
18-1
0214215125
ref: 18-1
MODEL P
SCREW
€ 2.00
18-2
0214205123
ref: 18-2
MODEL R/S/T
SCREW 5X12
0214205123
€ 1.50
