Buy Suzuki RF Parts Online


REAR CUSHION LEVER

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

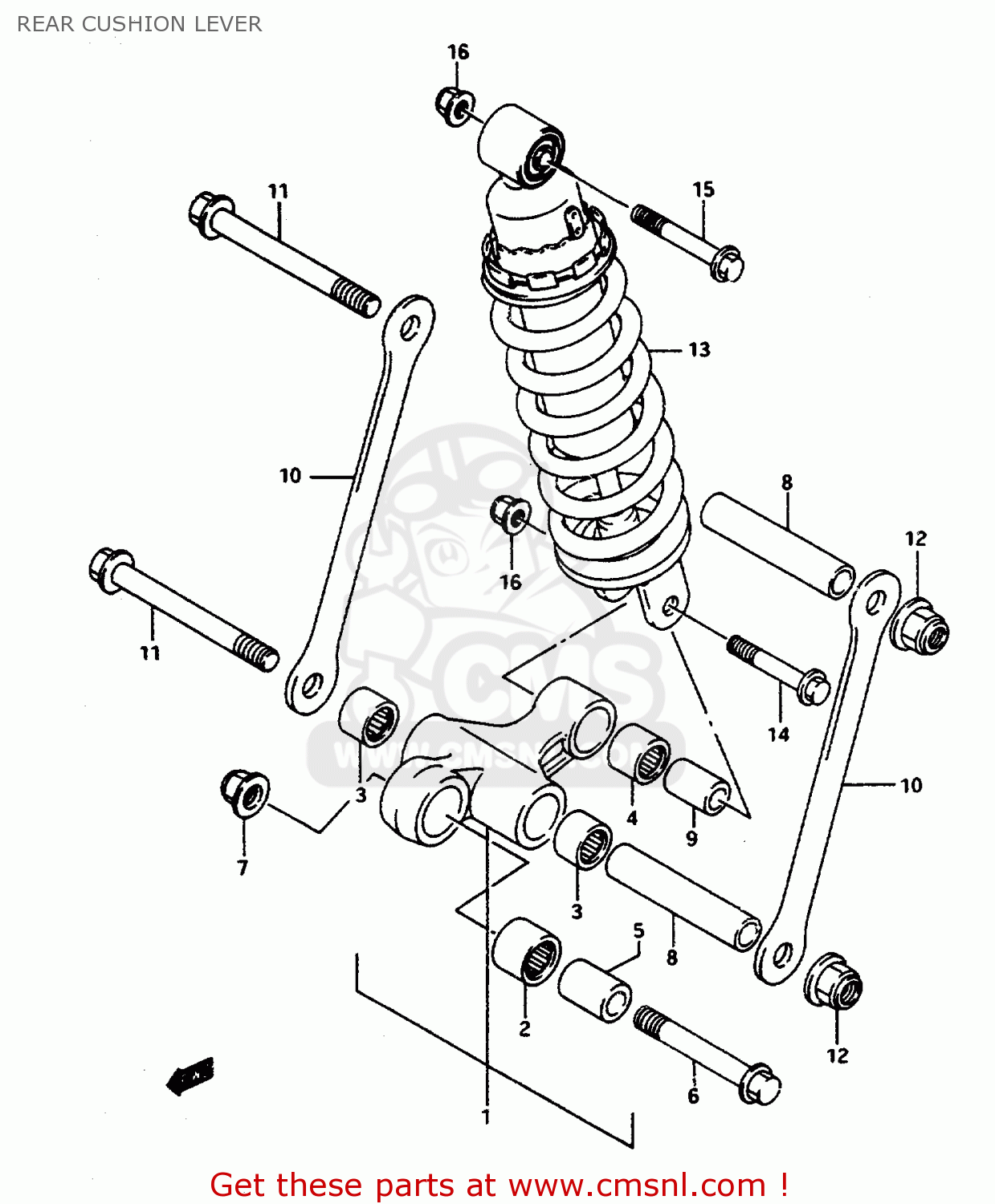

Rear cushion lever diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

REAR CUSHION LEVER RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
REAR CUSHION LEVER RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
REAR CUSHION LEVER RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
6260033871
ref: 1
LEVER SET,RR CUSHION
€ 318.00
2
0926320064
ref: 2
BEARING(20X27X26)
0926320064
€ 20.00
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
6268405C00
ref: 5
SPACER,REAR CUSHION LEVER
6268405C00
€ 17.00
6
6266842A02
ref: 6
BOLT,CUSHION LEVER FR
6266842A02
€ 7.00
7
0831931128
ref: 7
NUT 12MM
0831931128
€ 4.00
8
0918012122
ref: 8
SPACER(12X17X85)
0918012122
€ 15.00
9
6268440A10
ref: 9
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
10
6264124D10
ref: 10
ROD,RR CUSHION LEVER
€ 18.00
11
0910312037
ref: 11
BOLT(12X115)
0910312037
€ 11.00
12
0831931128
ref: 12
NUT 12MM
0831931128
€ 4.00
13-1
6210021E00
ref: 13-1
MODEL P/R/S>62100-21
ABSORBER ASSEMBLY,REAR SHOCK
€ 638.00
13-2
6210021E01
ref: 13-2
MODEL T/V>62100-21E2
ABSORBER ASSY,REAR SHOCK
€ 638.00
13-3
6210021E21
ref: 13-3
ABSORBER ASSY,RR SHOCK
€ 638.00
14
0910310027
ref: 14
BOLT(10X58)
0910310027
€ 3.00
15
0910310064
ref: 15
BOLT(10X50)
0910310064
€ 4.50
16
0831931107
ref: 16
NUT
0831931107
€ 3.00
up
