TAIL LAMP

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

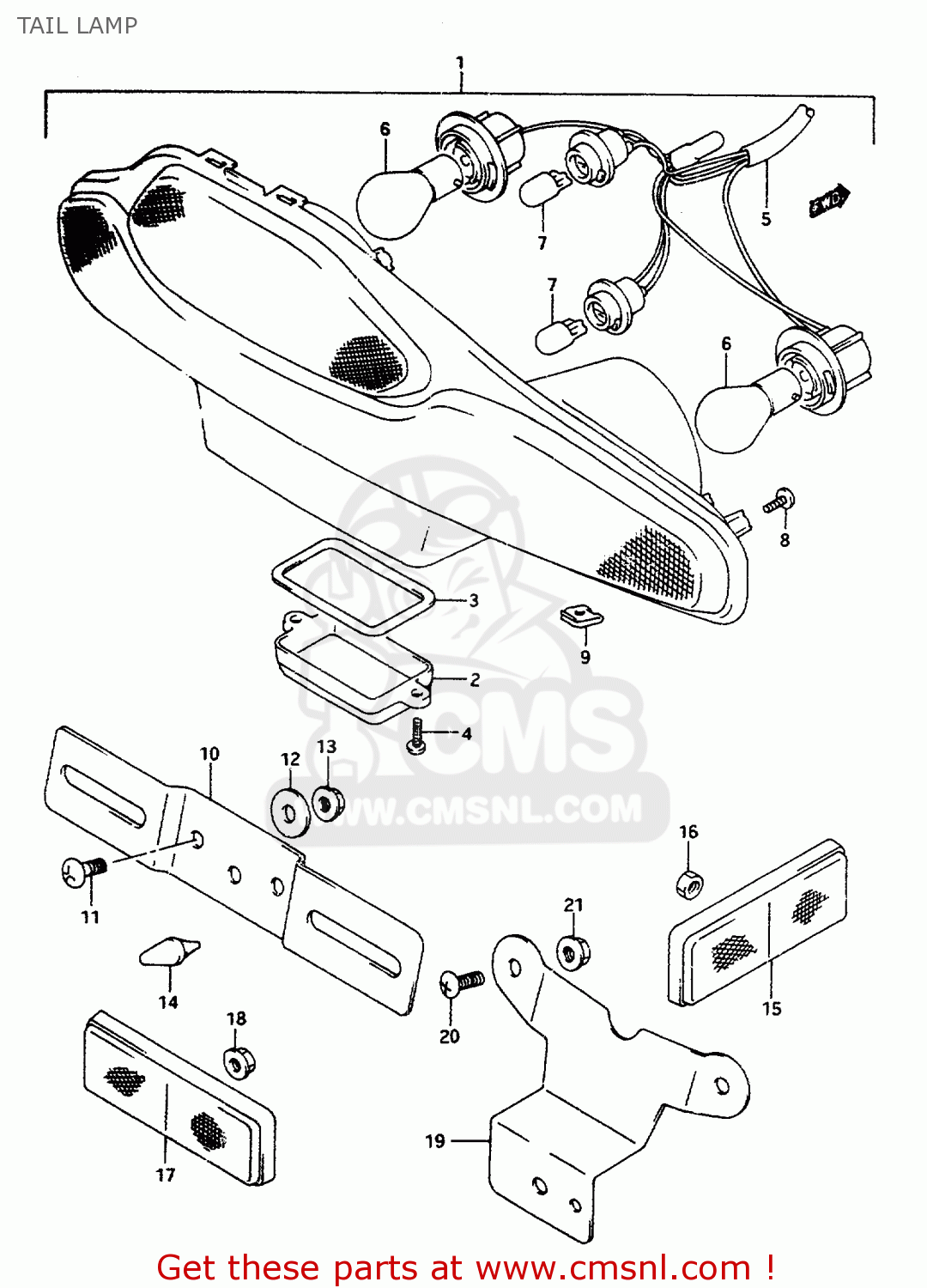

Tail lamp diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

TAIL LAMP RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
TAIL LAMP RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
TAIL LAMP RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3571021E01
ref: 1
<35710-21E00
LAMP ASSY,RR COMBINATION
3571021E01
€ 273.00
2
3591221E00
ref: 2
LENS,LICENSE LAMP
3591221E00
€ 18.50
3
3591326D00
ref: 3
GASKET (NAS)
3591326D00
€ 3.50
4
0321104123
ref: 4
SCREW
0321104123
€ 1.50
5-1
3571821E00
ref: 5-1
MODEL P/R/S
SOCKET ASSEMBLY
€ 81.00
5-2
3571821E01
ref: 5-2
MODEL T/V
SOCKET & CORD
€ 81.00
6
0947112045
ref: 6
BULB(12V21W)
0947112045
€ 5.00
7
0947112081
ref: 7
BULB(12V5W)
0947112081
€ 1.50
8-1
0354104125
ref: 8-1
MODEL P
SCREW
0354104125
€ 1.50
8-2
0354114123
ref: 8-2
MODEL R/S
SCREW
0354114123
€ 2.00
8-3
0351114123
ref: 8-3
MODEL T/V
TPG SCREW
€ 2.50
9
0914805021
ref: 9
NUT
0914805021
€ 1.50
10
3592744110
ref: 10
PLATE,RR LICENSE
3592744110
€ 22.50
11-1
0214206125
ref: 11-1
MODEL P
SCREW 6X12
0214206125
€ 2.00
11-2
0214206123
ref: 11-2
MODEL R/S/T/V
SCREW 6X12
0214206123
€ 2.00
12-1
0916006059
ref: 12-1
MODEL P/R
WASHER,COVER,FRONT
€ 2.00
12-2
0916006088
ref: 12-2
MODEL S/T/V
WASHER(6.5X20X1.6)
0916006088
€ 2.00
13-1
0831620063
ref: 13-1
MODEL P
NUT
0831620063
€ 2.00
13-2
0831000063
ref: 13-2
MODEL R/S
NUT 6MM
0831000063
€ 2.00
13-3
0831610063
ref: 13-3
MODEL T/V
NUT
0831610063
€ 2.50
14
0932106029
ref: 14
CUSHION
€ 3.00
15
3595043431
ref: 15
E18,E39
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
16-1
0831022055
ref: 16-1
MODEL P E18
NUT 5MM
0831022055
€ 2.00
16-2
0831000053
ref: 16-2
MODEL R E18,E39
NUT
€ 2.50
17
3597024D60
ref: 17
REFLECTOR ASSY,RR
3597024D60
€ 19.50
18-1
0831022055
ref: 18-1
MODEL P
NUT 5MM
0831022055
€ 2.00
18-2
0831000053
ref: 18-2
MODEL R/S/T/V
NUT
€ 2.50
18-3
0831620053
ref: 18-3
MODEL T/V E18,E22
NUT
0831620053
€ 2.00
19
3597421E00
ref: 19
BRACKET,RR REFLECTOR
3597421E00
€ 12.50
20-1
0214206125
ref: 20-1
MODEL P
SCREW 6X12
0214206125
€ 2.00
20-2
0214206123
ref: 20-2
MODEL R/S/T/V
SCREW 6X12
0214206123
€ 2.00
21-1
0831620063
ref: 21-1
MODEL P/R/S
NUT
0831620063
€ 2.00
21-2
0831610063
ref: 21-2
MODEL T/V
NUT
0831610063
€ 2.50
