CYLINDER HEAD

RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

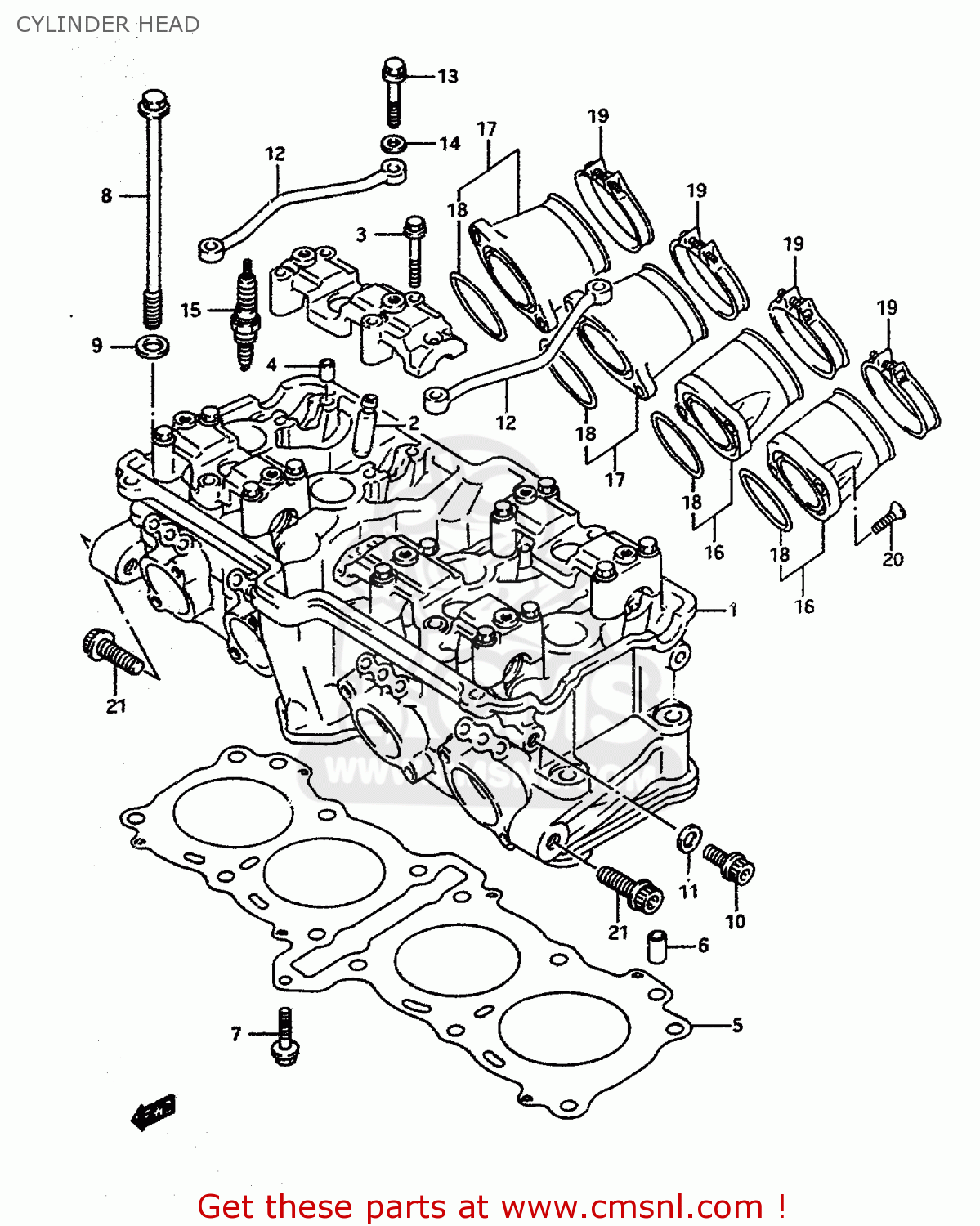

Cylinder head diagram RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)

CYLINDER HEAD RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
CYLINDER HEAD RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
CYLINDER HEAD RF600R 1997 (V) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1110021E00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
1110021E00
€ 1,312.00
1-2
1110021E10
ref: 1-2
E18,E39
HEAD ASSEMBLY,CYLINDER
€ 1,593.00
2
1111517E70
ref: 2
GUIDE,VALVE
1111517E70
€ 23.00
3-1
0910306013
ref: 3-1
MODEL P
BOLT
€ 2.50
3-2
0910306165
ref: 3-2
MODEL R/S/T/V
BOLT(6X45)
0910306165
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
1114118E01
ref: 5
GASKET,CYLINDER HEAD
1114118E01
€ 71.00
6
0421111189
ref: 6
PIN
0421111189
€ 2.00
7-1
0151706305
ref: 7-1
MODEL P
BOLT 6X30
€ 2.50
7-2
0155006303
ref: 7-2
MODEL R/S/T/V
BOLT
0155006303
€ 2.50
8
0910310272
ref: 8
BOLT(10X160)
0910310272
€ 14.00
9
0916010082
ref: 9
WASHER(10.5X19X2)
0916010082
€ 2.00
10-1
0712008165
ref: 10-1
MODEL P
BOLT
€ 3.00
10-2
0712008163
ref: 10-2
MODEL R/S/T/V
BOLT
0712008163
€ 3.00
11
0916808015
ref: 11
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
12
1113117E00
ref: 12
PIPE,CYLINDER HEAD OIL
€ 41.00
13
0910306026
ref: 13
BOLT(6X39)
0910306026
€ 2.00
14-1
0832221064
ref: 14-1
MODEL P
WASHER
0832221064
€ 2.00
14-2
0832201063
ref: 14-2
MODEL R/S/T/V
WASHER
0832201063
€ 2.00
15-1
0948200458
ref: 15-1
PLUG,SPARK(NGK CR9E)
0948200458
€ 8.50
15-2
0948200459
ref: 15-2
PLUG,SPARK(U27ESR-N)
0948200459
€ 8.50
15-3
0948200456
ref: 15-3
OPT
PLUG,SPARK(CR8E)
0948200456
€ 7.00
15-4
0948200460
ref: 15-4
OPT
PLUG,SPARK(CR10E)
0948200460
€ 8.50
15-5
0948200457
ref: 15-5
OPT
PLUG,SPARK(U24ESR-N)
0948200457
€ 7.00
15-6
0948200461
ref: 15-6
OPT
PLUG,SPARK(U31ESR-N)
€ 8.50
16-1
1310121E00
ref: 16-1
PIPE ASSY,INTAKE NO.1
1310121E00
€ 43.00
16-2
1310121E11
ref: 16-2
RF600RUS/RUT/RUV E22
PIPE,INTAKE NO.2
€ 0.00
17-1
1310221E00
ref: 17-1
PIPE ASSY,INTAKE NO.2
1310221E00
€ 48.50
17-2
1310221E11
ref: 17-2
RF600RUS/RUT/RUV E22
PIPE ASSY,INTAKE NO.2
€ 0.00
18
0928042003
ref: 18
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
19
0940252208
ref: 19
CLAMP
0940252208
€ 5.50
20-1
0912606014
ref: 20-1
MODEL P/R
SCREW(6X16)
0912606014
€ 2.00
20-2
0912006010
ref: 20-2
MODEL S/T/V
SCREW
0912006010
€ 3.00
21-1
0712010308
ref: 21-1
MODEL P
BOLT, FRAME JOINT
€ 4.00
21-2
0712010303
ref: 21-2
MODEL R/S/T/V
BOLT
€ 4.00
