CAM CHAIN
RF600RU 1997 (V) (E22)

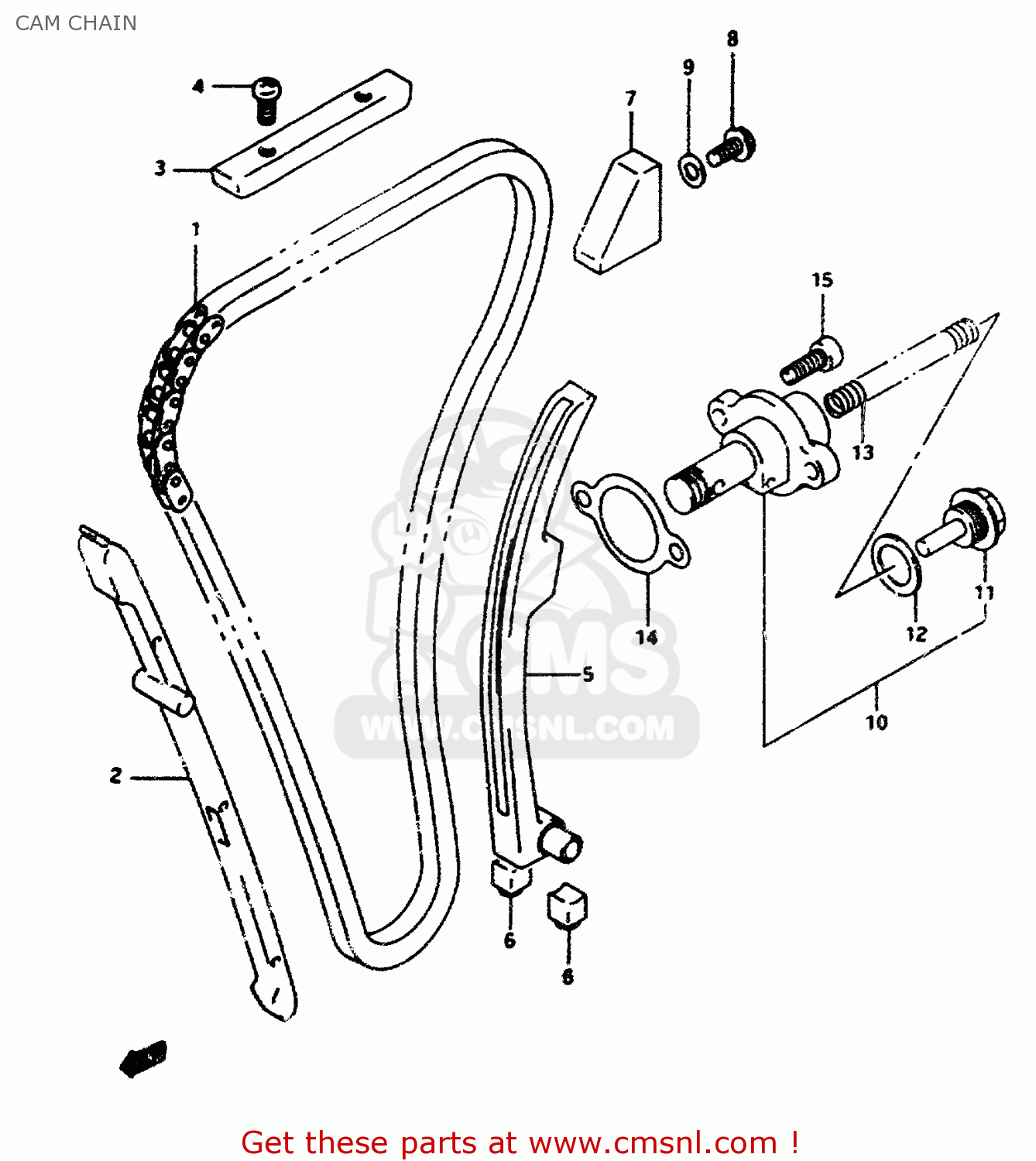

Cam chain diagram RF600RU 1997 (V) (E22)
CAM CHAIN RF600RU 1997 (V) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1276017E00
ref: 1-1
MODEL P/R
CHAIN,CAMSHAFT DRIVE
€ 115.50
1-2
1276017E01
ref: 1-2
MODEL S/T/V
CHAIN,CAMSHAFT DRIVE
€ 115.50
2
1277117E00
ref: 2
GUIDE,CAM CHAIN NO.1
€ 30.00
3
1278218E00
ref: 3
GUIDE,CAM CHAIN NO.2
€ 177.50
4-1
0211205108
ref: 4-1
MODEL P
SCREW
€ 2.00
4-2
0211205103
ref: 4-2
MODEL R/S/T/V
SCREW
€ 2.00
5-1
1281017E00
ref: 5-1
MODEL P
TENSIONER,CAM CHAIN
€ 60.00
5-2
1281017E01
ref: 5-2
MODEL R/S/T/V
TENSIONER,CAM CHAIN
€ 60.00
6
1281434200
ref: 6
CUSHION,CAM CHAIN TENSIONER
€ 6.50
7-1
1279117E00
ref: 7-1
MODEL P/R,>12791-17E
GUIDE,CAM CHAIN NO.3
€ 39.00
7-2
1279117E01
ref: 7-2
MODEL S/T/V
GUIDE,CAM CHAIN NO.3
€ 39.00
8-1
0151706125
ref: 8-1
MODEL P
BOLT 6X12
€ 2.50
8-2
0155006123
ref: 8-2
MODEL R
BOLT
€ 2.50
8-3
0155006163
ref: 8-3
MODEL S/T/V
BOLT
€ 2.50
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
€ 2.00
10
1283046E00
ref: 10
<12830-26D12
ADJUSTER ASSY,TENSIONER
€ 244.00
11
1283427A00
ref: 11
PLUG
€ 20.50
12
1283227A00
ref: 12
GASKET (NAS)
€ 5.50
13
1283326D10
ref: 13
SPRING
€ 5.00
14
1283727A10
ref: 14
GASKET,TENSIONER ADJUSTER (NAS)
€ 8.50
15-1
0910606059
ref: 15-1
MODEL P
BOLT
€ 3.00
15-2
0910606082
ref: 15-2
MODEL R/S
BOLT(6X22)
€ 3.00
15-3
0910606079
ref: 15-3
MODEL T/V
BOLT
€ 3.00
