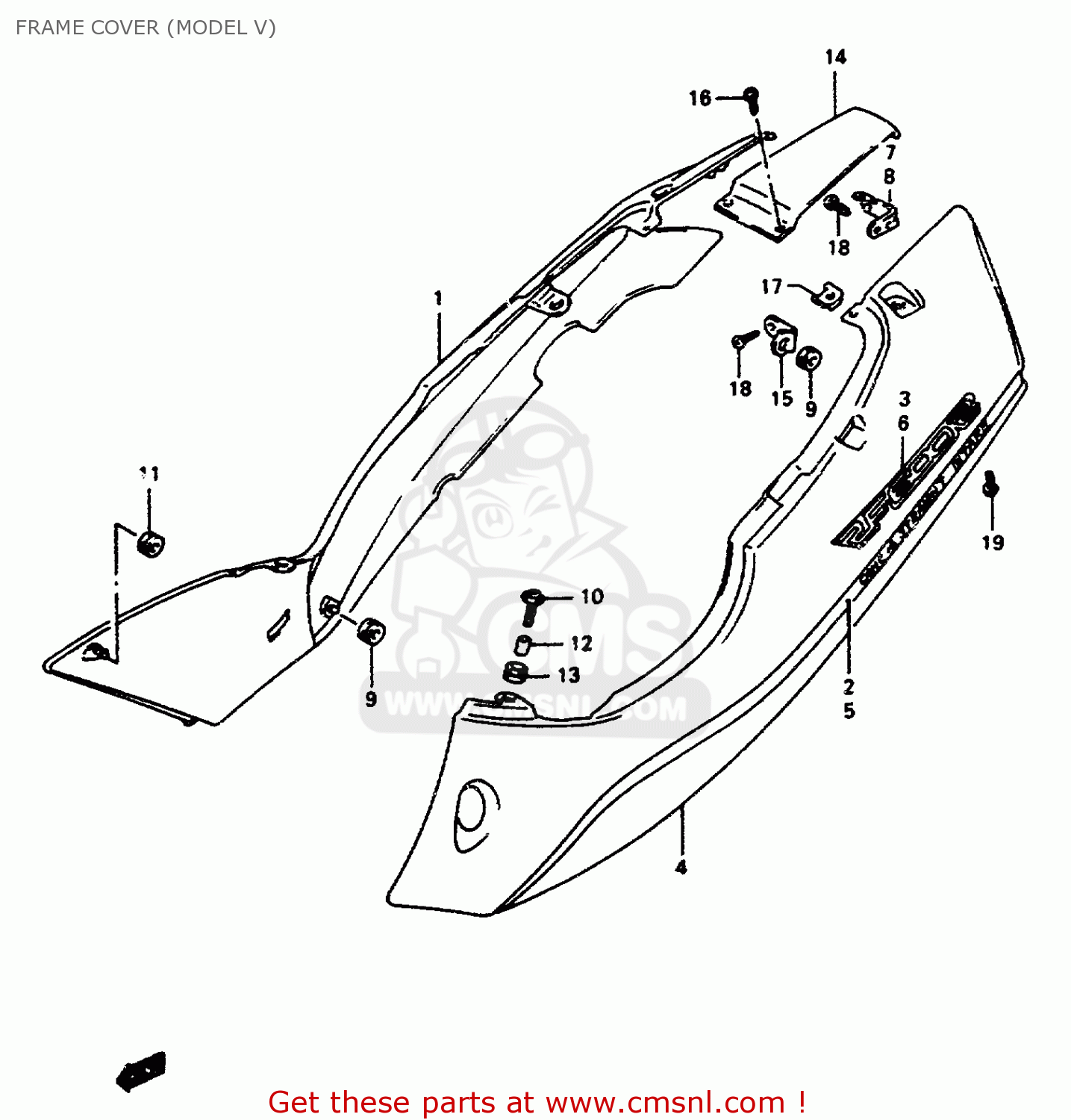

FRAME COVER (MODEL V)

ref

part #

description

quantity

1-1

4710021E30Y0V
ref: 1-1
FOR G4W

4710021E30Y0V

1-2

4710021E3028V
ref: 1-2
FOR F75

4710021E3028V

2

6813021E00E8C
ref: 2

TAPE SET,FRAME COVER STRIPE,R

€ 87.00

3

6813121E30Y2M
ref: 3

EMBLEM,FRAME COVER

€ 19.00

4-1

4720021E30Y0V
ref: 4-1
FOR G4W

COVER,FRAME LH (BLUE)

€ 375.00

4-2

4720021E3028V
ref: 4-2
FOR F75

COVER,FRAME LH (RED)

€ 422.50

5

6814021E00E8C
ref: 5

TAPE SET,FRAME COVER S

€ 88.00

6

6813121E30Y2M
ref: 6

EMBLEM,FRAME COVER

€ 19.00

7

4719121E00
ref: 7

BRACKET,FRAME COVER,R

€ 4.50

8

4719221E00
ref: 8

BRACKET,FRAME COVER,L

€ 6.00

9

0932008018
ref: 9

CUSHION

€ 4.00

10

0911606131
ref: 10

BOLT(6X25)

€ 2.00

11

4716121E00
ref: 11

CUSHION,FRAME COVER FR

€ 7.50

12

0918006265
ref: 12

SPACER(6.5X9X11)

€ 4.50

13

0932008061
ref: 13

CUSHION

€ 4.00

14-1

4731121E00Y0V
ref: 14-1

COVER,FRAME CENTER (GREEN)

€ 45.50

14-2

4731121E0028V
ref: 14-2

COVER,FRAME CTR

€ 42.50

15

4719321E00
ref: 15

BRACKET,RR COMBINATION LAMP

€ 6.50

16

0214205123
ref: 16

SCREW 5X12

€ 1.50

17

0934805021
ref: 17

NUT

€ 0.00

18

0354114123
ref: 18

SCREW

€ 2.00

19

0214205123
ref: 19

SCREW 5X12

€ 1.50

4-3

4720021E0034R
ref: 4-3
MODEL R

COVER ASSEMBLY,FRAME,LEFT

€ 451.50

4-4

4720021E001ZV
ref: 4-4
MODEL S

COVER ASSY,FRAME,L(GREEN)

€ 389.00

4-5

4720021E0028V
ref: 4-5
MODEL S

COVER ASSEMBLY,FRAME,LEFT

€ 422.50

4-6

4720021E00163
ref: 4-6
MODEL T FOR E6R

COVER ASSY,FRAME,L(YELLOW)

€ 389.00

4-7

4720021E003AX
ref: 4-7
MODEL T FOR E6S

COVER ASSY,FRAME,L (RED)

€ 389.00

5-1

6814021E00B7G
ref: 5-1
FOR 1TY

TAPE SET,FRAME COVER S

€ 109.00

5-2

6814021E00C6A
ref: 5-2
FOR 34R

TAPE SET,FRAME COVER STRIPE,L

€ 92.50

5-3

6814021E00B7H
ref: 5-3
FOR 1UJ

TAPE SET,LH

€ 109.00

5-4

6814021E00D3M
ref: 5-4
FOR 1ZV

TAPE SET,FRAME COVER S

€ 131.50

5-5

6814021E00D3L
ref: 5-5
FOR 28V

TAPE SET,FRAME COVER STRIPE,L

€ 92.50

5-6

6814021E00E8C
ref: 5-6
FOR 163,3AX

TAPE SET,FRAME COVER S

€ 88.00

6-1

6813121E00B8S
ref: 6-1
FOR 1TY

EMBLEM,FRAME COVER

€ 46.00

6-2

6813121E00C6B
ref: 6-2
FOR 34R

EMBLEM,FRAME COVER

€ 35.00

6-3

6813121E00B8T
ref: 6-3
FOR 1UJ

EMBLEM

€ 35.00

6-4

6813121E00D3R
ref: 6-4
FOR 1ZV

EMBLEM,FRAME COVER

€ 35.00

6-5

6813121E00E8D
ref: 6-5
FOR 163

EMBLEM,FRAME COVER

€ 34.00

6-6

6813121E00A02
ref: 6-6
FOR 28V

EMBLEM,FRAME COVER

€ 35.50

6-7

6813121E00E8E
ref: 6-7
FOR 3AX

EMBLEM,FRAME COVER

€ 34.50

7-1

4719121E00
ref: 7-1

BRACKET,FRAME COVER,R

€ 4.50

7-2

4719221E00
ref: 7-2

BRACKET,FRAME COVER,L

€ 6.00

8

0932008018
ref: 8

CUSHION

€ 4.00

9-1

0913606102
ref: 9-1
MODEL P/R

SCREW

€ 2.50

9-2

0911606131
ref: 9-2
MODEL S/T

BOLT(6X25)

€ 2.00

10

4716121E00
ref: 10

CUSHION,FRAME COVER FR

€ 7.50

11

0918006225
ref: 11

SPACER

€ 4.50

12

0932008061
ref: 12

CUSHION

€ 4.00

13-1

4731121E001TY
ref: 13-1
MODEL P/R

COVER,FRAME CTR

€ 44.50

13-2

4731121E001UJ
ref: 13-2
MODEL P

COVER,FRAME CTR

€ 47.50

13-3

4731121E0034R
ref: 13-3
MODEL R

COVER,FRAME,CENTER

€ 57.00

13-4

4731121E001ZV
ref: 13-4
MODEL S

COVER,FRAME CTR

€ 45.50

13-5

4731121E0028V
ref: 13-5
MODEL S/T

COVER,FRAME CTR

€ 42.50

13-6

4731121E00163
ref: 13-6
MODEL T

COVER,FRAME CTR

€ 43.50

14

4719321E00
ref: 14

BRACKET,RR COMBINATION LAMP

€ 6.50

15-1

0214215125
ref: 15-1
MODEL P

SCREW

€ 2.00

15-2

0214205123
ref: 15-2
MODEL R/S/T

SCREW 5X12

€ 1.50

16

0914805021
ref: 16

NUT

€ 1.50

17-1

0354104125
ref: 17-1
MODEL P

SCREW

€ 1.50

17-2

0354114123
ref: 17-2
MODEL R/S/T

SCREW

€ 2.00

18-1

0214215125
ref: 18-1
MODEL P

SCREW

€ 2.00

18-2

0214205123
ref: 18-2
MODEL R/S/T

SCREW 5X12

€ 1.50
