CLUTCH (MODEL S/T/V)
RF600RU 1997 (V) (E22)

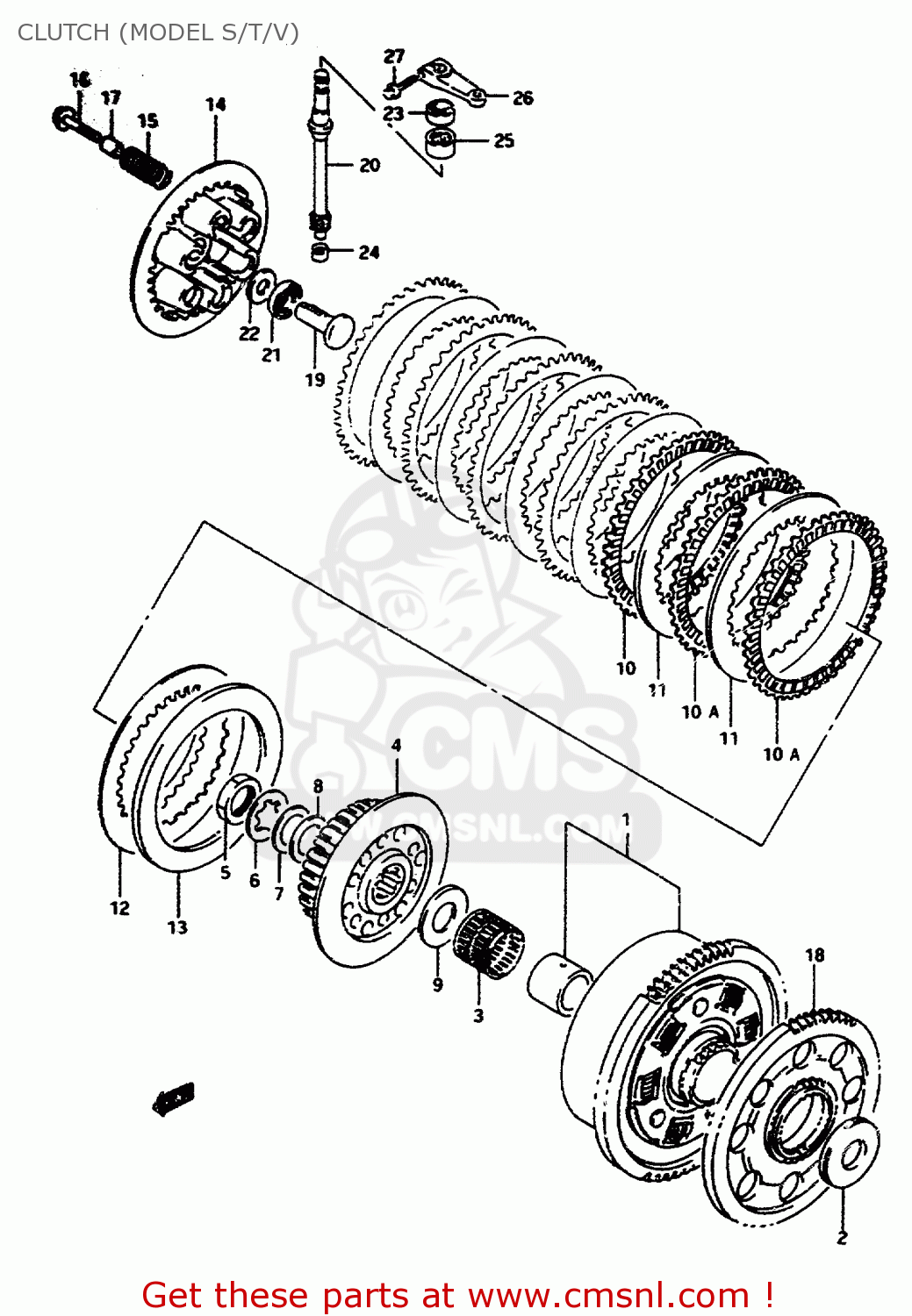

Clutch (model s/t/v) diagram RF600RU 1997 (V) (E22)
CLUTCH (MODEL S/T/V) RF600RU 1997 (V) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2120021841
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141017E10
ref: 4
HUB,CLUTCH SLEEVE
€ 111.00
5
0914024012
ref: 5
NUT
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
€ 7.50
7
0916425001
ref: 7
WASHER
€ 4.50
8
0821125441
ref: 8
WASHER
€ 2.00
9
0916025056
ref: 9
WASHER(25X50X2.5)
€ 9.50
10
2144117E10
ref: 10
PLATE,CLUTCH DRIVE
€ 22.00
10A
2144117E21
ref: 10A
<21441-17E31
PLATE,CLUTCH DRIVE (NAS)
€ 22.00
11
2145117E00
ref: 11
PLATE,CLUTCH DRIVEN
€ 9.00
12
2145117C00
ref: 12
PLATE,CLUTCH DRIVEN (NAS)
€ 9.50
13
2144321E00
ref: 13
SPACER,CLUTCH PLATE
€ 21.50
14
2146217E01
ref: 14
DISC,CLUTCH PRESSURE
€ 76.00
15
0944020020
ref: 15
SPRING
€ 8.50
16
0911606161
ref: 16
BOLT(6X40)
€ 3.50
17
0918006196
ref: 17
SPACER(6.4X10X28)
€ 3.00
18
2272121E01
ref: 18
GEAR,GENERATOR DRIVE
€ 192.50
19
2316521E00
ref: 19
RACK,CLUTCH RELEASE
€ 82.00
20
2326121E00
ref: 20
PINION,CLUTCH RELEASE
€ 40.50
21
0926315003
ref: 21
BEARING(15X28X2)
€ 7.00
22
0916015045
ref: 22
WASHER(15.5X28X1)
€ 4.00
23
0928512002
ref: 23
OIL SEAL
€ 7.00
24
0926310013
ref: 24
BEARING 10X14X10
€ 12.00
25
0926315012
ref: 25
BEARING(15X22X12)
€ 11.50
26
2327117C00
ref: 26
ARM,CLUTCH RELEASE
€ 45.50
27
0150006203
ref: 27
BOLT
€ 2.00
26
2327117C00
ref: 26
ARM,CLUTCH RELEASE
€ 45.50
27-1
0154706207
ref: 27-1
MODEL P
BOLT
€ 2.50
27-2
0150006203
ref: 27-2
MODEL R
BOLT
€ 2.00
