OIL PAN-OIL PUMP
RF600RU 1997 (V) (E22)

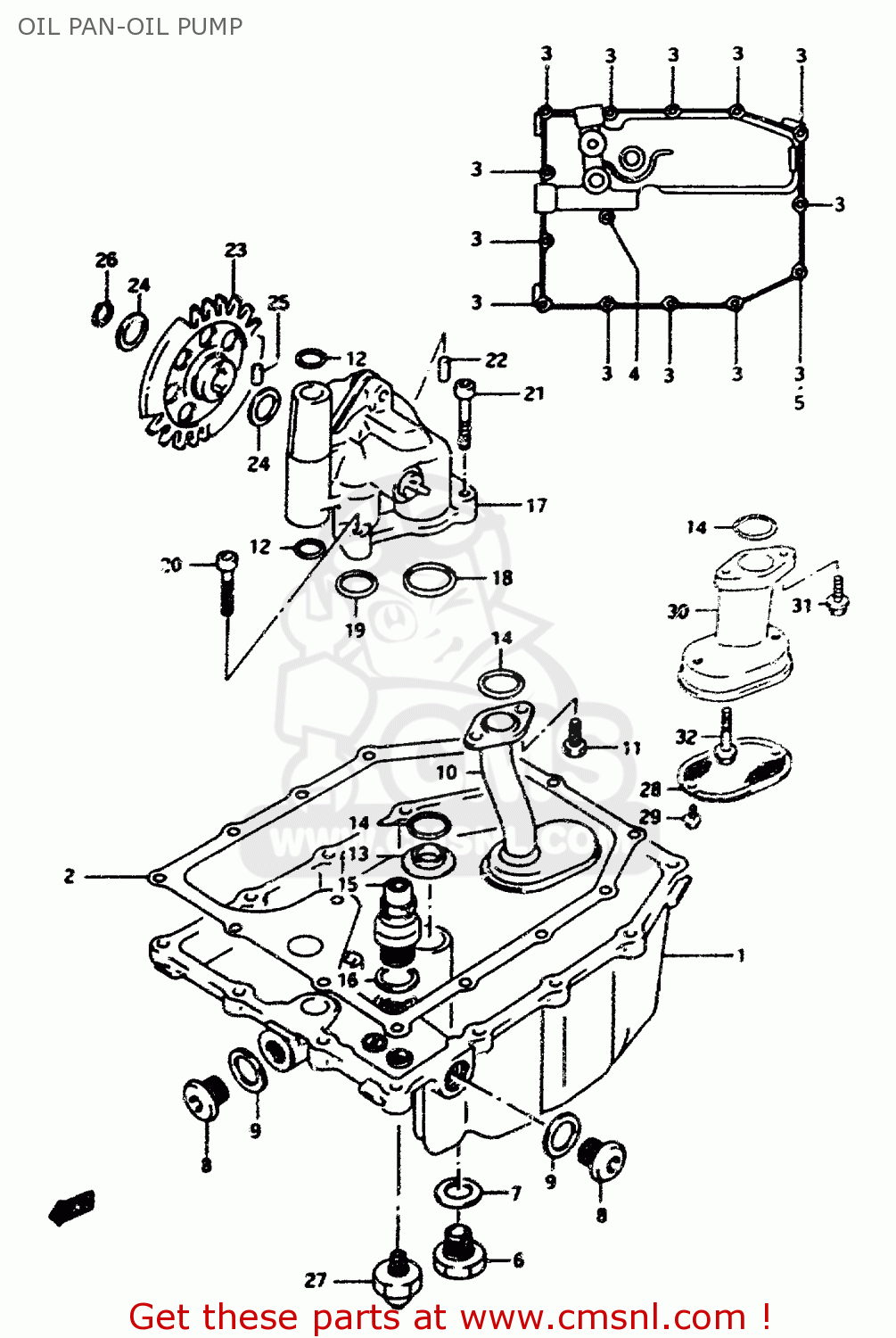

Oil pan-oil pump diagram RF600RU 1997 (V) (E22)
OIL PAN-OIL PUMP RF600RU 1997 (V) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151117E00
ref: 1-1
MODEL P/R
PAN,OIL
€ 267.00
1-2
1151146E02
ref: 1-2
MODEL S/T/V
PAN,OIL
€ 539.00
2
1148917E01
ref: 2
<11489-17E00
GASKET,OIL PAN (NAS)
€ 18.50
3-1
0154706257
ref: 3-1
MODEL P
BOLT
€ 2.50
3-2
0154706253
ref: 3-2
MODEL R/S/T/V
SCREW
€ 2.50
4-1
0154706307
ref: 4-1
MODEL P
BOLT
€ 2.50
4-2
0154706303
ref: 4-2
MODEL R
BOLT,G/S SWITC
€ 3.00
4-3
0154706353
ref: 4-3
MODEL S/T/V
BOLT
€ 3.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6
0924714001
ref: 6
PLUG
€ 5.00
7
0916814002
ref: 7
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
8
0924816010
ref: 8
PLUG
€ 4.50
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
€ 2.00
10
1652017E00
ref: 10
MODEL P/R
STRAINER COMP,ENGINE OIL
€ 46.50
11
0912806039
ref: 11
MODEL P/R
SCREW
€ 2.00
12
0928012012
ref: 12
O RING(D:2.4,ID:11.8)
€ 5.00
13
1652927A01
ref: 13
GASKET,OIL OUTLET (NAS)
€ 2.00
14
0928018009
ref: 14
O RING(D:3.2,ID:17.8)
€ 8.00
15-1
1644017C00
ref: 15-1
MODEL P/R/S
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
15-2
1644017C01
ref: 15-2
MODEL T/V
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
16
0916816002
ref: 16
GASKET(16X22X2) (NAS)
€ 2.00
17
1640017E00
ref: 17
PUMP ASSY,ENGINE OIL
€ 277.50
18
0928026005
ref: 18
O RING(D:2.4,ID:26.2)
€ 2.50
19
0928018009
ref: 19
O RING(D:3.2,ID:17.8)
€ 8.00
20
0713006303
ref: 20
BOLT
€ 3.00
21
0713006353
ref: 21
BOLT
€ 3.50
22
0421109129
ref: 22
PIN
€ 2.00
23
1633219C00
ref: 23
GEAR,OIL PUMP DRIVEN(NT:37)
€ 60.00
24
0822112205
ref: 24
SHIM
€ 1.50
25
0926105006
ref: 25
PIN(5X18)
€ 1.50
26
0833131126
ref: 26
CIRCLIP,12 MM
€ 2.00
27
3782033D00
ref: 27
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
28
1652038A00
ref: 28
MODEL S/T/V
STRAINER,ENGINE OIL
€ 7.50
29
0158005123
ref: 29
MODEL S/T/V
BOLT
€ 2.00
30
1652546E01
ref: 30
MODEL S/T/V
PROTECTOR,OIL STRAINER
€ 26.50
31
0155006203
ref: 31
MODEL S/T/V
BOLT
€ 2.50
32
0155006553
ref: 32
MODEL S/T/V
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
