HEADLAMP (MODEL T/V)

RF600RU 1997 (V) (E22)

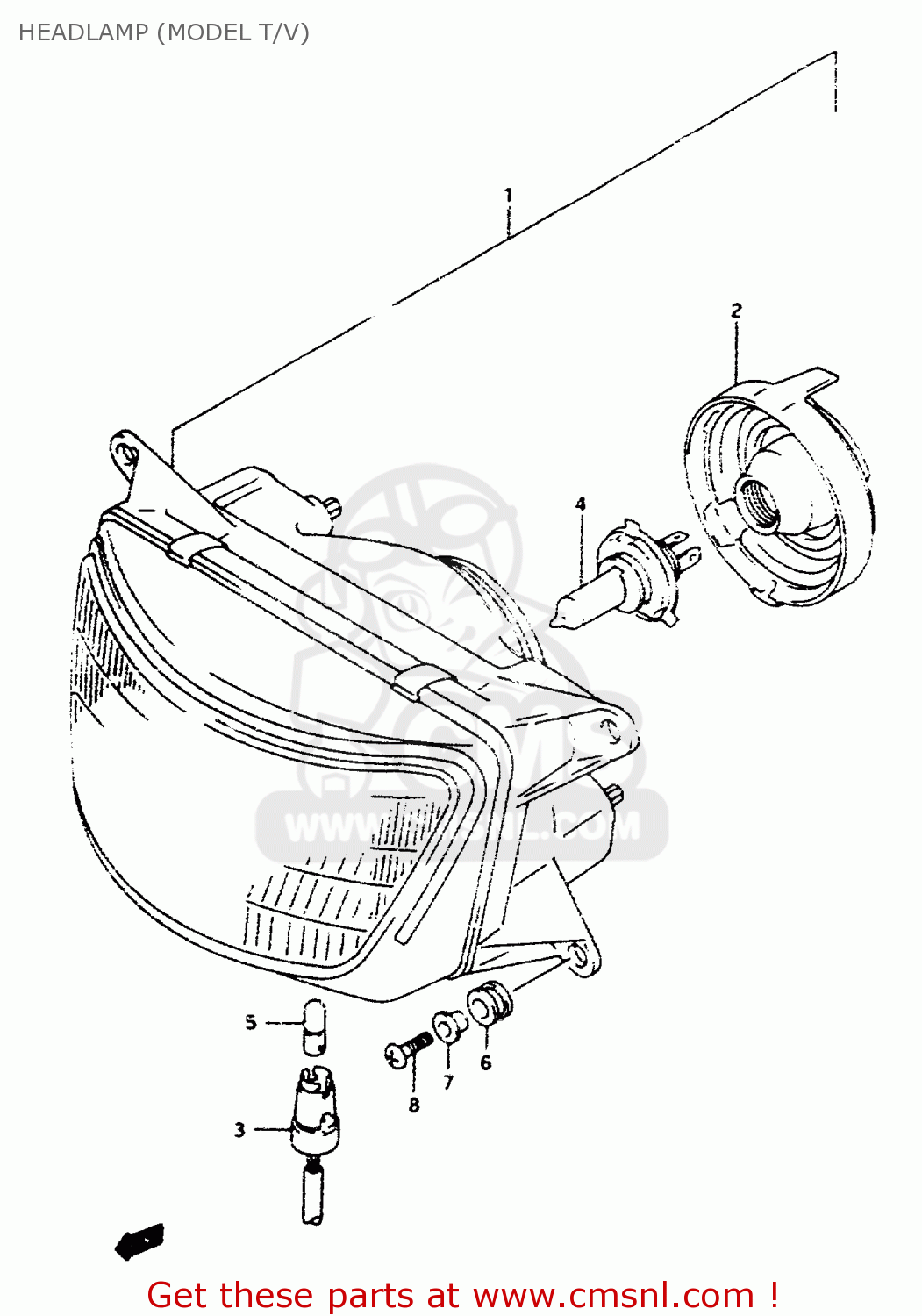

Headlamp (model t/v) diagram RF600RU 1997 (V) (E22)

HEADLAMP (MODEL T/V) RF600RU 1997 (V) (E22)

HEADLAMP (MODEL T/V) RF600RU 1997 (V) (E22)

prices are in EUR

ref

part #

description

quantity

1-1

3510021E20999
ref: 1-1

HEADLAMP ASSY

€ 310.00

1-2

3510021E50999
ref: 1-2
E4,E18,E22,E25,E34,E

HEADLAMP ASSY

€ 334.50

1-3

3510021E00999
ref: 1-3
E24

HEADLAMP ASSY

€ 273.00

2

3517348B00
ref: 2

COVER,SOCKET

€ 10.50

3

3611821E50
ref: 3

CORD ASSY

€ 10.00

4

0947112060
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112063
ref: 5

BULB(12V4W)

€ 6.00

6

0932007014
ref: 6

CUSHION

€ 3.50

7

0916905018
ref: 7

WASHER

€ 2.50

8

0211205163
ref: 8

SCREW

€ 2.00

9

3595014A00
ref: 9
E18,E39

REFLECTOR,REFLEX FR

€ 15.00

10

3595421E00
ref: 10
E18,E39

BRACKET

€ 0.00

11-1

0836115055
ref: 11-1
MODEL P E18

NUT

€ 2.50

11-2

0831000053
ref: 11-2
MODEL R E18,E39

NUT

€ 2.50
