REAR CUSHION LEVER
RF600RU 1997 (V) (E22)

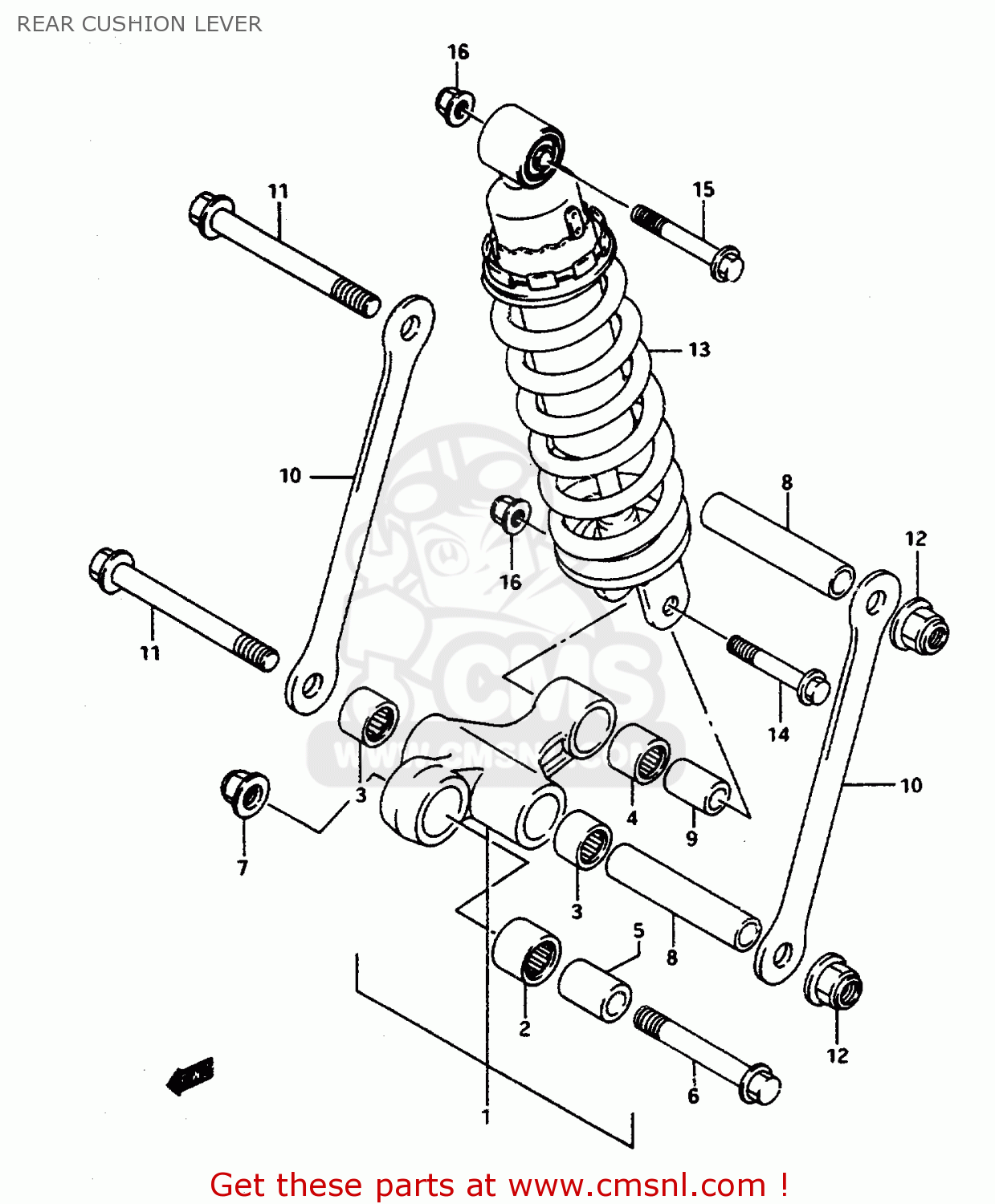

Rear cushion lever diagram RF600RU 1997 (V) (E22)
REAR CUSHION LEVER RF600RU 1997 (V) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6260033871
ref: 1
LEVER SET,RR CUSHION
€ 318.00
2
0926320064
ref: 2
BEARING(20X27X26)
€ 20.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268405C00
ref: 5
SPACER,REAR CUSHION LEVER
€ 17.00
6
6266842A02
ref: 6
BOLT,CUSHION LEVER FR
€ 7.00
7
0831931128
ref: 7
NUT 12MM
€ 4.00
8
0918012122
ref: 8
SPACER(12X17X85)
€ 15.00
9
6268440A10
ref: 9
SPACER,RR CUSHION LEVER
€ 11.50
10
6264124D10
ref: 10
ROD,RR CUSHION LEVER
€ 18.00
11
0910312037
ref: 11
BOLT(12X115)
€ 11.00
12
0831931128
ref: 12
NUT 12MM
€ 4.00
13-1
6210021E00
ref: 13-1
MODEL P/R/S>62100-21
ABSORBER ASSEMBLY,REAR SHOCK
€ 638.00
13-2
6210021E01
ref: 13-2
MODEL T/V>62100-21E2
ABSORBER ASSY,REAR SHOCK
€ 638.00
13-3
6210021E21
ref: 13-3
ABSORBER ASSY,RR SHOCK
€ 638.00
14
0910310027
ref: 14
BOLT(10X58)
€ 3.00
15
0910310064
ref: 15
BOLT(10X50)
€ 4.50
16
0831931107
ref: 16
NUT
€ 3.00
