AIR CLEANER

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

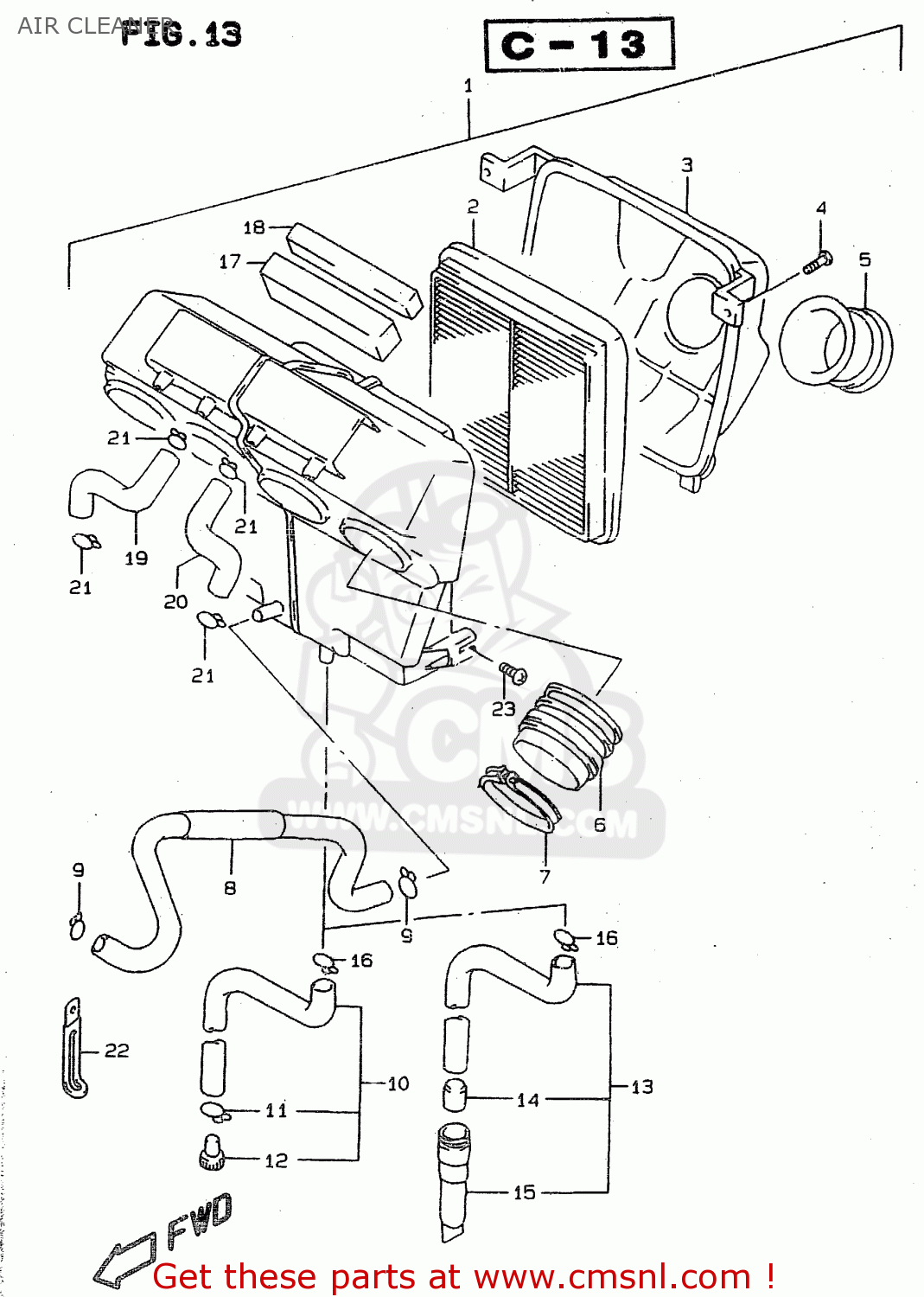

Air cleaner diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

AIR CLEANER RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

AIR CLEANER RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1370031E01
ref: 1-1
MODEL R/S

CLEANER ASSEMBLY,AIR

€ 317.00

1-2

1370031E02
ref: 1-2
MODEL T/V/W

CLEANER ASSY,AIR

€ 317.00

1-3

1370031E11
ref: 1-3
E18, E39, MODEL R/S

CLEANER ASSY, AIR

€ 0.00

1-4

1370031E12
ref: 1-4
E18, E39, MODEL T/V/

CLEANER ASSY, AIR

€ 0.00

2

1378021E00
ref: 2

FILTER,AIR

€ 33.50

3

1374021E00
ref: 3

CAP,AIR CLEANER

€ 39.50

4

0214205167
ref: 4

SCREW

€ 1.50

5-1

1389117E00
ref: 5-1

TUBE,INLET

€ 22.50

5-2

1389131E10
ref: 5-2
E18, E39

TUBE,INLET

€ 22.00

6

1388131E00
ref: 6

TUBE,OUTLET

€ 22.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

1385021E00
ref: 8

TUBE,BREATHER

€ 38.50

9

0940116401
ref: 9
<-13824-48B10

CLIP

€ 3.00

10

1387021458
ref: 10
MODEL R

TUBE,DRAIN

€ 23.50

11

0940111101
ref: 11
MODEL R

CLIP

€ 2.50

12

1387738A00
ref: 12
MODEL R

STOPPER,DRAIN

€ 3.50

13

1387021628
ref: 13
MODEL S/T/V/W

TUBE,DRAIN

€ 23.50

14

1378900020
ref: 14
MODEL S/T/V/W

FILTER,DRAIN

€ 2.00

15

1387200A00010
ref: 15
MODEL S/T/V/W

CAP,DRAIN

€ 7.50

16

0940113409
ref: 16

CLIP

€ 2.50

17

1378321E01
ref: 17

FILTER,CARB AIR

€ 10.50

18

1378421E01
ref: 18

FILTER,AIR NO.2

€ 9.50

19

1385521E00
ref: 19

TUBE,CARBURETOR AIR,R

€ 16.50

20

1385621E00
ref: 20

TUBE,CARBURETOR AIR,LEFT

€ 18.00

21

0940116401
ref: 21
<-13824-48B10

CLIP

€ 3.00

22

0940406433
ref: 22

CLAMP(L:80)

€ 3.00

23

0214206123
ref: 23

SCREW 6X12

€ 2.00
