HANDLE LEVER

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

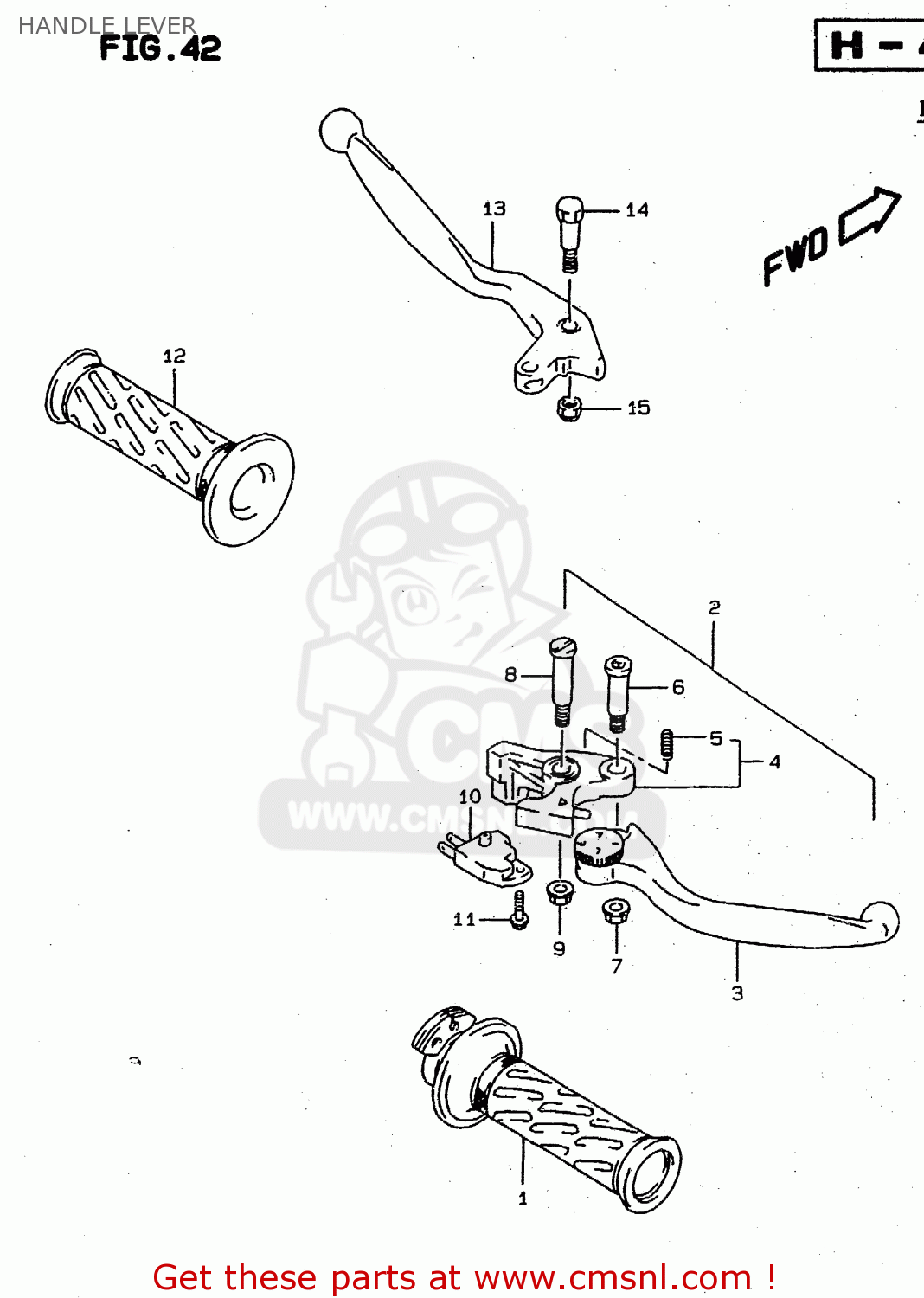

Handle lever diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

HANDLE LEVER RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

HANDLE LEVER RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

5711022D01
ref: 1-1
MODEL R/S/T

GRIP,THROTTLE

€ 22.50

1-2

5711022D02
ref: 1-2
MODEL V/W

GRIP,THROTTLE

€ 22.50

2-1

5730040C01
ref: 2-1
MODEL R/S/T/V

LEVER ASSEMBLY,BRAKE

€ 75.00

2-2

5730040C10
ref: 2-2
MODEL W

LEVER ASSY,BRAKE

€ 75.00

3

5742032C00
ref: 3

LEVER,ADJUST

€ 39.50

4

5743040C00
ref: 4

KNOCKER

€ 51.00

5

5743832C00
ref: 5

SPRING

€ 4.00

6

5743732C01
ref: 6

BOLT,LEVER

€ 6.50

7

0831931063
ref: 7

NUT

€ 2.50

8

5743117C00
ref: 8

BOLT,LEVER PIVOT

€ 8.00

9

0831610063
ref: 9

NUT

€ 2.50

10

5746017C00
ref: 10

SWITCH ASSEMBLY,STOP

€ 32.50

11

5746517C00
ref: 11

SCREW

€ 1.50

12-1

5721122D00
ref: 12-1
MODEL R/S/T

GRIP,LEFT

€ 11.50

12-2

5721122D01
ref: 12-2
MODEL V/W

GRIP,LEFT

€ 11.50

13

5762138A02
ref: 13

LEVER,CLUTCH (SILVER)

€ 31.50

14

5743105A00
ref: 14

BOLT,LEVER

€ 8.50

15

0831921063
ref: 15

NUT

€ 2.50
