Buy Suzuki RF Parts Online


HANDLE BAR

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

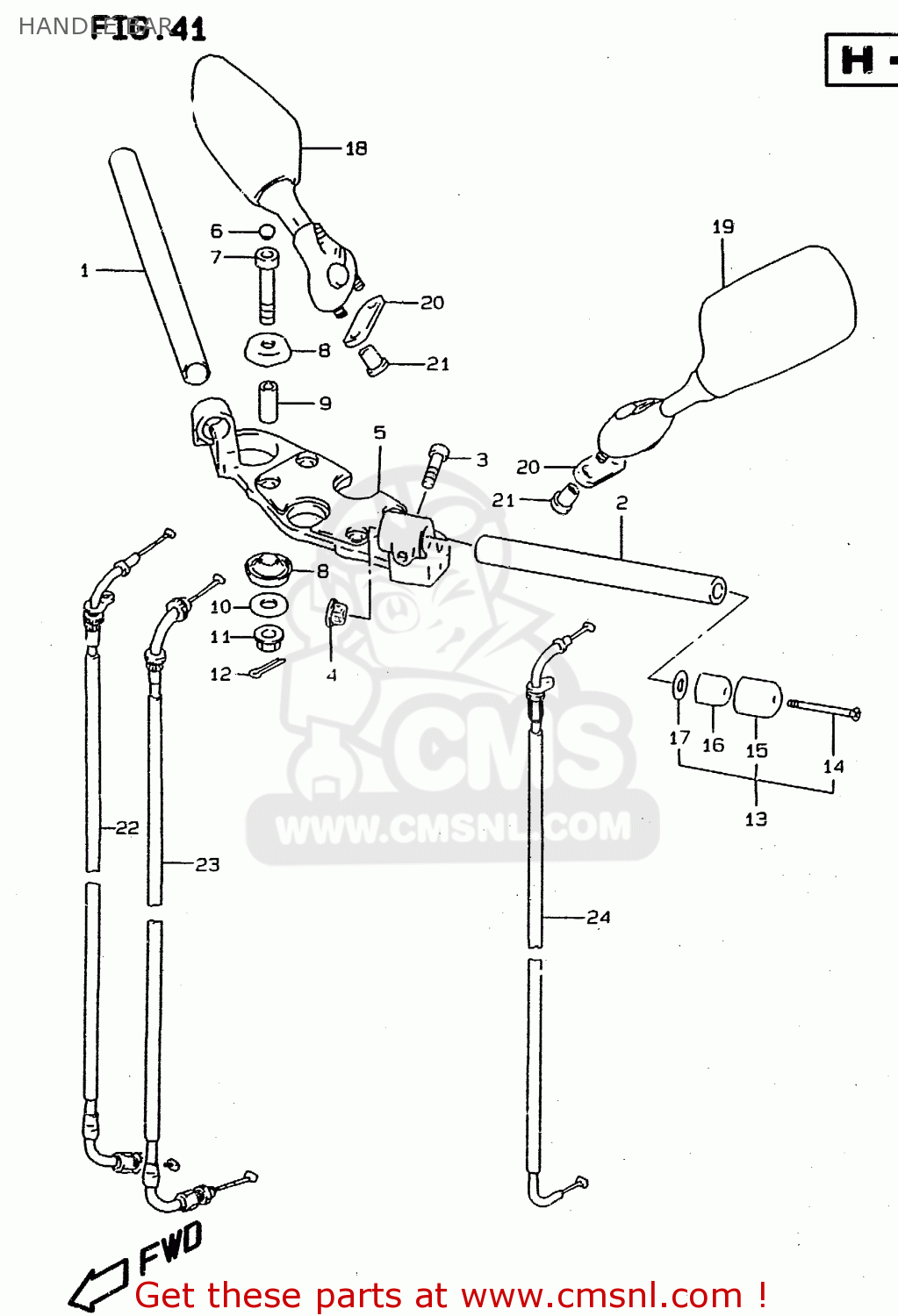

Handle bar diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

HANDLE BAR RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)
HANDLE BAR RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)
HANDLE BAR RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5611031E10
ref: 1-1
MODEL R/S
HANDLEBAR
5611031E10
€ 38.00
1-2
5611031E11
ref: 1-2
MODEL T/V/W
HANDLEBAR,R
5611031E11
€ 38.00
2-1
5615031E10
ref: 2-1
MODEL R/S
HANDLEBAR,LEFT
€ 37.50
2-2
5615031E11
ref: 2-2
MODEL T/V/W
HANDLEBAR,L
5615031E11
€ 37.50
3
0713008307
ref: 3
BOLT
0713008307
€ 4.50
4
5721533400
ref: 4
CAP,HANDLEBAR
5721533400
€ 4.00
5
5621131E00
ref: 5
HOLDER,HANDLEBAR
€ 691.00
6
0925006011
ref: 6
CAP(OD:11)
0925006011
€ 2.50
7
0910610055
ref: 7
BOLT(10X66)
0910610055
€ 8.00
8
5624001D00
ref: 8
CUSHION,UPR BRACKET
5624001D00
€ 23.00
9
5624301D00
ref: 9
SPACER,STEERING STEM HEAD
5624301D00
€ 6.00
10
0916010094
ref: 10
WASHER(10.5X30X3.2)
0916010094
€ 3.50
11
0831610103
ref: 11
NUT
0831610103
€ 2.00
12
0411120208
ref: 12
PIN 20X20
0411120208
€ 1.50
13
5620001831
ref: 13
BALANCER SET,HANDLEBAR
5620001831
€ 55.00
14
0212206603
ref: 14
SCREW
0212206603
€ 3.00
15-1
5627420C00
ref: 15-1
->56274-49310
CAP,BALANCER
5627420C00
€ 141.00
15-2
5627449310
ref: 15-2
CAP,HANDLE BALANCER
5627449310
€ 141.00
16
5627149310
ref: 16
BALANCER,HANDLEBAR
5627149310
€ 15.50
17
5627534401
ref: 17
SPACER,BALANCER
5627534401
€ 2.50
18
5650031E00
ref: 18
MIRROR ASSY,RR VIEW,R
5650031E00
€ 104.50
19
5660031E00
ref: 19
MIRROR ASSY,RR VIEW,L
5660031E00
€ 111.00
20
9457641C00
ref: 20
CUSHION,RR VIEW MIRRORR
9457641C00
€ 12.00
21
5661912C00
ref: 21
NUT,RR VIEW MIRROR
5661912C00
€ 8.00
22-1
5830031E00
ref: 22-1
MODEL R/S
CABLE ASSEMBLY,THROTTLE NO
5830031E00
€ 50.00
22-2
5830031E01
ref: 22-2
MODEL T/V/W
CABLE ASSY,THROTTLE NO.1
5830031E01
€ 50.00
23-1
5830031E10
ref: 23-1
MODEL R/S
CABLE ASSEMBLY,THROTTLE NO
5830031E10
€ 41.00
23-2
5830031E11
ref: 23-2
MODEL T/V/W
CABLE ASSY,THROTTLE NO.2
5830031E11
€ 41.00
24
5841021E00
ref: 24
CABLE COMP,STARTER
5841021E00
€ 23.00
