CARBURETOR FITTINGS

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

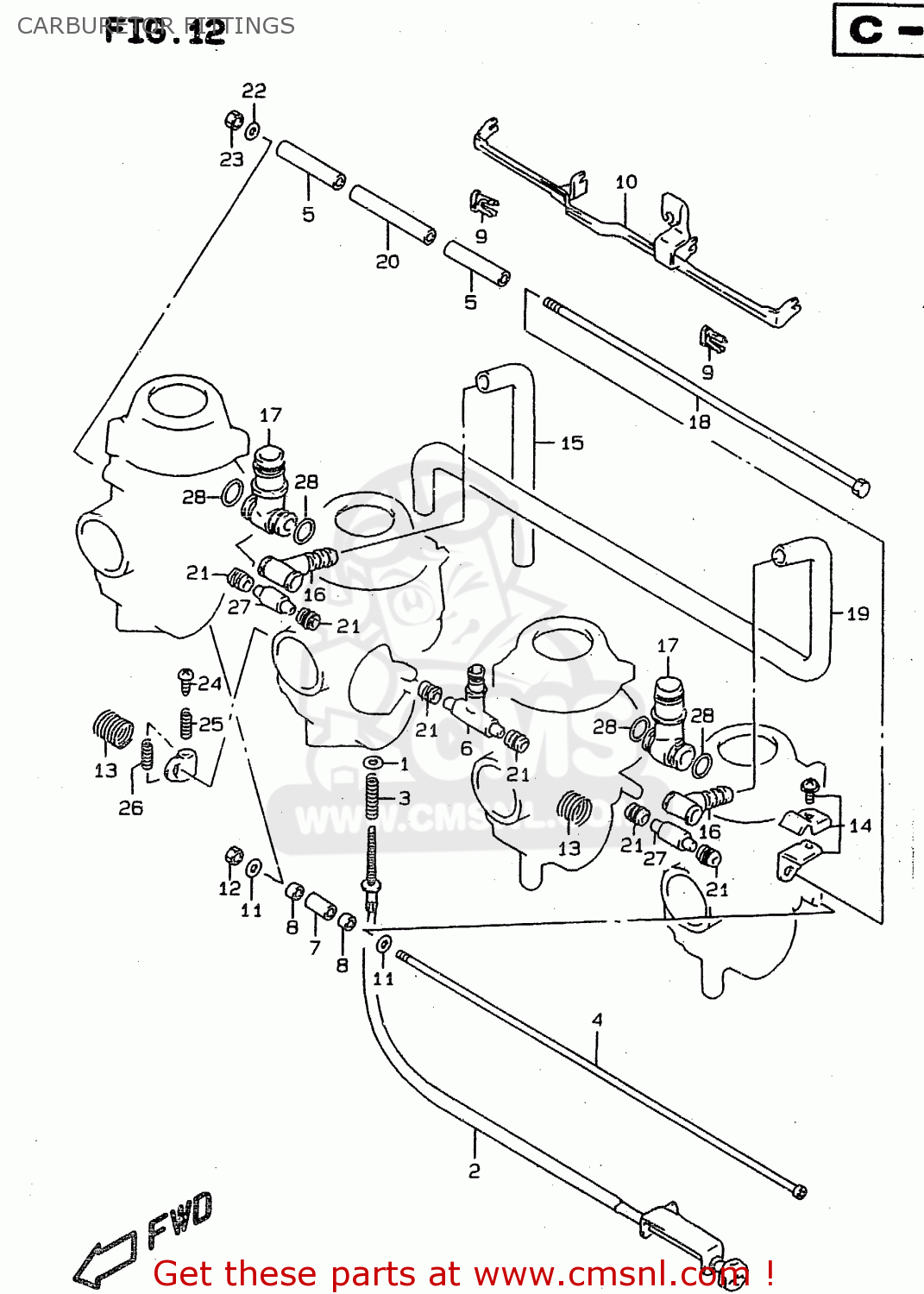

Carburetor fittings diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

CARBURETOR FITTINGS RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

CARBURETOR FITTINGS RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1342738300
ref: 1

WASHER

€ 1.50

2

1326721E00
ref: 2

SCREW,ADJUST

€ 62.50

3

1327133C00
ref: 3

SPRING

€ 4.50

4

1361221E00
ref: 4

BOLT

€ 0.00

5

1333121E00
ref: 5

RING

€ 8.50

6

1368521E00
ref: 6

NIPPLE

€ 13.50

7

1333121E20
ref: 7

RING

€ 4.50

8

1333121E30
ref: 8

RING

€ 3.50

9

1343917C00
ref: 9

HOLDER

€ 12.00

10

1341331E00
ref: 10

LEVER,STARTER

€ 37.00

11

0832201053
ref: 11

WASHER

€ 2.50

12

0831000053
ref: 12

NUT

€ 2.50

13

1357306C10
ref: 13

SPRING

€ 7.00

14

1362433C00
ref: 14

BRACKET ASSY

€ 0.00

15

1368321E10
ref: 15

HOSE

€ 27.50

16

1368334C00
ref: 16

3 WAY

€ 10.50

17

1368533C00
ref: 17

NIPPLE

€ 13.00

18

1361221E10
ref: 18

BOLT

€ 12.00

19

1368321E00
ref: 19

HOSE

€ 31.50

20

1333121E10
ref: 20

RING

€ 9.50

21

1367344B00
ref: 21

SEAL

€ 6.00

22

0832201063
ref: 22

WASHER

€ 2.00

23

0831000063
ref: 23

NUT 6MM

€ 2.00

24

1326744B00
ref: 24

SCREW

€ 3.50

25

1327144B00
ref: 25

SPRING

€ 4.00

26

1326896110
ref: 26

SPRING,THROTTLE SCREW

€ 4.50

27

1368521E10
ref: 27

PIPE

€ 7.00

28

0928010016
ref: 28
<-09280-10005

O RING(D:1.9,ID:9.8)

€ 3.50

all assemblies
