ELECTRICAL

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

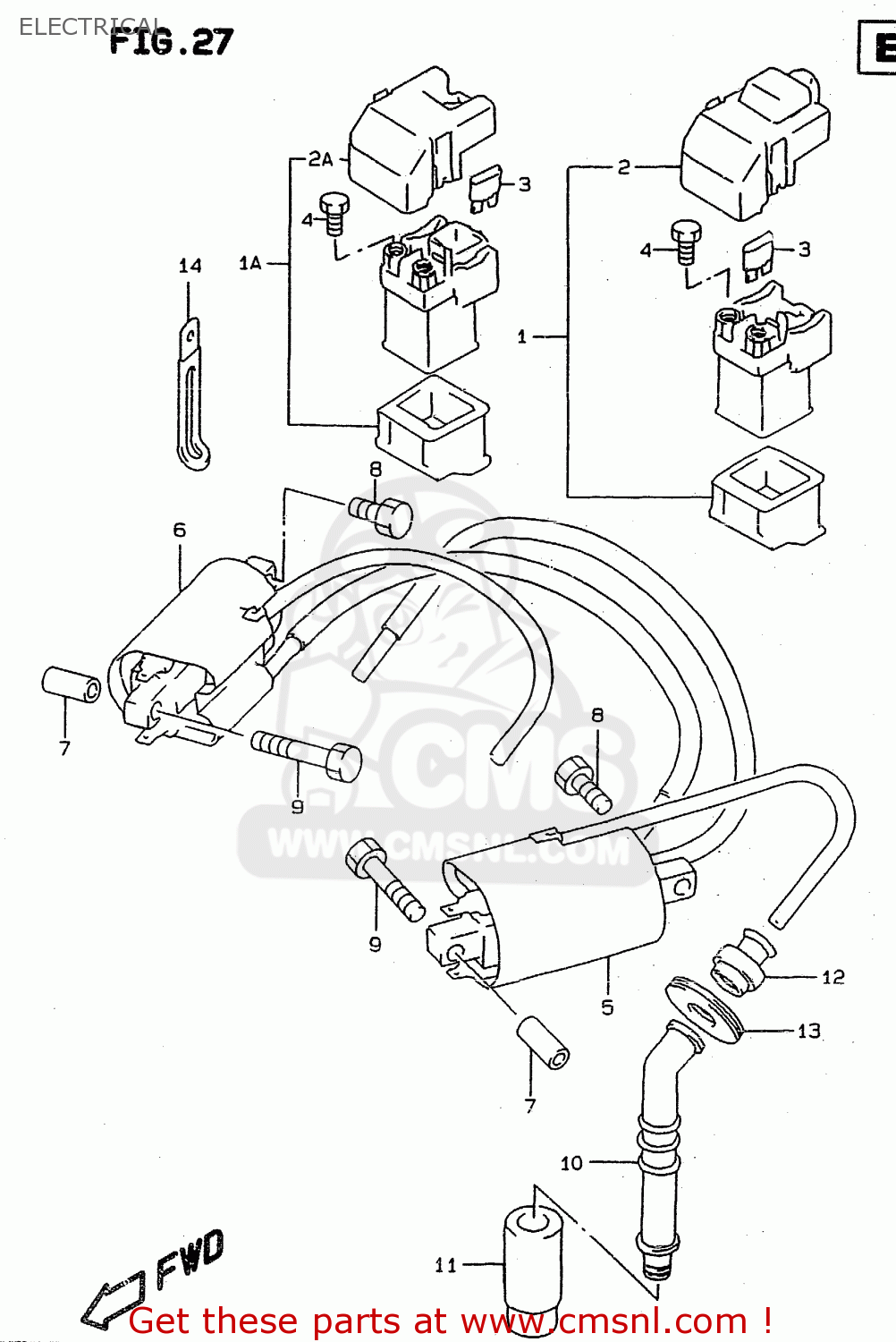

Electrical diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

ELECTRICAL RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

ELECTRICAL RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3180021E10
ref: 1
MODEL R/S

RELAY ASSY,STARTING MOTOR

€ 101.00

1A

3180021E20
ref: 1A
MODEL T/V/W

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186121E10
ref: 2
MODEL R/S

COVER,RELAY ASSEMBLY

€ 10.50

2A

3186121E20
ref: 2A
MODEL T/V/W

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3341021E01
ref: 5
<-33410-21E00

COIL ASSY,IGNITION

€ 104.50

6

3342021E01
ref: 6
<-33420-21E00

COIL ASSY,IGNITION

€ 119.00

7

0918006244
ref: 7

SPACER(6.2X15.5X16.5)

€ 4.50

8

0150006203
ref: 8

BOLT

€ 2.00

9

0910006123
ref: 9

BOLT

€ 2.00

10

3351017E11
ref: 10
<-33510-17E10

CAP ASSY,SPARK PLUG

€ 46.00

11

3354120C00
ref: 11

SEAL,SPARK PLUG

€ 19.50

12

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

13

3354317E01
ref: 13

COVER,SPARK PLUG CAP

€ 19.00

14-1

0940406404
ref: 14-1
MODEL R/S

CLAMP

€ 3.00

14-2

0940406431
ref: 14-2
MODEL T/V/W

CLAMP(L:65)

€ 2.50
