CAM CHAIN

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

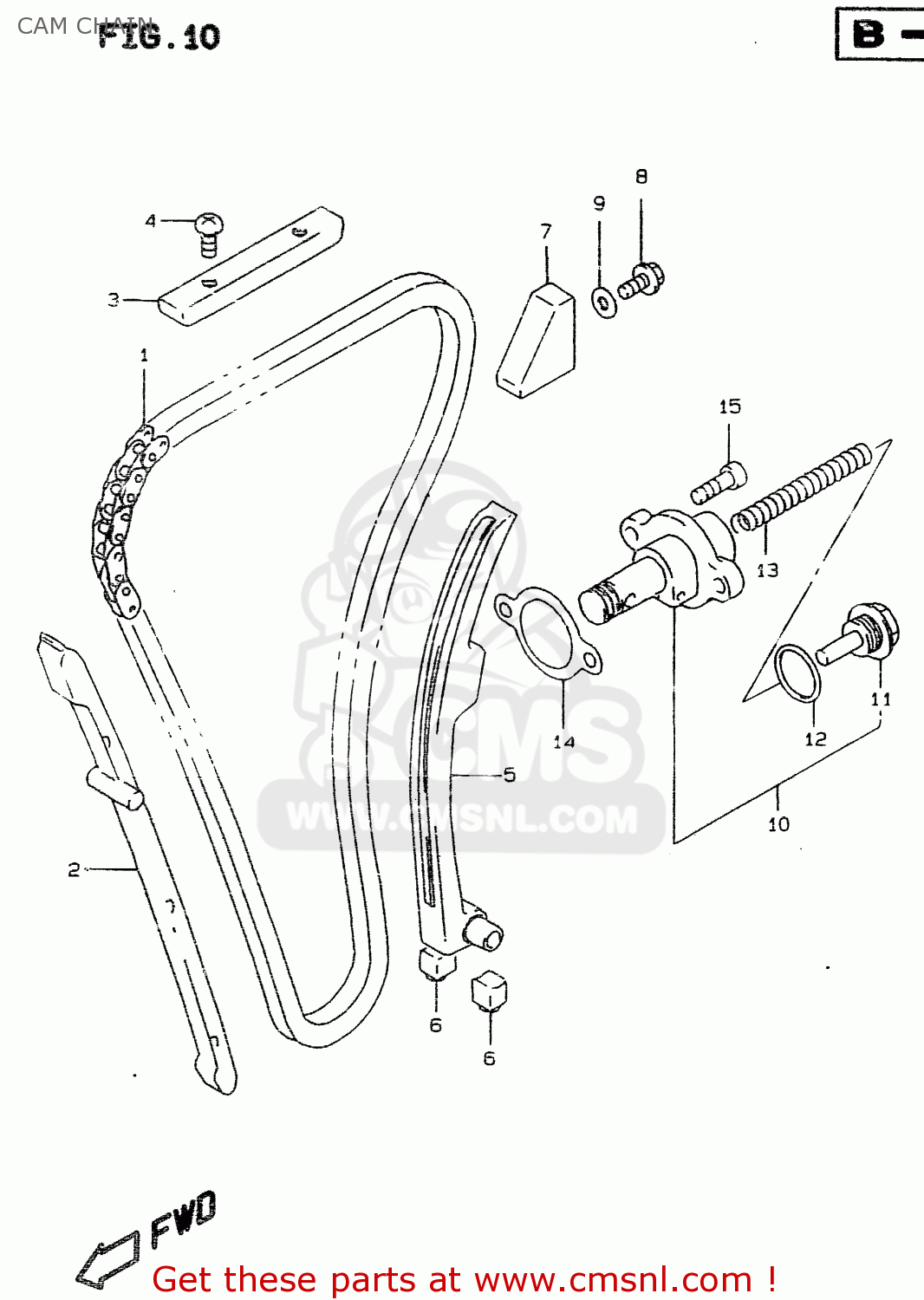

Cam chain diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

CAM CHAIN RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

CAM CHAIN RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1276046E00
ref: 1-1
MODEL R

CHAIN,CAMSHAFT DRIVE

€ 115.50

1-2

1276046E01
ref: 1-2
MODEL S/T/V/W

CHAIN,CAMSHAFT DRIVE

€ 115.50

2-1

1277146E00
ref: 2-1
MODEL R/S

GUIDE,CAM CAHIN NO.1

€ 32.50

2-2

1277146E20
ref: 2-2
MODEL T/V/W

GUIDE,CAM CHAIN NO.1

€ 21.50

3

1278218E00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 177.50

4

0211205103
ref: 4

SCREW

€ 2.00

5-1

1281046E00
ref: 5-1
MODEL R/S

TENSIONER,CAM CHAIN

€ 51.50

5-2

1281046E20
ref: 5-2
MODEL T/V/W

TENSIONER COMP,CAM CHAIN

€ 44.50

6

1281434200
ref: 6

CUSHION,CAM CHAIN TENSIONER

€ 6.50

7-1

1279117E00
ref: 7-1
MODEL R

GUIDE,CAM CHAIN NO.3

€ 39.00

7-2

1279117E01
ref: 7-2
MODEL S/T/V/W

GUIDE,CAM CHAIN NO.3

€ 39.00

8-1

0155006123
ref: 8-1
MODEL R/S

BOLT

€ 2.50

8-2

0155006163
ref: 8-2
MODEL T/V/W

BOLT

€ 2.50

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10-1

1283026D12
ref: 10-1
MODEL R/S

ADJUSTER ASSEMBLY,TENSIONER

€ 244.00

10-2

1283046E00
ref: 10-2
MODEL T/V/W

ADJUSTER ASSY,TENSIONER

€ 244.00

11

1283427A00
ref: 11

PLUG

€ 20.50

12

1283227A00
ref: 12

GASKET (NAS)

€ 5.50

13

1283326D10
ref: 13

SPRING

€ 5.00

14

1283727A10
ref: 14

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

15-1

0910606082
ref: 15-1
MODEL R/S

BOLT(6X22)

€ 3.00

15-2

0910606079
ref: 15-2
MODEL T/V/W

BOLT

€ 3.00
