CARBURETOR (MODEL R/S)

RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

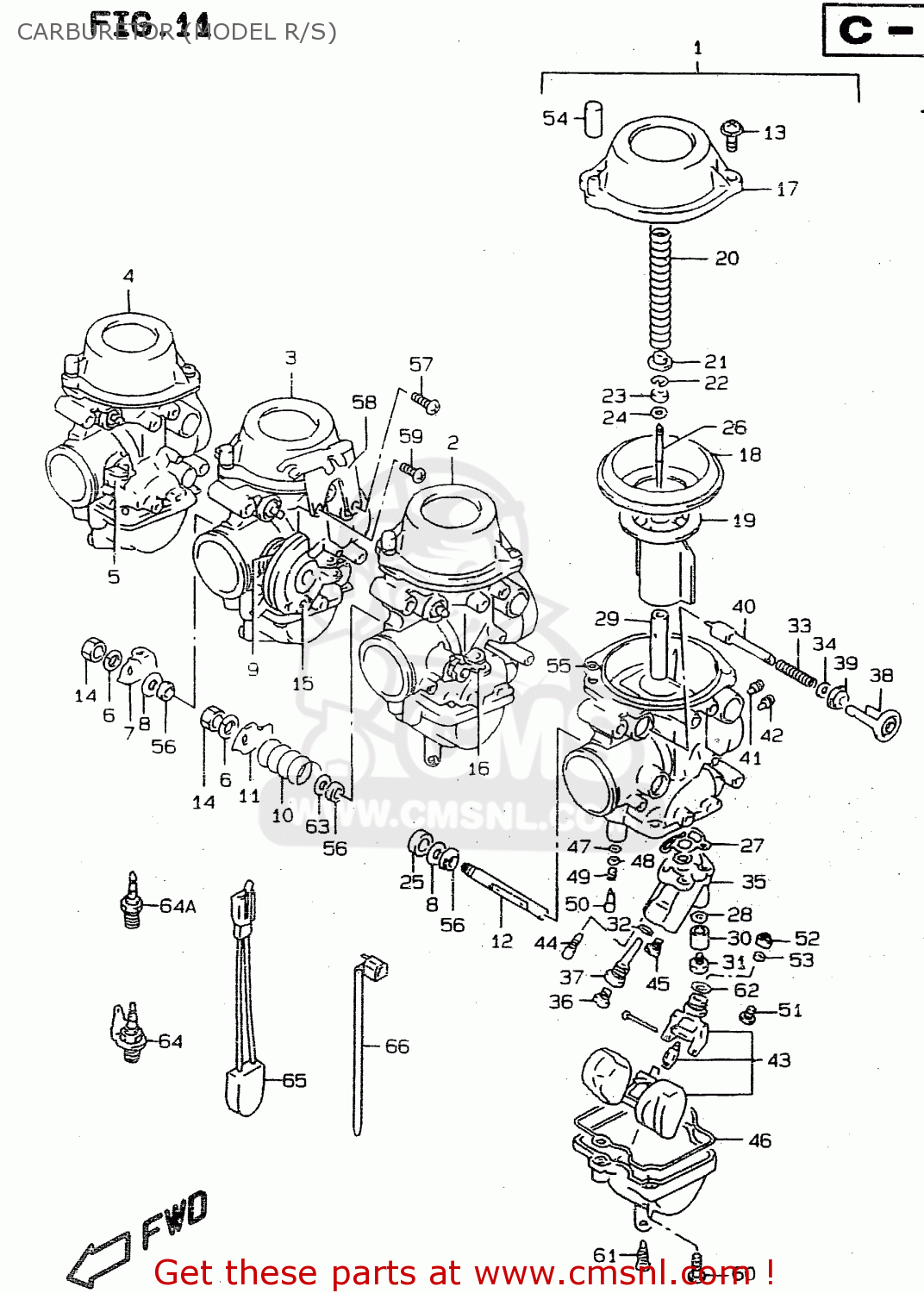

Carburetor (model r/s) diagram RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)

CARBURETOR (MODEL R/S) RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR (MODEL R/S) RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR (MODEL R/S) RF900R 1994 (R) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1320131E00
ref: 1-1
MODEL R
CARBURETOR ASSY, LH
€ 567.00
1-2
1320131E01
ref: 1-2
MODEL S
CARBURETOR ASSY, LH
€ 567.00
1-3
1320131E60
ref: 1-3
E4, MODEL R
CARBURETOR ASSY, LH
€ 0.00
1-4
1320131E61
ref: 1-4
E4, MODEL S
CARBURETOR ASSY, LH
€ 0.00
1-5
1320131E20
ref: 1-5
E22, MODEL R
CARBURETOR ASSY, LH
€ 0.00
1-6
1320131E21
ref: 1-6
E22, MODEL S
CARBURETOR ASSY, LH
€ 0.00
1-7
1320131E70
ref: 1-7
E24, MODEL R
CARBURETOR ASSY, LH
€ 0.00
1-8
1320131E71
ref: 1-8
E24, MODEL S
CARBURETOR ASSY, LH
€ 0.00
1-9
1320131E90
ref: 1-9
E37, MODEL S
CARBURETOR ASSY, LH
€ 0.00
2-1
1320231E00
ref: 2-1
MODEL R
CARBURETOR ,ML
€ 696.00
2-2
1320231E01
ref: 2-2
MODEL S
CARBURETOR ASSY,ML
€ 696.00
2-3
1320231E60
ref: 2-3
E4, MODEL R
CARBURETOR ASSY, ML
€ 0.00
2-4
1320231E61
ref: 2-4
E4, MODEL S
CARBURETOR ASSY, ML
€ 0.00
2-5
1320231E20
ref: 2-5
E22, MODEL R
CARBURETOR ASSY, ML
€ 0.00
2-6
1320231E21
ref: 2-6
E22, MODEL S
CARBURETOR ASSY, ML
€ 0.00
2-7
1320231E70
ref: 2-7
E24, MODEL R
CARBURETOR ASSY, ML
€ 0.00
2-8
1320231E71
ref: 2-8
E24, MODEL S
CARBURETOR ASSY, ML
€ 0.00
2-9
1320231E90
ref: 2-9
E37, MODEL S
CARBURETOR ASSY, ML
€ 0.00
3-1
1320331E00
ref: 3-1
MODEL R
CARBURETOR,MR.
€ 662.50
3-2
1320331E01
ref: 3-2
MODEL S
CARBURETOR ASSY,MR
€ 662.50
3-3
1320331E60
ref: 3-3
E4, MODEL R
CARBURETOR ASSY, MR
€ 0.00
3-4
1320331E61
ref: 3-4
E4, MODEL S
CARBURETOR ASSY, MR
€ 0.00
3-5
1320331E20
ref: 3-5
E22, MODEL R
CARBURETOR ASSY, MR
€ 0.00
3-6
1320331E21
ref: 3-6
E22, MODEL S
CARBURETOR ASSY, MR
€ 0.00
3-7
1320331E70
ref: 3-7
E24, MODEL R
CARBURETOR ASSY, MR
€ 0.00
3-8
1320331E71
ref: 3-8
E24, MODEL S
CARBURETOR ASSY, MR
€ 0.00
3-9
1320331E90
ref: 3-9
E37, MODEL S
CARBURETOR ASSY, MR
€ 0.00
4-1
1320431E00
ref: 4-1
MODEL R
CARBURETOR ,RH
€ 662.50
4-2
1320431E01
ref: 4-2
MODEL S
CARBURETOR ASSY,R
€ 662.50
4-3
1320431E60
ref: 4-3
E4, MODEL R
CARBURETOR ASSY, RH
€ 0.00
4-4
1320431E61
ref: 4-4
E4, MODEL S
CARBURETOR ASSY, RH
€ 0.00
4-5
1320431E20
ref: 4-5
E22, MODEL R
CARBURETOR ASSY, RH
€ 0.00
4-6
1320431E21
ref: 4-6
E22, MODEL S
CARBURETOR ASSY, RH
€ 0.00
4-7
1320431E70
ref: 4-7
E24, MODEL R
CARBURETOR ASSY, RH
€ 0.00
4-8
1320431E71
ref: 4-8
E24, MODEL S
CARBURETOR ASSY, RH
€ 0.00
4-9
1320431E90
ref: 4-9
E37, MODEL S
CARBURETOR ASSY, RH
€ 0.00
5
1355021E30
ref: 5
RH
SHAFT,THROTTLE
€ 0.00
6
0916908012
ref: 6
ML, MR
0916908012
7
1355321E10
ref: 7
MR
LEVER,THROTTLE
€ 0.00
8
1355747070
ref: 8
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
9
1357321E10
ref: 9
MR
SPRING
€ 0.00
10
1357321E00
ref: 10
ML
SPRING
€ 0.00
11
1355021E10
ref: 11
ML
SHAFT,THROTTLE
€ 0.00
12
1355021E00
ref: 12
LH
SHAFT,THROTTLE
1355021E00
€ 37.00
13
0211275163
ref: 13
SCREW
0211275163
€ 2.50
14
0831000087
ref: 14
ML, MR
NUT
0831000087
€ 2.00
15
1355021E20
ref: 15
MR
SHAFT,THROTTLE
€ 76.00
16
1355321E00
ref: 16
ML
LEVER,THROTTLE
€ 0.00
17
1350217E20
ref: 17
COVER,DIAPHRAGM
1350217E20
€ 60.00
18
1350717C01
ref: 18
DIAPHRAGM
1350717C01
€ 24.50
19
1350118E00
ref: 19
VALVE,PISTON
1350118E00
€ 69.00
20
1341731E00
ref: 20
SPRING
1341731E00
€ 8.50
21
1338242A00
ref: 21
RING
1338242A00
€ 3.50
22
1339440D20
ref: 22
E RING
1339440D20
€ 4.50
23
1338747010
ref: 23
RING
1338747010
€ 7.50
24
1338244030
ref: 24
WASHER
1338244030
€ 3.50
25
1357432C00
ref: 25
LH, RH
RING
€ 0.00
26
1338331E20
ref: 26
NEEDLE JET (5DV1)
1338331E20
€ 15.00
27
1325133C00
ref: 27
O RING
1325133C00
€ 10.00
28
1333205A10
ref: 28
1333205A10
29
0949400810
ref: 29
JET,NEEDLE(O-9)
0949400810
€ 30.00
30
1333121E40
ref: 30
RING
1333121E40
€ 4.50
31
1360206C20
ref: 31
SCREW
€ 4.00
32
1329433C00
ref: 32
O RING
1329433C00
€ 5.50
33
1341726D00
ref: 33
SPRING
1341726D00
€ 5.50
34
1343247090
ref: 34
1343247090
35
1322021E00
ref: 35
JET BLOCK ASSEMBLY
1322021E00
€ 38.50
36-1
0949122025
ref: 36-1
JET
0949122025
€ 16.50
36-2
0949123012
ref: 36-2
E22
JET,MAIN(115)
0949123012
€ 11.50
37
1338521E00
ref: 37
HOLDER,JET
1338521E00
€ 25.00
38
1341817C10
ref: 38
HOLDER,GUIDE
1341817C10
€ 14.00
39
1341817C00
ref: 39
CAP,STARTER
1341817C00
€ 5.00
40
1341105320
ref: 40
PLUNGER ASSY
1341105320
€ 18.00
41-1
0949380010
ref: 41-1
LH, RH
JET,MAIN AIR(0.8)
0949380010
€ 16.00
41-2
0949370009
ref: 41-2
E4 LH, RH
JET,MAIN AIR(0.7)
0949370009
€ 13.00
41-3
0949318001
ref: 41-3
ML, MR
JET,MAIN AIR(0.9)
0949318001
€ 14.50
41-4
0949380010
ref: 41-4
E4 LH, RH
JET,MAIN AIR(0.8)
0949380010
€ 16.00
42
0949324013
ref: 42
JET,PILOT AIR(120)
0949324013
€ 15.50
43-1
1325021E00
ref: 43-1
FLOAT/NEEDLE VALVE ASSEMBLY
€ 96.00
43-2
1325031E00
ref: 43-2
E37
FLOAT/NEEDLE VALVE ASSY
1325031E00
€ 96.00
44
0949212008
ref: 44
JET,PILOT(12.5)
0949212008
€ 14.00
45
0949150006
ref: 45
JET,STARTER(50)
0949150006
€ 15.00
46
1325833C00
ref: 46
SEAL
1325833C00
€ 14.50
47
1329529900
ref: 47
O RING,PILOT AIR SCREW
1329529900
€ 4.00
48
1329129900
ref: 48
WASHER
1329129900
€ 2.00
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50-1
1327947070
ref: 50-1
SCREW,PILOT
1327947070
€ 11.50
50-2
1327947070
ref: 50-2
E4
SCREW,PILOT
1327947070
€ 11.50
50-3
1327947070
ref: 50-3
E22
SCREW,PILOT
1327947070
€ 11.50
51
1360205A10
ref: 51
SCREW
1360205A10
€ 4.00
52
1337684110
ref: 52
FILTER
€ 6.50
53
1333106C20
ref: 53
RING
1333106C20
€ 5.50
54
1350817C00
ref: 54
CAP
1350817C00
€ 4.50
55
1325106C10
ref: 55
O RING
1325106C10
€ 5.00
56
1365151010
ref: 56
LH, RH:1, ML, MR:2
SEAL
1365151010
€ 4.00
57
1360205148
ref: 57
MR
SCREW
€ 3.50
58
1362731E00
ref: 58
MR
BRACKET
€ 11.50
59
1360305108
ref: 59
MR
SCREW
€ 1.00
60
0211205127
ref: 60
SCREW
0211205127
€ 2.50
61
1324713A00
ref: 61
SCREW,DRAIN
1324713A00
€ 5.50
62
1337444080
ref: 62
O-RING,NEEDLE VALVE
1337444080
€ 6.00
63
1355707D00
ref: 63
ML
RING
€ 5.50
64
1365025E00
ref: 64
MODEL S, W/TERMINAL
HEATER ASSEMBLY,CARBURETOR
1365025E00
€ 35.00
64A
1365125E00
ref: 64A
MODEL S, N/TERMINAL
HEATER,CARBURETOR (15W)
€ 35.00
65
1365525E00
ref: 65
MODEL S
THERMO SWITCH,CARB HEATER
1365525E00
€ 36.00
66
0940714403
ref: 66
MODEL S
CLAMP(L:125)
0940714403
€ 2.50
