BATTERY

RG125FU 1992 (N) (E02 E04)

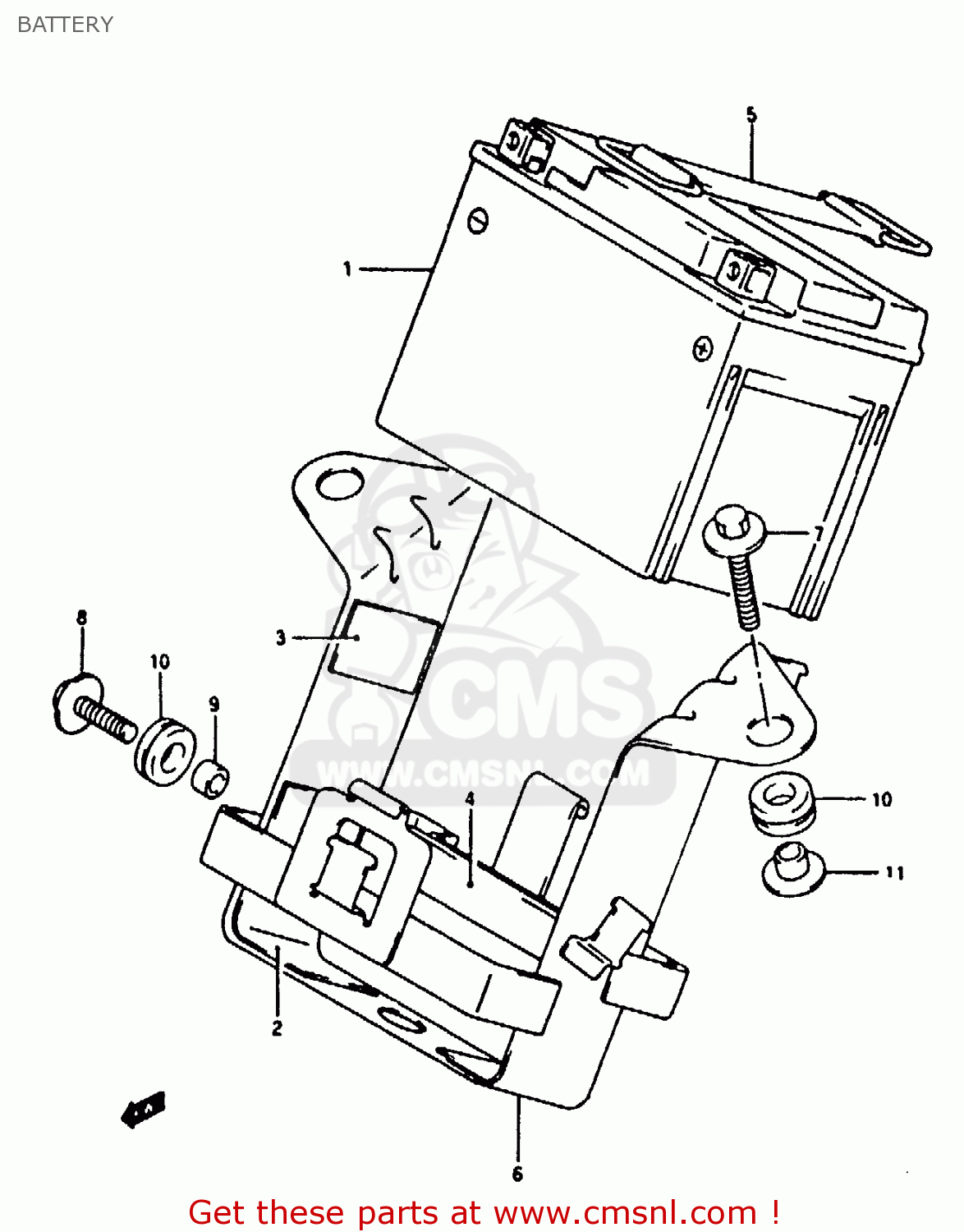

Battery diagram RG125FU 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

3361040B11
ref: 1-1

BATTERY (YTX5L-BS, 12V4AH)

€ 78.50

1-2

3361040B20
ref: 1-2
E2, E4, E15, E17, E1

BATTERY ASSY(YTX5L-BS,12V4.2AH

€ 78.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365229100
ref: 4

PROTECTOR,20X9

€ 5.00

0946200034
ref: 5

BAND

€ 4.50

6-1

4154019D00
ref: 6-1
MODEL N

HOLDER, BATTERY

€ 0.00

6-2

4154019D01
ref: 6-2
MODEL P/R

HOLDER, BATTERY

€ 0.00

0911606047
ref: 7

BOLT(6X25)

€ 2.00

0911606056
ref: 8

BOLT

€ 2.00

0918006038
ref: 9

SPACER(6.1X9X7.5)

€ 2.00

0932008021
ref: 10

CUSHION

€ 4.00

4157019C00
ref: 11

PLATE,BATTERY HOLDER

€ 3.50
