FRONT MASTER CYLINDER
RG125FU 1992 (N) (E02 E04)

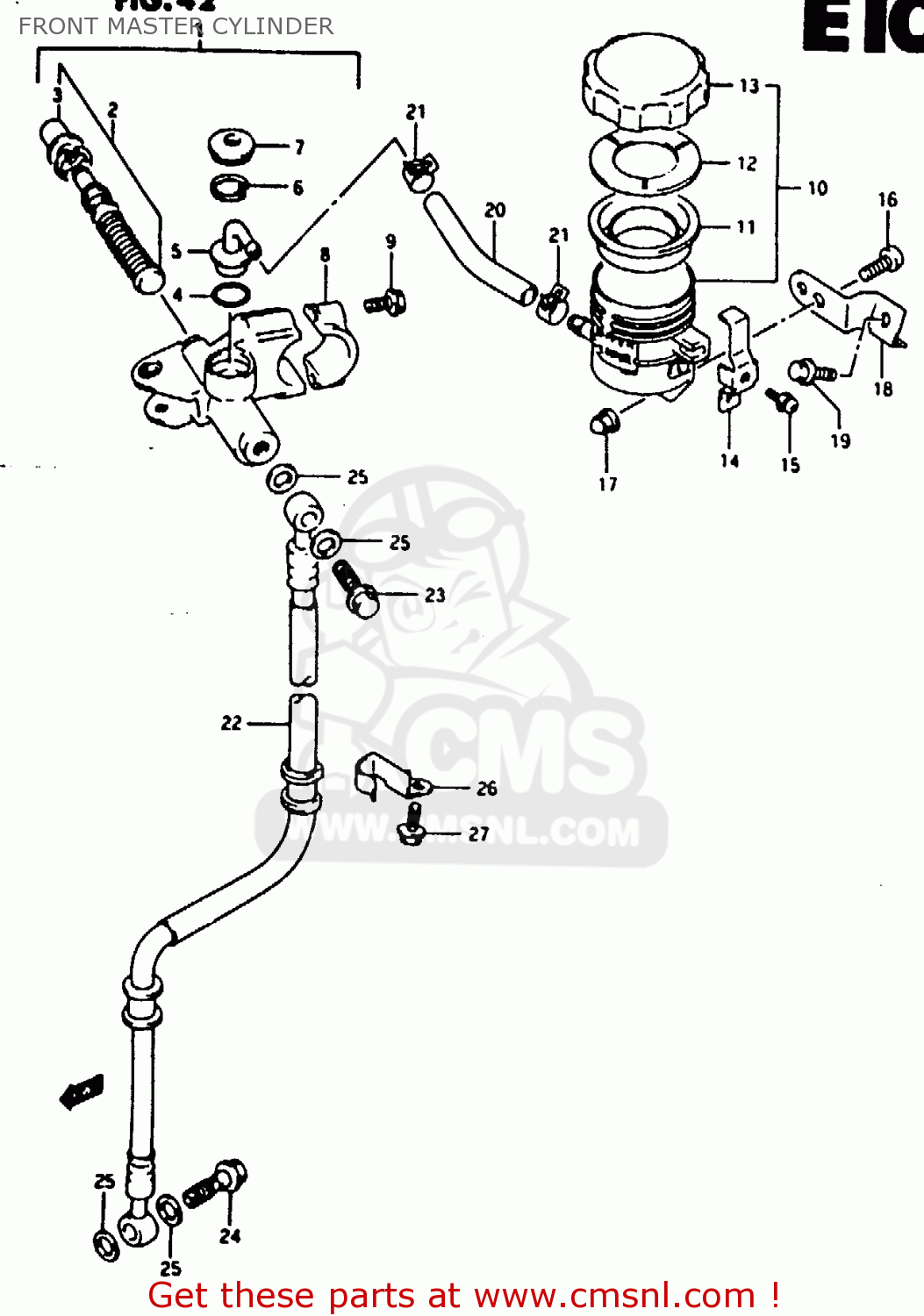

Front master cylinder diagram RG125FU 1992 (N) (E02 E04)
FRONT MASTER CYLINDER RG125FU 1992 (N) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1
5960019D00
ref: 1
CYLINDER ASSY,FR MASTER
€ 192.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
6968634200
ref: 4
O RING
€ 3.50
5
5967217C00
ref: 5
CONNECTOR
€ 8.00
6
6967400B20
ref: 6
CIRCLIP
€ 3.00
7
5967317C00
ref: 7
COVER,DUST
€ 7.00
8
5967136500
ref: 8
HOLDER
€ 10.00
9
5967519C00
ref: 9
BOLT(6X25)
€ 3.00
10
5974007D00
ref: 10
TANK ASSY,RESERVOIR
€ 67.00
11
5966718441
ref: 11
DIAPHRAGM
€ 8.50
12
5966818441
ref: 12
PLATE,DIAPHRAGM
€ 3.50
13
5966907D00
ref: 13
CAP
€ 16.50
14
5974317C00
ref: 14
PLATE,RESERVOIR TANK CAP
€ 8.00
15-1
0211274128
ref: 15-1
MODEL N/P
SCREW
€ 2.50
15-2
0211274123
ref: 15-2
MODEL R
SCREW
€ 2.50
16-1
0214206125
ref: 16-1
MODEL N/P
SCREW 6X12
€ 2.00
16-2
0214206123
ref: 16-2
MODEL R
SCREW 6X12
€ 2.00
17-1
0831321064
ref: 17-1
MODEL N/P
NUT 6MM
€ 2.00
17-2
0831320063
ref: 17-2
MODEL R
NUT
€ 2.00
18
5975122D00
ref: 18
BRACKET,FR RESERVOIR TANK
€ 6.50
19-1
0151706125
ref: 19-1
MODEL N/P
BOLT 6X12
€ 2.50
19-2
0155006123
ref: 19-2
MODEL R
BOLT
€ 2.50
20
5973119D00
ref: 20
HOSE,FR RESERVOIR TANK
€ 12.00
21
5973517C00
ref: 21
CLAMP,RESERVOIR TANK FR
€ 4.00
22
5948019D00
ref: 22
HOSE,FR BRAKE
€ 61.50
23-1
0936010033
ref: 23-1
MODEL N/P
BOLT 10X1.25X24
€ 5.00
23-2
0936010040
ref: 23-2
MODEL R
BOLT UNION
€ 5.00
24-1
0936010017
ref: 24-1
MODEL N/P
BOLT UNION
€ 6.50
24-2
0936010039
ref: 24-2
MODEL R
BOLT UNION
€ 6.50
25
0916110009
ref: 25
WASHER(10X15X1.5)
€ 2.00
26
5926619D01
ref: 26
CLAMP,FR BRAKE HOSE
€ 0.00
27-1
0151706125
ref: 27-1
MODEL N/P
BOLT 6X12
€ 2.50
27-2
0155006123
ref: 27-2
MODEL R
BOLT
€ 2.50
