FRAME

RG125FU 1992 (N) (E02 E04)

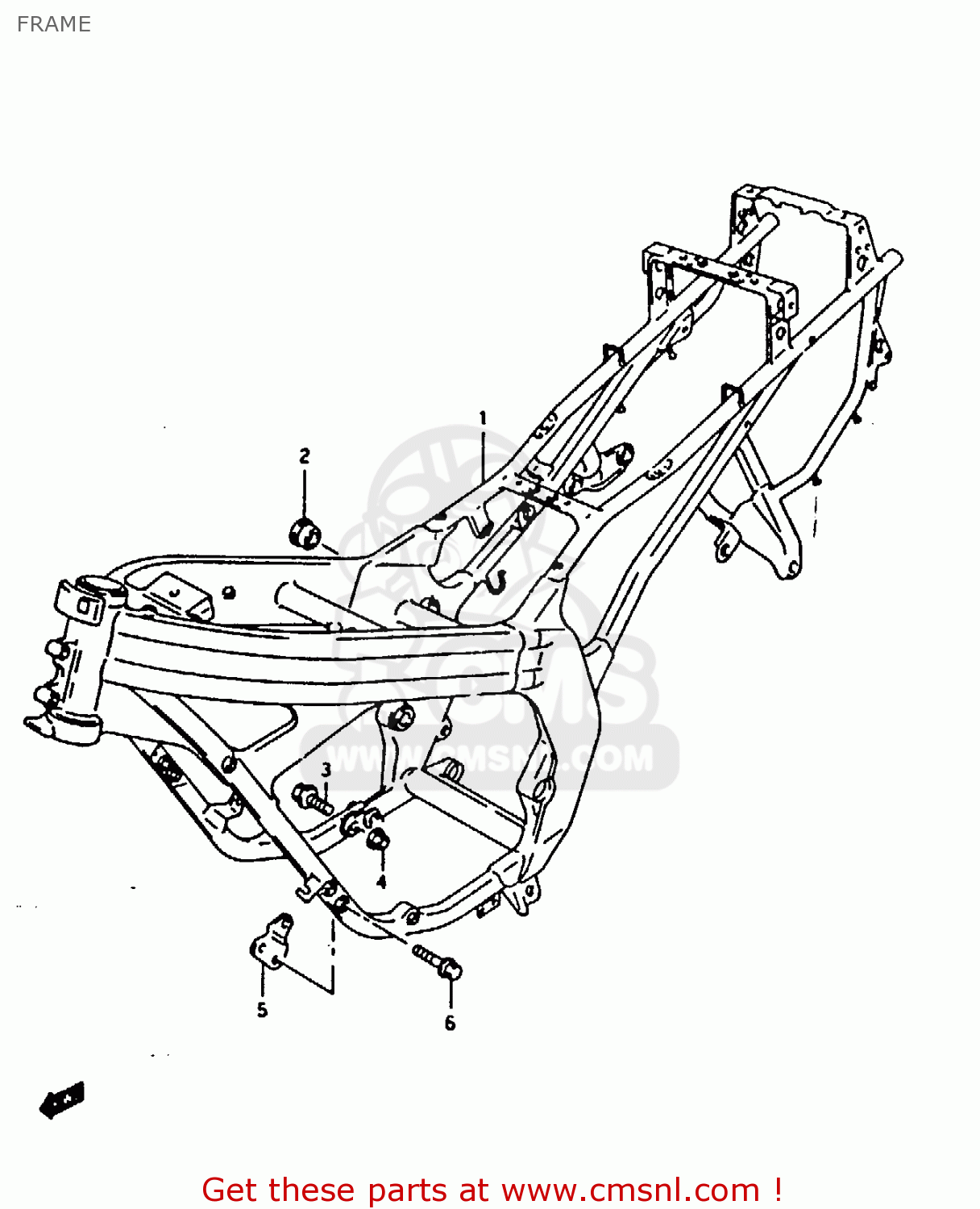

Frame diagram RG125FU 1992 (N) (E02 E04)

FRAME RG125FU 1992 (N) (E02 E04)

FRAME RG125FU 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

4110019D1013L
ref: 1-1

FRAME (SILVER)

€ 2,572.00

1-2

4110019D2013L
ref: 1-2
E2

FRAME (SILVER)

€ 2,572.00

1-3

4110019D3013L
ref: 1-3
E15, E18

FRAME (SILVER)

€ 2,572.00

2

0925025006
ref: 2

PLUG

€ 0.00

3-1

0712010308
ref: 3-1
MODEL N

BOLT, FRAME JOINT

€ 4.00

3-2

0151710308
ref: 3-2
MODEL P/R

BOLT

€ 3.50

4

0831931107
ref: 4

NUT

€ 3.00

5

4191019D0013L
ref: 5

PLATE,ENG MTG(SILVER)

€ 13.00

6

0151708508
ref: 6

BOLT

€ 3.50
