OIL TANK

RG125FU 1992 (N) (E02 E04)

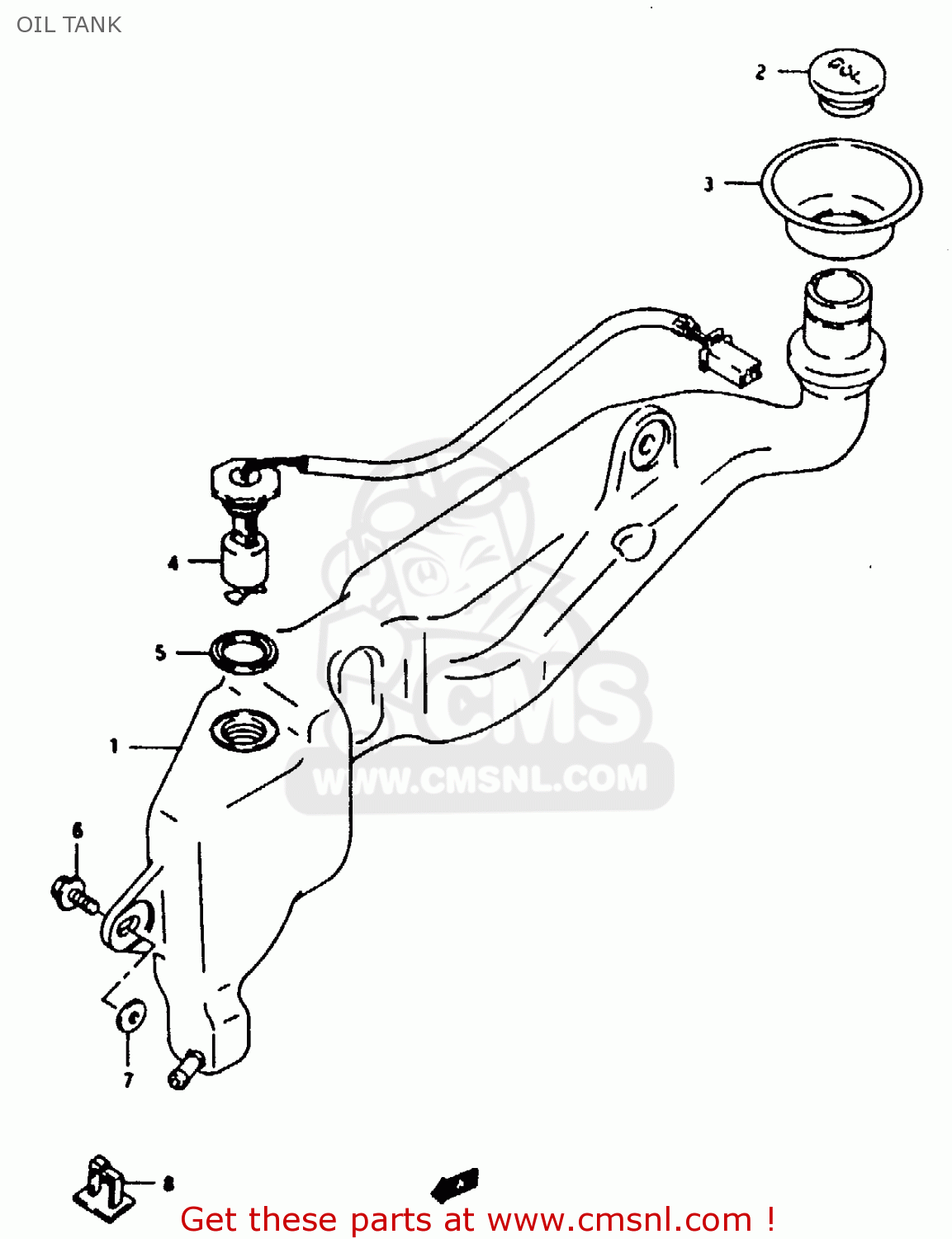

Oil tank diagram RG125FU 1992 (N) (E02 E04)

OIL TANK RG125FU 1992 (N) (E02 E04)

OIL TANK RG125FU 1992 (N) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1

4461119D00
ref: 1

TANK,OIL

€ 54.50

2

4465104701
ref: 2

CAP,OIL TANK

€ 5.00

3

4466748700
ref: 3

RUBBER,OIL TANK INLET

€ 6.50

4

3788040D00
ref: 4

SWITCH ASSY, OIL LEVEL

€ 27.50

5

4464331000
ref: 5

GASKET (NAS)

€ 2.50

6

0911606010
ref: 6

BOLT(6X20)

€ 2.00

7

0916006028
ref: 7

WASHER(6.5X18X1)

€ 1.50

8

0940800146
ref: 8

CLAMP

€ 3.00
