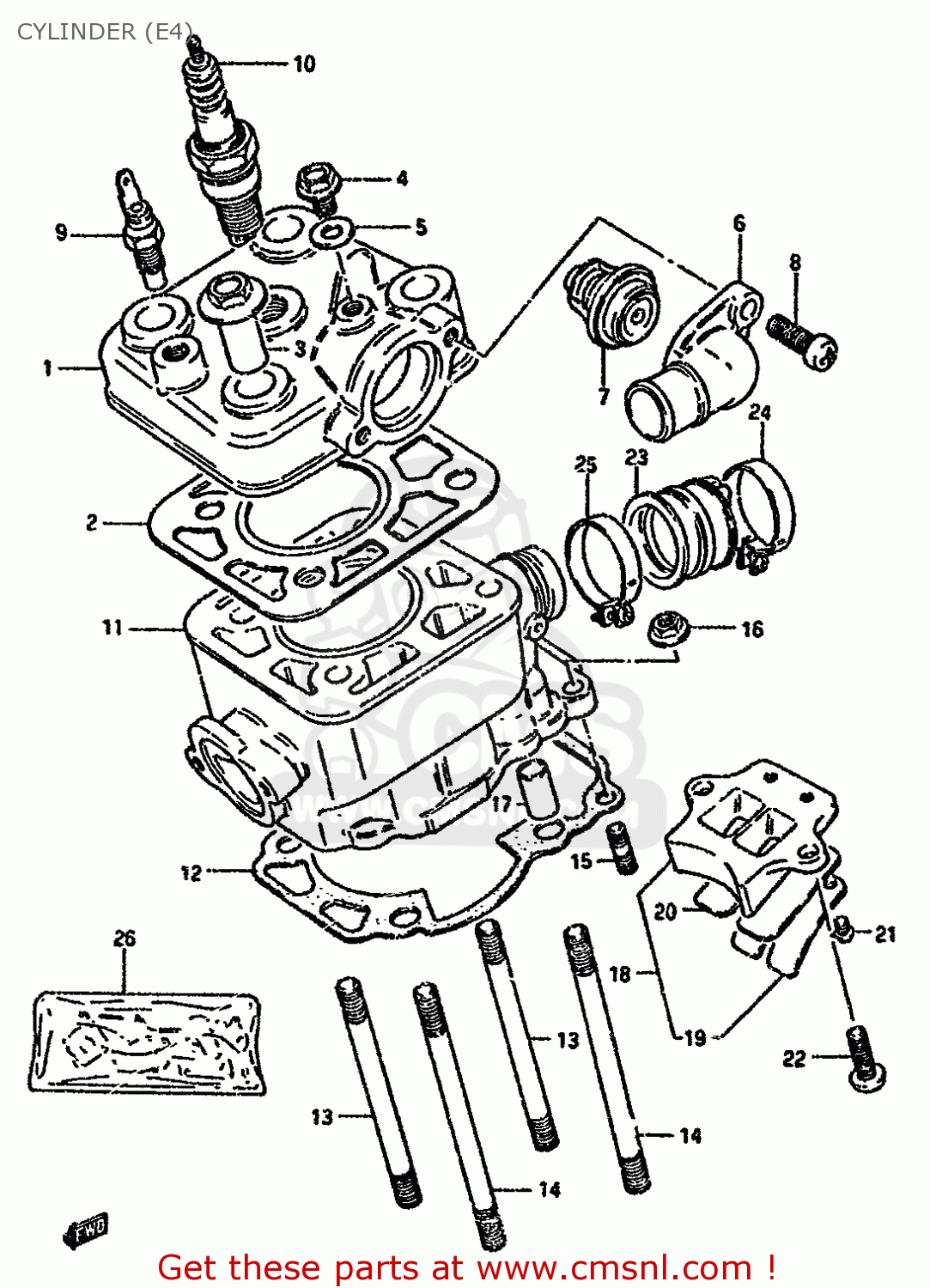

CYLINDER (E4)

ref

part #

description

quantity

1

1111146A00
ref: 1

HEAD,CYLINDER

€ 241.00

2

1114113731
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 20.50

3

0915908066
ref: 3

NUT

€ 5.50

4

0936006007
ref: 4

UNION

€ 3.00

5

0916806004
ref: 5

GASKET(6.2X11X1).2 (NAS)

€ 1.50

6

1766146A00
ref: 6

COVER,THERMOSTAT

€ 59.50

7

1767004700
ref: 7

THERMOSTAT,WATER

€ 31.00

8

0211206207
ref: 8

SCREW

€ 2.00

9

3485005A10
ref: 9

GAUGE ASSY,WATER TEMP

€ 104.00

10-1

0948200175
ref: 10-1

SPARK PLUG BP8ES

€ 6.50

10-2

0948200176
ref: 10-2

SPARK PLUG W24EP

€ 6.50

11

1121046A00
ref: 11

CYLINDER

€ 0.00

12

1124146A00
ref: 12

GASKET,CYLINDER (NAS)

€ 11.50

13

0910808156
ref: 13

STUD BOLT (L:100)

€ 4.50

14

0910808159
ref: 14

STUD BOLT (L:110)

€ 0.00

15

0142106168
ref: 15

STUD 6X16

€ 2.00

16

0915906017
ref: 16

NUT

€ 2.50

17

0421111189
ref: 17

PIN

€ 2.00

18

1315026411
ref: 18

VALVE ASSY,REED

€ 51.00

19

1315226410
ref: 19

STOPPER,REED VALVE

€ 4.50

20

1315326410
ref: 20

VALVE,REED

€ 6.50

21

1315419011
ref: 21

SCREW,REED VALVE

€ 1.50

22

0211206167
ref: 22

SCREW

€ 2.50

23

1311113701
ref: 23

PIPE,INTAKE

€ 8.00

24

0940238303
ref: 24

CLAMP

€ 3.00

25

0940240306
ref: 25

CLAMP

€ 4.00

26

1140013844
ref: 26
OPT

GASKET SET

€ 57.50
