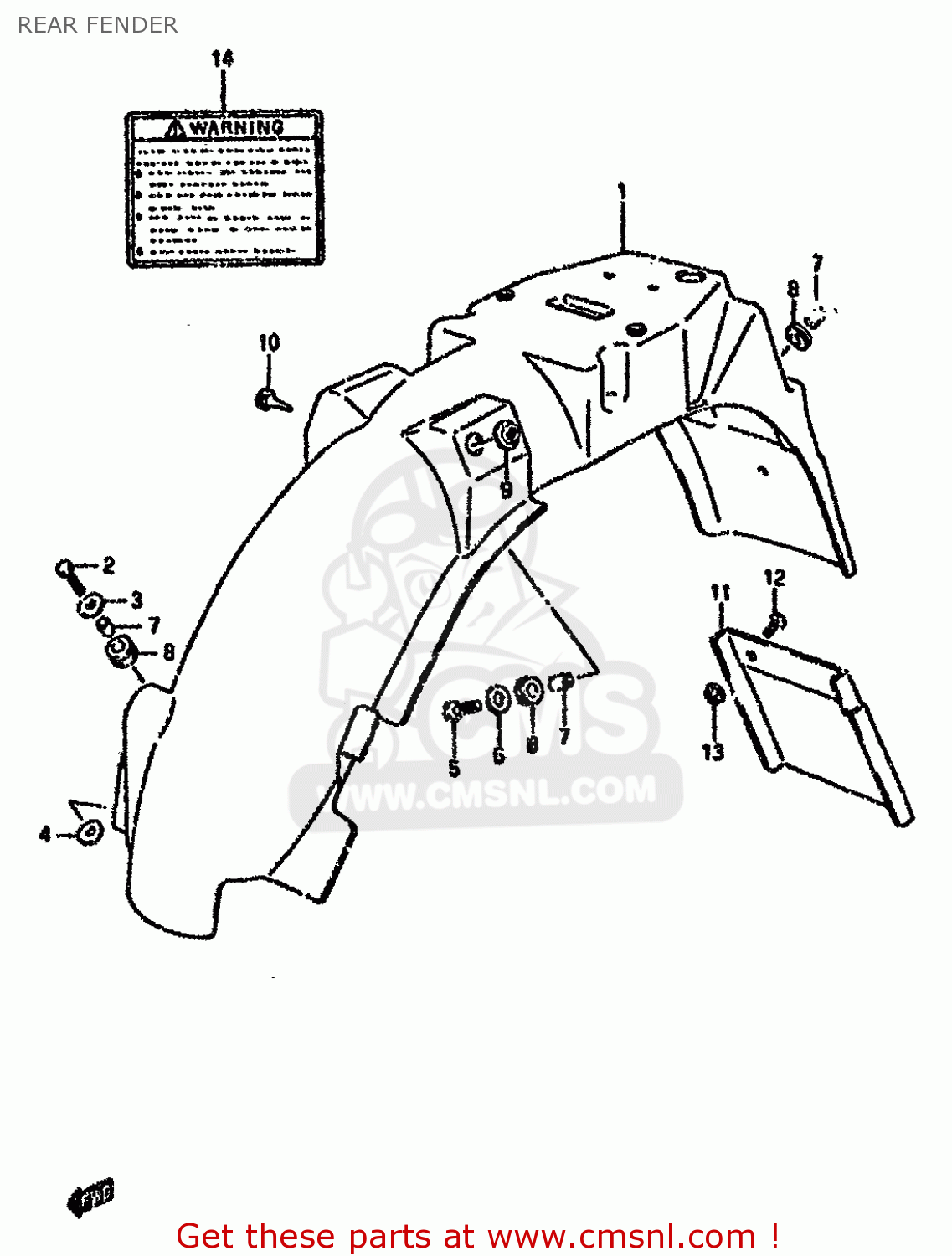

REAR FENDER

ref

part #

description

quantity

1-1

6311036A01
ref: 1-1
E4

FENDER, REAR

€ 111.00

1-2

6311046A00
ref: 1-2
E22

FENDER,REAR

€ 118.50

2-1

0110706257
ref: 2-1
MODEL F/H/J

BOLT

€ 2.00

2-2

0911606025
ref: 2-2
MODEL M

BOLT(6X25)

€ 2.50

3

0916006006
ref: 3
MODEL F/H/J

WASHER

€ 2.00

4

0916006056
ref: 4

WASHER(6.5X18X1)

€ 2.00

5

0110706206
ref: 5

BOLT,M6X1X20

€ 2.00

6

0916006057
ref: 6

WASHER

€ 2.00

7

0918006011
ref: 7

SPACER (6.1X9X9)

€ 2.00

8

0932009016
ref: 8

CUSHION

€ 2.50

9

0831921068
ref: 9

NUT 6MM

€ 2.00

10

0932106008
ref: 10

CUSHION

€ 2.00

11

6331146A00
ref: 11
E22

EXTENSION,REAR FENDER

€ 0.00

12

0214205164
ref: 12
E22

SCREW

€ 2.50

13

0831931056
ref: 13
E22

NUT

€ 3.00

14-1

6831940C30
ref: 14-1
E4

LABEL, WARNING SAFETY

€ 8.50

14-2

6831940C20
ref: 14-2
E22

LABEL, WARNING SAFETY

€ 8.00

15-1

9901146A2201C
ref: 15-1
MODEL J

MANUAL,OWNER'S

€ 0.00

15-2

9901146A2401C
ref: 15-2
MODEL M DRAWING NOT

MANUAL,OWNER'S

€ 0.00

all assemblies
