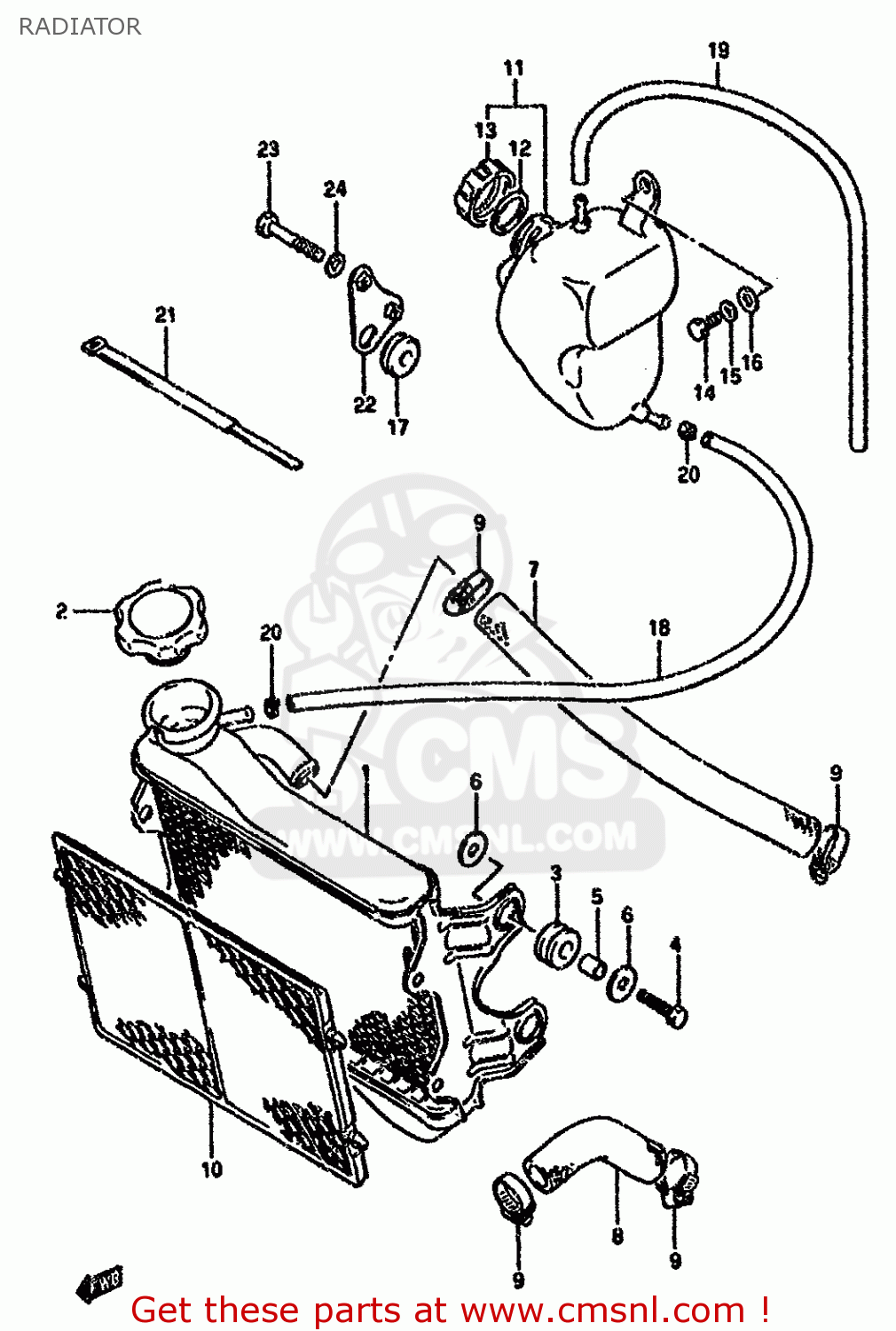

RADIATOR

ref

part #

description

quantity

1

1771046A00
ref: 1

RADIATOR

€ 0.00

2

1773019D00
ref: 2
-17730-01A01

CAP COMP,RADIATOR 1.1

€ 33.50

3

1778719A00
ref: 3

CUSHION,RADIATOR LWR

€ 3.50

4

0150006253
ref: 4

BOLT

€ 2.50

5

0918007013
ref: 5

SPACER (7X10X12)

€ 2.50

6

0916006063
ref: 6

WASHER (6.5X22X1.6)

€ 2.00

7

1785146A00
ref: 7

HOSE,RADIATOR INLET

€ 13.00

8

1735246A00
ref: 8

HOSE,RADIATOR,OUTLET

€ 0.00

9

0940228511
ref: 9
-09402-25502

CLAMP

€ 8.50

10

1799146A00
ref: 10

NET,RADIATOR

€ 0.00

11

1790036A00
ref: 11

TANK ASSY,RESERVOIR

€ 0.00

12

1784413700
ref: 12

GASKET,RESERVOIR TANK CAP (NAS)

€ 2.50

13

1784513700
ref: 13

CAP,RESERVOIR TANK

€ 11.50

14

0150006207
ref: 14

BOLT

€ 2.00

15

0832101067
ref: 15

WASHER,LOCK

€ 2.50

16

0916006027
ref: 16

WASHER (6.5X20X1.2)

€ 2.00

17

0932008013
ref: 17

CUSHION

€ 4.00

18

093525090100B
ref: 18
L:2000-650

HOSE(5X9X2000)

€ 19.50

19

093525090100B
ref: 19
L:2000-510

HOSE(5X9X2000)

€ 19.50

20

0940108407
ref: 20

CLIP

€ 3.00

21

0940718301
ref: 21
MODEL F/H

CLAMP

€ 6.00

22

1792046A00
ref: 22

PLATE,RESERVOIR

€ 0.00

23

0150008353
ref: 23

BOLT

€ 3.50

24

0832101087
ref: 24

WASHER,LOCK

€ 2.00

all assemblies
