RG80 1991 (M) FRANCE GERMANY (E04 E22)

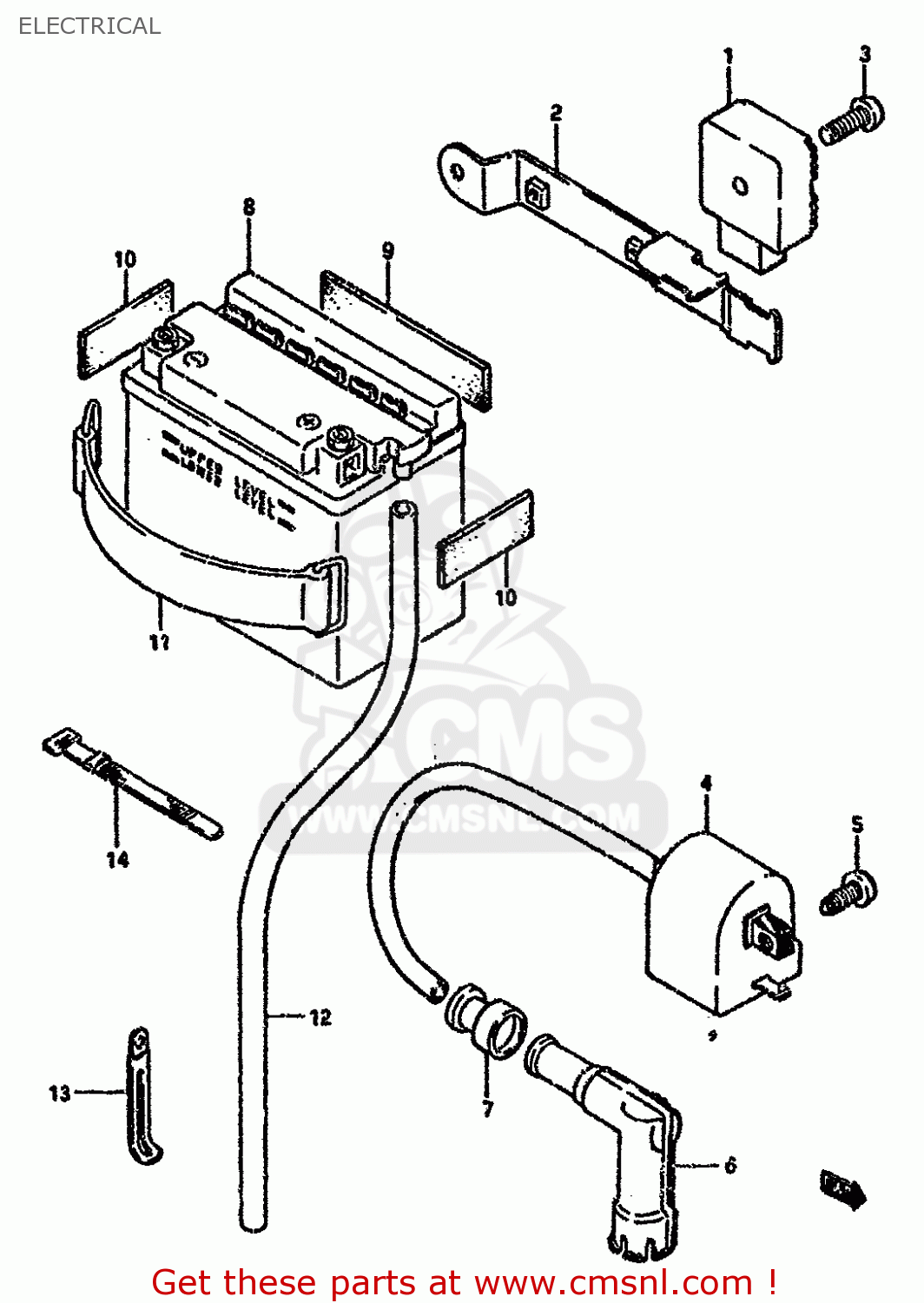

Electrical diagram RG80 1991 (M) FRANCE GERMANY (E04 E22)
ELECTRICAL RG80 1991 (M) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
3280048720
ref: 1
RECTIFIER ASSY,REGULATOR
€ 91.50
2
4741536A00
ref: 2
BRACKET
€ 4.50
3
0211206256
ref: 3
SCREW
€ 1.50
4
3341013700
ref: 4
UNIT/COIL ASSY,IGNITION
€ 214.00
5
0912906003
ref: 5
SCREW(6X21)
€ 2.00
6
3351039110
ref: 6
CAP,SPARK PLUG
€ 61.50
7
3354238B00
ref: 7
SEAL,HIGH TENSION CORD
€ 4.50
8
3361002500
ref: 8
BATTERY ASSY(YB4L-B,12V4.2AH)
€ 26.50
9
3365137000
ref: 9
-33652-29100
PROTECTOR(170X95X3.0)
€ 5.00
10
3365137000
ref: 10
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
11
0946200067
ref: 11
BAND
€ 4.50
12
3368016A10
ref: 12
-33680-31003
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
13
0940406405
ref: 13
CLAMP
€ 3.00
14
0940712403
ref: 14
CLAMP
€ 3.00
