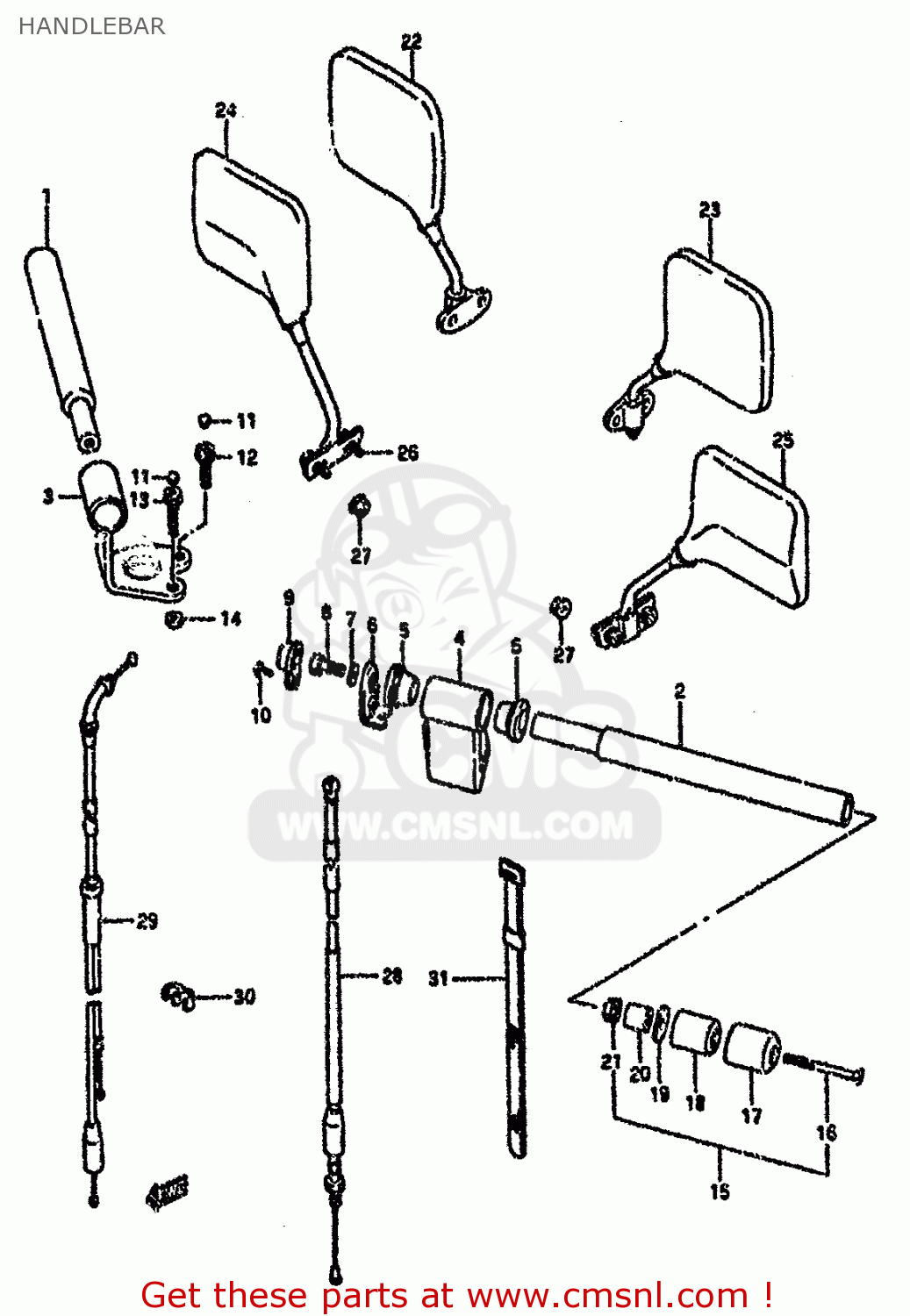

HANDLEBAR

ref

part #

description

quantity

1-1

5611036A01
ref: 1-1
MODEL F

HANDLEBAR, RH

€ 56.50

1-2

5611036A10
ref: 1-2
MODEL H/J/M

HANDLEBAR, RH

€ 57.00

2-1

5615036A01
ref: 2-1
MODEL F

HANDLEBAR, LH

€ 64.00

2-2

5615036A10
ref: 2-2
MODEL H/J/M

HANDLEBAR,L

€ 52.50

3

5621036A11
ref: 3

HOLDER,HANDLEBAR,R

€ 46.50

4

5622036A11
ref: 4

HOLDER, HANDLEBAR LH

€ 50.50

5

5619036A01
ref: 5

CUSHION, HANDLEBAR

€ 9.50

6

5619536A00
ref: 6

PLATE, HANDLEBAR

€ 5.50

7

0832121084
ref: 7
MODEL F/H/J

WASHER,LOCK,8.

€ 2.50

8-1

0110708205
ref: 8-1
MODEL F/H/J

BOLT

€ 2.00

8-2

0113708205
ref: 8-2
MODEL M

BOLT

€ 2.00

9

5619636A01
ref: 9

CAP,HANDLEBAR BOLT

€ 5.00

10

0214205104
ref: 10

SCREW 5X10

€ 2.50

11

0925006008
ref: 11

CAP(OD:10)

€ 3.00

12

0712008355
ref: 12

BOLT

€ 4.00

13

0712008405
ref: 13

BOLT

€ 3.50

14

0831921085
ref: 14

NUT

€ 1.50

15

5620036810
ref: 15
-56200-12811

BALANCER SET,HANDLEBAR

€ 88.00

16

0213206655
ref: 16
-02122-06653

SCREW 6X65

€ 2.50

17

5627405350
ref: 17
-56274-31300

CAP,BALANCER

€ 223.50

18

5627149420
ref: 18

BALANCER,HANDLE

€ 19.50

19

5627534400
ref: 19

SPACER,BALANCER

€ 2.50

20

5627244500
ref: 20

EXPANDER,HANDLE BALANCER

€ 3.00

21

0915906024
ref: 21

NUT

€ 2.00

22

5650036A20
ref: 22
E4

MIRROR ASSY,RR VIEW,R

€ 29.00

23

5660036A20
ref: 23
E4

MIRROR ASSY,RR VIEW,L

€ 41.50

24

5650036A50
ref: 24
E22

MIRROR ASSY,RR VIEW,R

€ 33.50

25

5660036A50
ref: 25
E22

MIRROR ASSY,RR VIEW,L

€ 29.00

26

0711006205
ref: 26

BOLT

€ 3.00

27

0831616064
ref: 27

NUT 6MM

€ 2.50

28

5820036A00
ref: 28

CABLE ASSY,CLUTCH

€ 16.00

29-1

5830046A01
ref: 29-1
MODEL F

CABLE ASSY,THROTTLE

€ 37.00

29-2

5830046A10
ref: 29-2
MODEL H/J/M

CABLE ASSY,THROTTLE

€ 35.50

30

0940800066
ref: 30

CLIP

€ 1.50

31

0940712402
ref: 31

CLAMP(L:120)

€ 3.00
