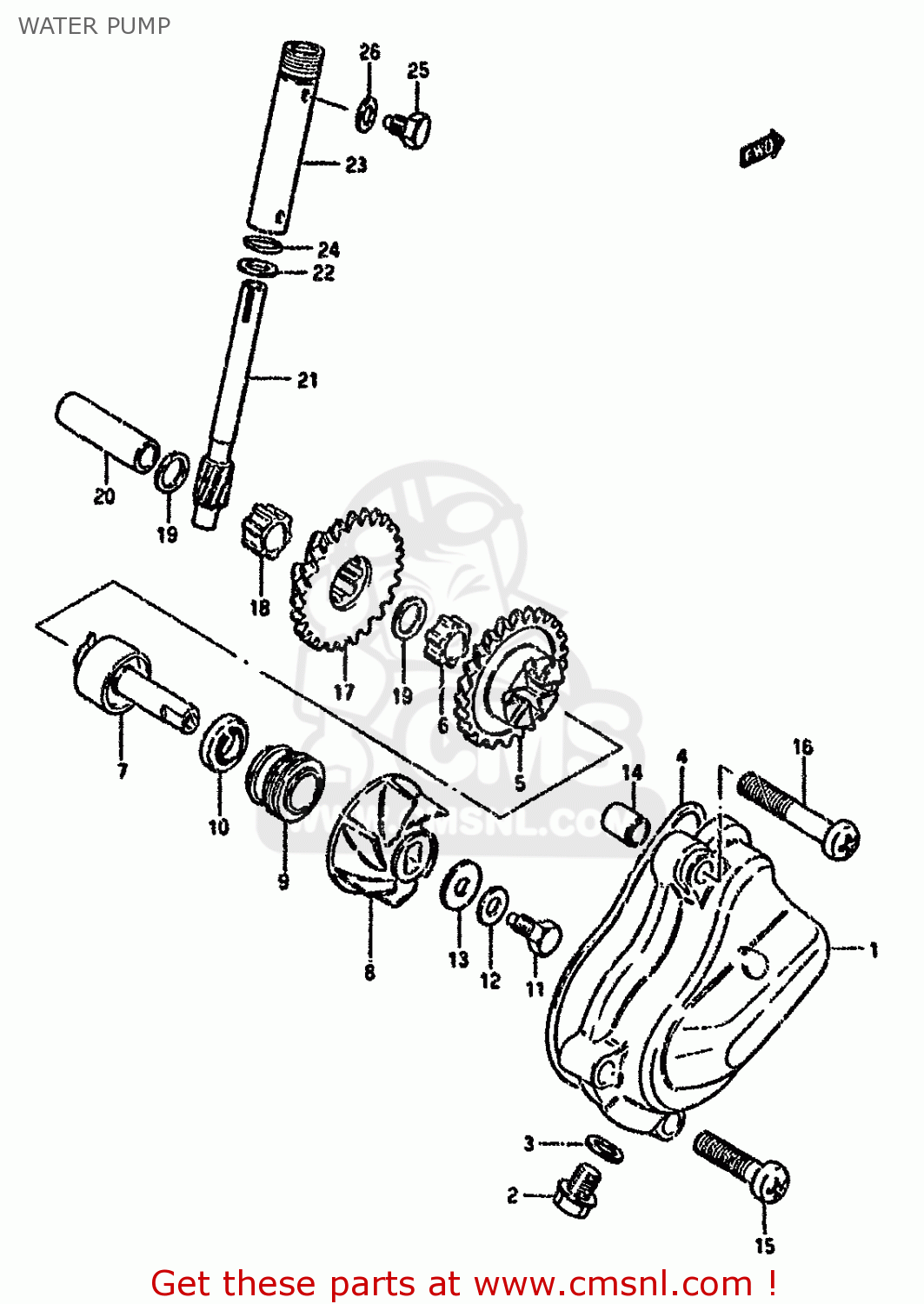

WATER PUMP

ref

part #

description

quantity

1

1741004704
ref: 1
-17410-04703

CASE,WATER PUMP

€ 56.50

2

1741514300
ref: 2

BOLT,DRAIN

€ 2.00

3-1

1741314100
ref: 3-1
MODEL F

GASKET,DRAIN (NAS)

€ 1.00

3-2

0916808008
ref: 3-2
MODEL H/J/M

GASKET 8.2X14X1 (NAS)

€ 1.00

4

1741804701
ref: 4

O RING,WATER PUMP CASE

€ 6.50

5

1746104701
ref: 5

GEAR,WATER PUMP DRIVE

€ 28.00

6

2642404700
ref: 6

BUSH

€ 4.00

7

1751004710
ref: 7

SHAFT,WATER PUMP

€ 96.50

8

1749104700
ref: 8

IMPELLER,WATER PUMP

€ 13.50

9

1747046A00
ref: 9

SEAL,MECHANICAL

€ 21.50

10

0928310005
ref: 10

SEAL,OIL(10X20X5)

€ 4.50

11

0910006099
ref: 11

BOLT(6X13)

€ 2.00

12

0916406006
ref: 12

WASHER

€ 2.50

13

0916806025
ref: 13

GASKET(6X15X2.2) (NAS)

€ 3.00

14

0421109129
ref: 14

PIN

€ 2.00

15

0211206255
ref: 15

SCREW

€ 1.50

16

0211206355
ref: 16

SCREW

€ 2.50

17

2642104702
ref: 17

GEAR,TACHOMETER DRIVE

€ 20.00

18

2642304700
ref: 18

BUSH,TACHOMETER DRIVE GEAR

€ 6.00

19

0822112205
ref: 19

SHIM

€ 1.50

20

2642204701
ref: 20

SHAFT,TACHOMETER DRIVEN GEAR

€ 6.00

21

2643104701
ref: 21

GEAR,TACHOMETER DRIVEN(NT:10)

€ 19.50

22

0916008003
ref: 22

WASHER(8X13.7X1)

€ 2.00

23

2644139102
ref: 23

SLEEVE,TACHOMETER DRIVE GEAR

€ 12.00

24

0928010001
ref: 24

O RING(D:1.3,ID:9.6)

€ 2.00

25

0913506013
ref: 25

BOLT

€ 2.50

26

0916806004
ref: 26

GASKET(6.2X11X1).2 (NAS)

€ 1.50
