OIL PUMP
RG80 1991 (M) FRANCE GERMANY (E04 E22)

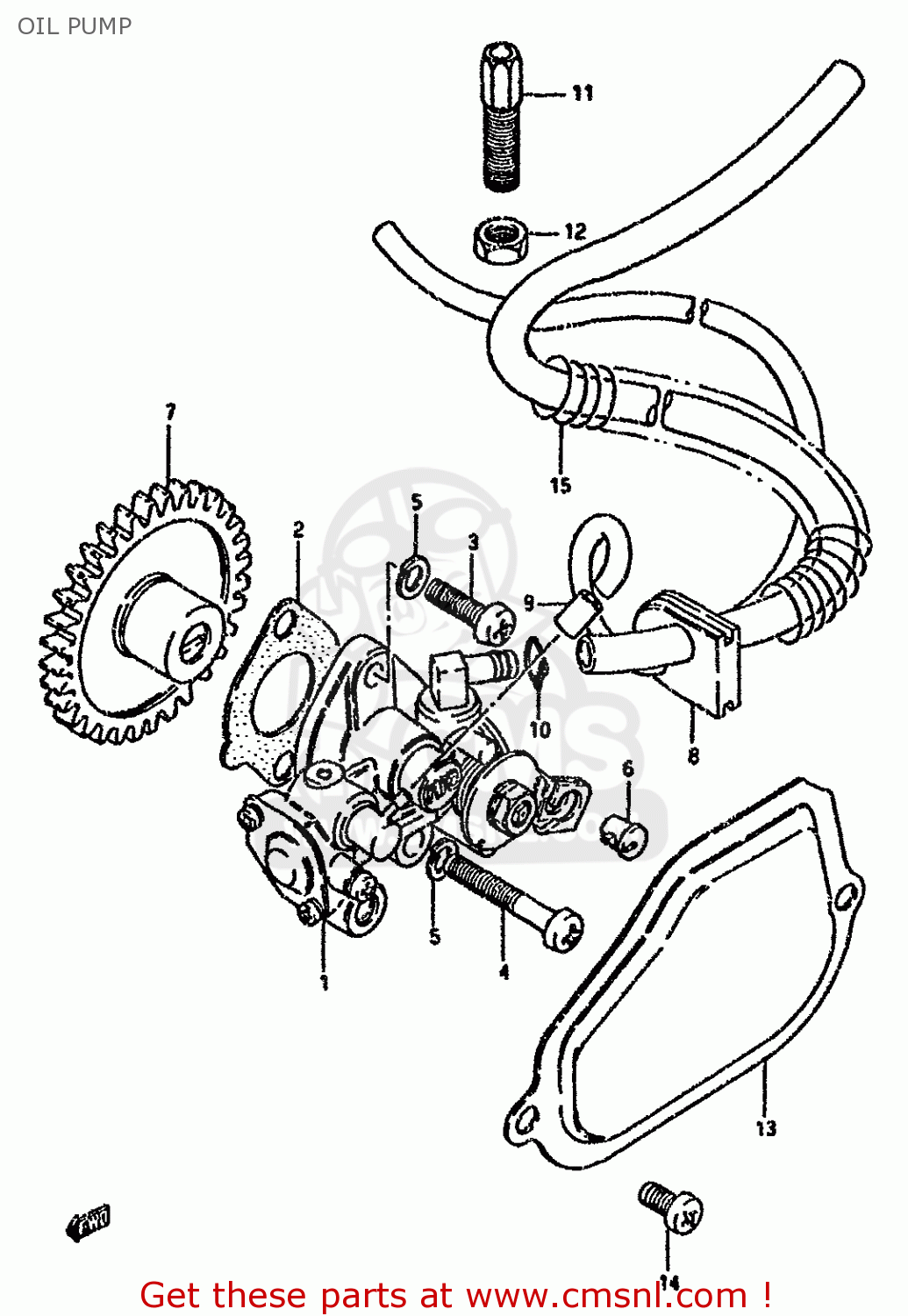

Oil pump diagram RG80 1991 (M) FRANCE GERMANY (E04 E22)
OIL PUMP RG80 1991 (M) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
1610013721
ref: 1
FROM 16100-13710
PUMP ASSY,OIL
€ 0.00
2
1673103101
ref: 2
GASKET,OIL PUMP (NAS)
€ 2.50
3
0211205163
ref: 3
SCREW
€ 2.00
4
0211205303
ref: 4
SCREW
€ 1.50
5
0832101057
ref: 5
WASHER,LOCK
€ 2.00
6
1629203112
ref: 6
-16292-031A2
TERMINAL,CABLE
€ 3.50
7
1633004700
ref: 7
GEAR,OIL PUMP DRIVEN(NT:36)
€ 28.00
8
1682046A00
ref: 8
HOSE SET,OIL NO.2
€ 12.50
9
0940104401
ref: 9
CLIP
€ 2.50
10
0940108401
ref: 10
CLIP
€ 1.50
11
0911908014
ref: 11
BOLT
€ 3.50
12
0831000087
ref: 12
NUT
€ 2.00
13
1138504701
ref: 13
CAP,OIL PUMP INSPECTION
€ 13.00
14
0211205107
ref: 14
SCREW
€ 2.00
15
0944017012
ref: 15
SPRING
€ 7.00
