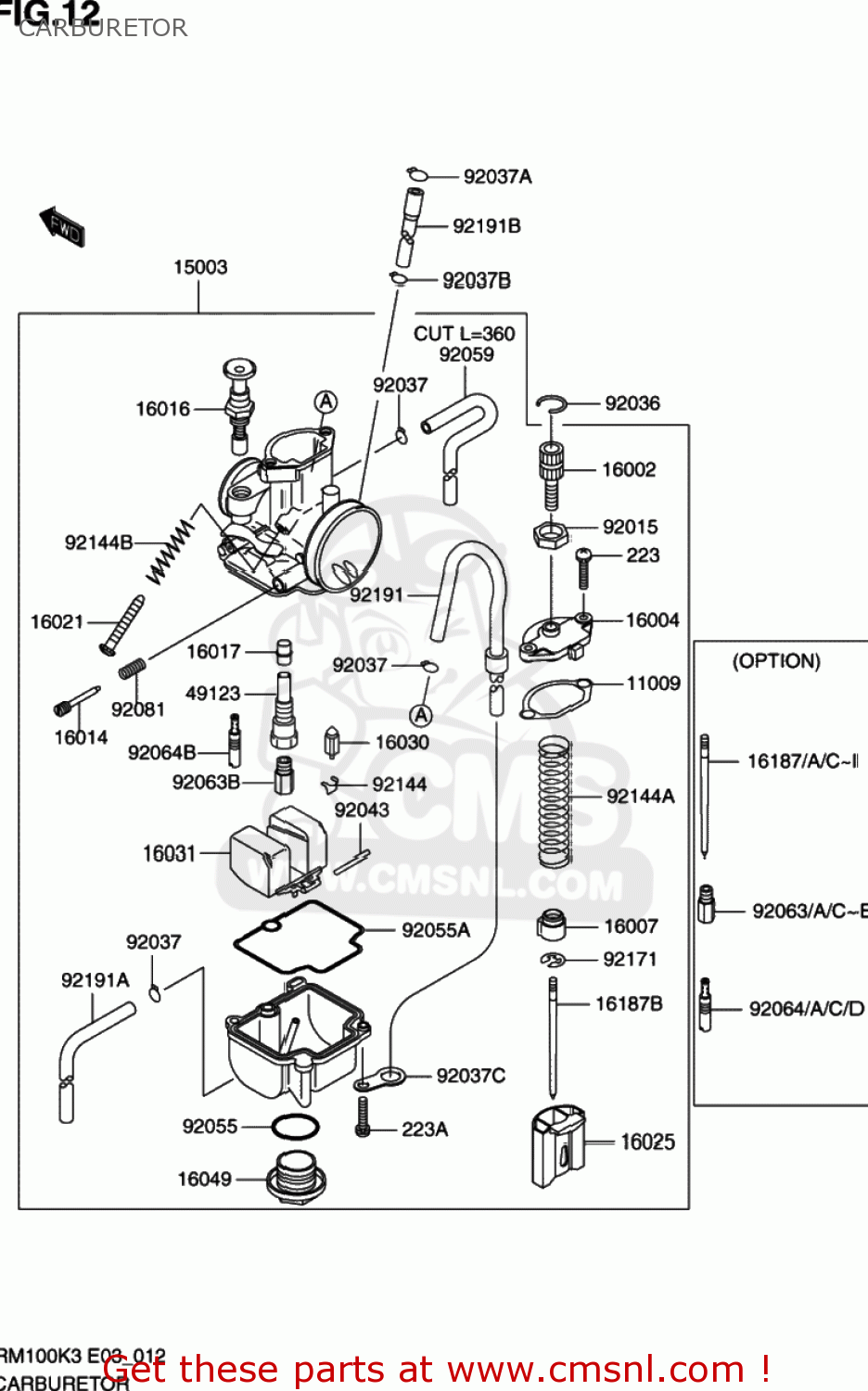

CARBURETOR

ref

part #

description

quantity

223

KK223C0414
ref: 223
K223A-B0414

SCREW-PAN-WS-CROS

€ 1.50

223A

KK223C0416
ref: 223A

SCREW-PAN-WS-CROS

€ 0.00

11009

K110091759
ref: 11009

GASKET,MIXING CHAMBER (NAS)

€ 0.00

15003

K150031643
ref: 15003

CARBURETOR-ASSY

€ 0.00

16002

K160021056
ref: 16002

ADJUSTER-CABLE

€ 0.00

16004

K160041065
ref: 16004

CAP-CHAMBER,MIXING

€ 0.00

16007

K160071155
ref: 16007

SEAT-SPRING,THROTTLE VALVE

€ 0.00

16014

K160141058
ref: 16014

SCREW-PILOT AIR

€ 0.00

16016

K160161075
ref: 16016

PLUNGER,STARTER

€ 0.00

16017

K160171431
ref: 16017

JET-NEEDLE

€ 0.00

16021

K160211161
ref: 16021

SCREW-THROTTLE STOP

€ 0.00

16025

K160251220
ref: 16025

VALVE-THROTTLE,CA3.5

€ 0.00

16030

K160301064
ref: 16030

VALVE-FLOAT

€ 0.00

16031

K160311065
ref: 16031

FLOAT

€ 0.00

16049

K160491051
ref: 16049

COVER-MAIN JET

€ 22.50

16187

K161871177
ref: 16187

NEEDLE-JET,NAPD

€ 0.00

16187A

K161871178
ref: 16187A

NEEDLE-JET,NAPE

€ 0.00

16187B

K161871179
ref: 16187B

NEEDLE-JET,NAPF

€ 0.00

16187C

K161871180
ref: 16187C

NEEDLE-JET,NAPG

€ 0.00

16187D

K161871181
ref: 16187D

NEEDLE-JET,NAPH

€ 0.00

16187E

K161871183
ref: 16187E

NEEDLE-JET,NAQD

€ 0.00

16187F

K161871184
ref: 16187F

NEEDLE-JET,NAQE

€ 0.00

16187G

K161871185
ref: 16187G

NEEDLE-JET,NAQF

€ 0.00

16187H

K161871186
ref: 16187H

NEEDLE-JET,NAQG

€ 0.00

16187I

K161871187
ref: 16187I

NEEDLE-JET,NAQH

€ 0.00

49123

K491231054
ref: 49123

HOLDER-MAIN JET

€ 0.00

92015

K920151574
ref: 92015

NUT,CABLE ADJUST LOCK

€ 0.00

92036

KK92036018
ref: 92036

RING-SNAP

€ 3.50

92037

K920371396
ref: 92037

CLAMP,TUBE

€ 4.50

92037A

KK92037147
ref: 92037A

CLAMP,TUBE

€ 8.00

92037B

K920371712
ref: 92037B

CLAMP

€ 3.00

92037C

K920371969
ref: 92037C

CLAMP,HOSE

€ 0.00

92043

K920431148
ref: 92043

PIN,FLOAT

€ 0.00

92055

K920551167
ref: 92055

RING-O,MAIN JET COVER

€ 8.50

92055A

K920551389
ref: 92055A

RING-O,FLOAT CHAMBER

€ 0.00

92059

K920591898
ref: 92059

TUBE,4X7X480

€ 0.00

92063

K920631337
ref: 92063

JET-MAIN,#132

€ 0.00

92063A

K920631338
ref: 92063A

JET-MAIN,#135

€ 0.00

92063B

K920631359
ref: 92063B

JET-MAIN,#138

€ 0.00

92063C

K920631360
ref: 92063C

JET-MAIN,#140

€ 0.00

92063D

K920631361
ref: 92063D

JET-MAIN,#142

€ 0.00

92063E

K920631363
ref: 92063E

JET-MAIN,#148

€ 0.00

92064

K920641140
ref: 92064

JET-PILOT,#40

€ 10.50

92064A

K920641141
ref: 92064A

JET-PILOT,#42

€ 10.50

92064B

K920641142
ref: 92064B

JET-PILOT,#45

€ 10.50

92064C

K920641143
ref: 92064C

JET-PILOT,#48

€ 0.00

92064D

K920641144
ref: 92064D

JET-PILOT,#50

€ 0.00

92081

K920811555
ref: 92081

SPRING,ADJUST SCREW

€ 0.00

92144

K921441178
ref: 92144

SPRING,FLOAT VALVE

€ 0.00

92144A

K921441566
ref: 92144A

SPRING,THROTTLE VALVE

€ 0.00

92144B

K921441782
ref: 92144B

SPRING,THROTTLE STOP SCREW

€ 0.00

92171

K921711323
ref: 92171

CLAMP

€ 0.00

92191

K921911243
ref: 92191

TUBE,4X7X560

€ 0.00

92191A

K921911591
ref: 92191A

TUBE,4X7X420

€ 0.00

92191B

K921911610
ref: 92191B

TUBE

€ 0.00
