FRONT FORK

RM100 2003 (K3) USA (E03)

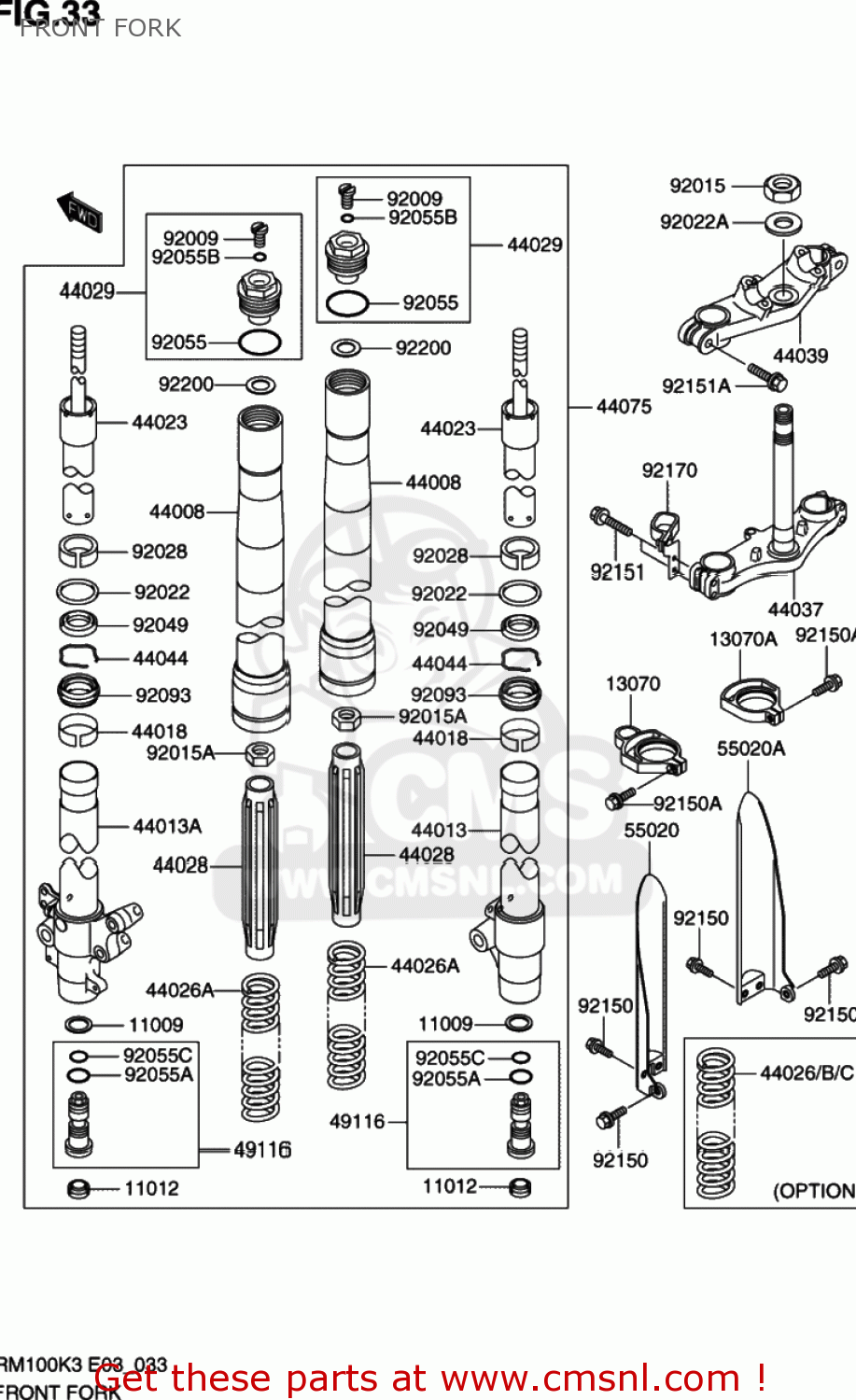

Front fork diagram RM100 2003 (K3) USA (E03)

FRONT FORK RM100 2003 (K3) USA (E03)
FRONT FORK RM100 2003 (K3) USA (E03)
FRONT FORK RM100 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
670
KK670B2018
ref: 670
O RING,18MM
€ 4.50
670A
KK670B1503
ref: 670A
O RING
€ 3.50
11009
K110091592
ref: 11009
GASKET,FORK CYLINDER BOLT (NAS)
€ 0.00
11012
K110121692
ref: 11012
CAP
€ 4.00
13070
KK130701310RZ
ref: 13070
KK130-70004-9RZ
GUIDE,PROTECTOR,LH,WHITE
€ 6.50
13070A
KK130701311RZ
ref: 13070A
KK130-70005-0RZ
GUIDE,PROTECTOR,RH,WHITE
€ 6.50
44008
KK440081041JS
ref: 44008
PIPE-FORK OUTER
€ 0.00
44013
K440131442
ref: 44013
PIPE-FORK INNER,RH
€ 0.00
44013A
K440131484
ref: 44013A
PIPE-FORK INNER,LH
€ 0.00
44018
K440181058
ref: 44018
PISTON-FORK
€ 0.00
44023
K440231119
ref: 44023
CYLINDER-SET-FORK
€ 0.00
44026
K440261633
ref: 44026
SPRING-FRONT FORK,K=0.28
€ 0.00
44026A
K440261634
ref: 44026A
SPRING-FRONT FORK,K=0.29
€ 0.00
44026B
K440261635
ref: 44026B
SPRING-FRONT FORK,K=0.30
€ 0.00
44026C
K440261671
ref: 44026C
SPRING-FRONT FORK,K=0.27
€ 0.00
44028
K440281090
ref: 44028
GUIDE-FORK SPRING
€ 0.00
44029
K440291152
ref: 44029
SEAT-FORK SPRING
€ 0.00
44037
K440371360
ref: 44037
HOLDER-FORK UNDER
€ 0.00
44039
K440391294
ref: 44039
HOLDER-FORK UPPER
€ 0.00
44075
KK440751131JS
ref: 44075
DAMPER-SET-FORK,BRONZE
€ 0.00
49116
K491161153
ref: 49116
VALVE-ASSY,FORK
€ 0.00
55020
KK550201611RZ
ref: 55020
GUARD,FORK,LH
€ 0.00
55020A
KK550201612RZ
ref: 55020A
GUARD,FORK,RH
€ 0.00
92009
K920091568
ref: 92009
SCREW
€ 0.00
92015
K920151653
ref: 92015
NUT,STEERING STEM,22MM
€ 9.50
92015A
K920151839
ref: 92015A
NUT
€ 0.00
92022
K920221275
ref: 92022
WASHER,FRONT FORK
€ 0.00
92022A
K920221873
ref: 92022A
WASHER,STEERING STEM
K920221873
€ 4.50
92028
K920281656
ref: 92028
BUSHING
€ 0.00
92033
K920331100
ref: 92033
RING-SNAP,FORK OIL SEAL
€ 0.00
92049
K920491394
ref: 92049
SEAL-OIL,FORK OUTER TUBE
€ 0.00
92055
K920551123
ref: 92055
RING-O
€ 0.00
92055A
K920551502
ref: 92055A
RING-O,FORK VALVE
€ 0.00
92093
K920931426
ref: 92093
SEAL,FORK OUTER TUBE
€ 0.00
92150
K921501505
ref: 92150
BOLT,6X14
K921501505
€ 4.00
92150A
K921501802
ref: 92150A
BOLT,5X16
€ 0.00
92151
K921511877
ref: 92151
BOLT,FLANGED,8X40
€ 9.00
92151A
K921511878
ref: 92151A
BOLT,FLANGED,8X35
€ 5.50
92170
K921701810
ref: 92170
CLAMP
€ 0.00
92200
K922001655
ref: 92200
WASHER
€ 0.00
