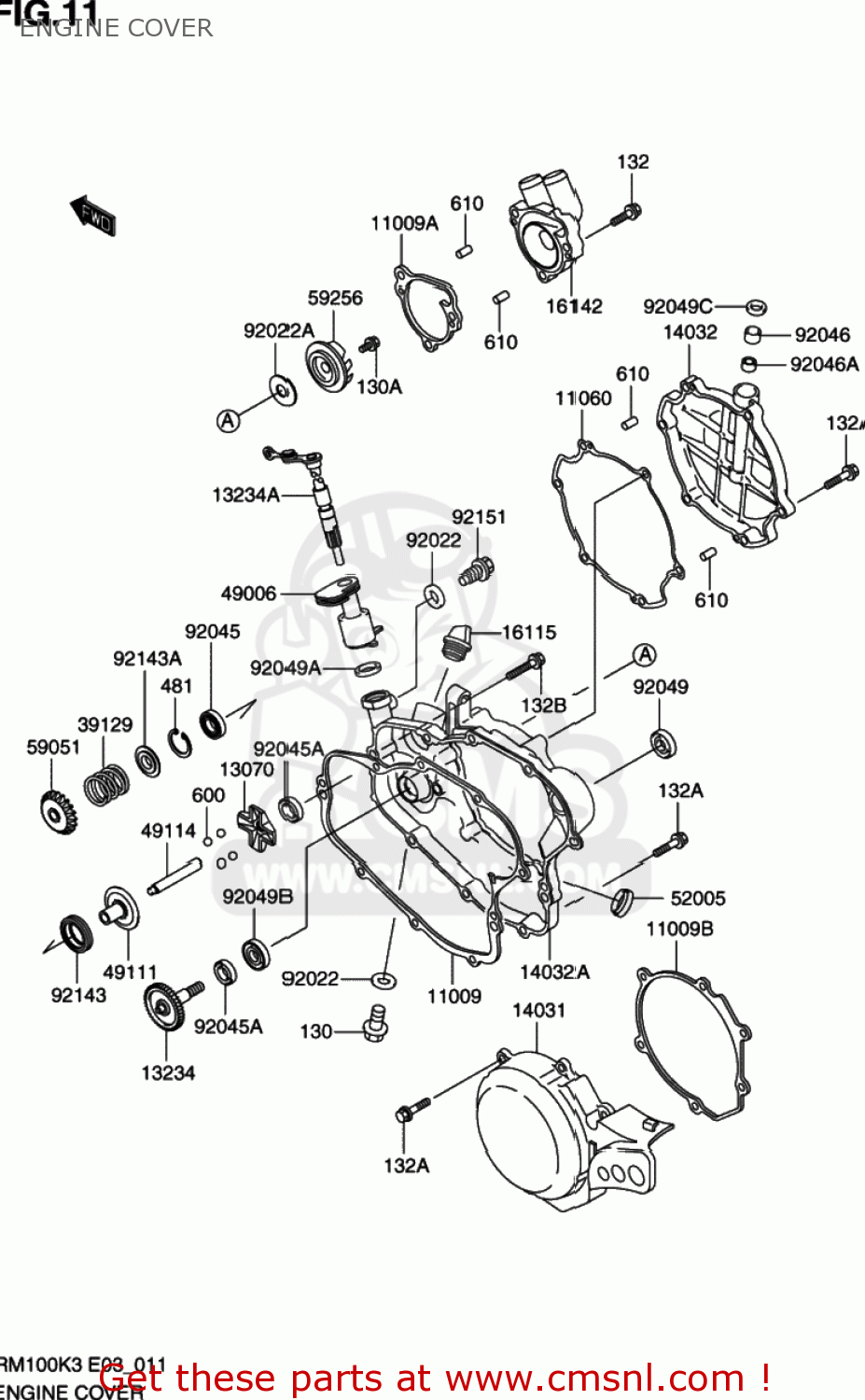

ENGINE COVER

ref

part #

description

quantity

130

KK130G0608
ref: 130

BOLT-FLANGED

€ 0.00

130A

KK130P0510
ref: 130A
K130C-A0510

BOLT FLANGED

€ 1.00

132

KK132G0620
ref: 132
K132B-A0620

BOLT FLANGED S

€ 1.50

132A

KK132G0625
ref: 132A
K132B-A0625

BOLT,FLANGED S

€ 2.00

132B

KK132V0630
ref: 132B

BOLT-FLANGED-SMALL

€ 1.50

481

KK481J2400
ref: 481

CIRCLIP

€ 0.00

600

KK600A1000
ref: 600

BALL-STEEL,5/16

€ 1.50

610

KK610A0408
ref: 610

ROLLER,4X8

€ 1.50

11009

K110091971
ref: 11009
K1106-10122

GASKET,CLUTCH COVER (NAS)

€ 3.50

11009A

K110091972
ref: 11009A

GASKET,PUMP COVER (NAS)

€ 0.00

11009B

K110091973
ref: 11009B

GASKET,GENERATOR COVER (NAS)

€ 0.00

11060

K110601795
ref: 11060

GASKET,CLUTCH COVER (NAS)

€ 0.00

13070

K130701309
ref: 13070

GUIDE

€ 0.00

13234

K132341103
ref: 13234

SHAFT-COMP,WATER PUMP

€ 0.00

13234A

K132341104
ref: 13234A
K1332-00002

LEVER ASSY

€ 16.00

14031

K140311241
ref: 14031

COVER-GENERATOR

€ 0.00

14032

K140321463
ref: 14032

COVER-CLUTCH,OUTSIDE

€ 0.00

14032A

K140321514
ref: 14032A
K1403-20041

COVER,GENERATOR

€ 90.50

16115

KK16115018
ref: 16115

CAP-OIL FILLER

€ 10.00

16142

K161421144
ref: 16142

COVER-PUMP,WATER

€ 0.00

39129

K391291022
ref: 39129

SPRING,GOVERNOR

€ 0.00

49006

K490061313
ref: 49006

BOOT,GOVERNOR

€ 0.00

49111

K491111064
ref: 49111

HOLDER

€ 0.00

49114

K491141106
ref: 49114

SHAFT-GOVERNOR

€ 0.00

52005

K520051055
ref: 52005
K5200-50019

GAUGE,OIL LEVE

€ 12.00

59051

K590511412
ref: 59051

GEAR-SPUR

€ 0.00

59256

K592561064
ref: 59256

IMPELLER

€ 25.50

92022

KK92022077
ref: 92022

WASHER,6.1X12X1

€ 3.00

92022A

K920221380
ref: 92022A

WASHER,5.2X13X1

€ 3.50

92045

K920451246
ref: 92045

BEARING-BALL,6901

€ 0.00

92045A

K920451305
ref: 92045A

BEARING-BALL,608MC3

€ 11.00

92046

K920461160
ref: 92046

BEARING-NEEDLE,HK1010

€ 9.50

92046A

K920461217
ref: 92046A

BEARING-NEEDLE,6BTM109

€ 12.00

92049

KK92049002
ref: 92049

SEAL-OIL,SB16244

€ 7.50

92049A

K920491262
ref: 92049A

SEAL-OIL

€ 5.50

92049B

K920491366
ref: 92049B

SEAL-OIL,MHSD8X18X10J-1

€ 15.50

92049C

K920491414
ref: 92049C

SEAL-OIL,BG1408F0

€ 5.00

92143

K921431932
ref: 92143

COLLAR

€ 0.00

92143A

K921431933
ref: 92143A

COLLAR

€ 0.00

92151

K921511180
ref: 92151

BOLT

€ 0.00
