REAR HUB

RM100 2003 (K3) USA (E03)

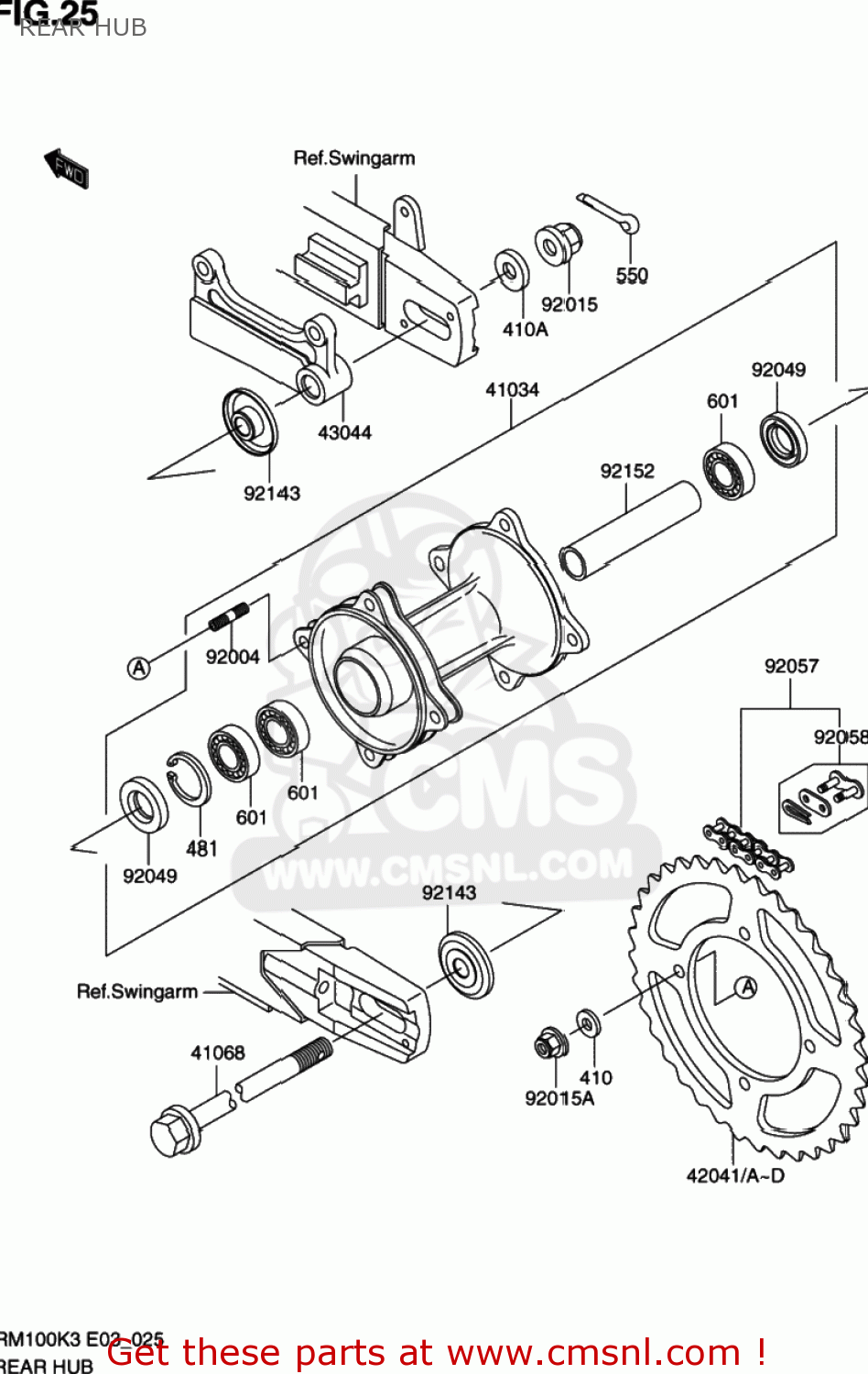

Rear hub diagram RM100 2003 (K3) USA (E03)

REAR HUB RM100 2003 (K3) USA (E03)
REAR HUB RM100 2003 (K3) USA (E03)
REAR HUB RM100 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
410
KK410B0800
ref: 410
K410A-A0800
WASHER PLAIN S
€ 1.50
410A
KK410B1400
ref: 410A
WASHER-PLAIN-SMALL,14MM
€ 0.00
481
KK481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
KK481J3500
€ 2.50
550
KK550D2520
ref: 550
PIN-COTTER,2.5X20
€ 0.00
601
KKK601B6202UU
ref: 601
BEARING-BALL
€ 0.00
41034
K410341323
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 0.00
41068
K410681401
ref: 41068
AXLE,RR
€ 0.00
42041
K420411207
ref: 42041
SPROCKET-HUB,49T
€ 0.00
42041A
K420411228
ref: 42041A
SPROCKET-HUB,50T
€ 0.00
42041B
K420411229
ref: 42041B
SPROCKET-HUB,51T
€ 0.00
42041C
K420411245
ref: 42041C
SPROCKET-HUB,52T
€ 0.00
42041D
K420411246
ref: 42041D
SPROCKET-HUB,53T
€ 0.00
43044
K430441122
ref: 43044
HOLDER-COMP-CALIPER
€ 0.00
92004
K920041183
ref: 92004
STUD,8X16
€ 0.00
92015
K920151401
ref: 92015
NUT,FLANGED,14MM
K920151401
€ 9.50
92015A
K920151432
ref: 92015A
NUT,8MM
K920151432
€ 5.50
92049
K920491469
ref: 92049
SEAL-OIL
€ 0.00
92057
K920571497
ref: 92057
CHAIN,DRIVE,DID420DS2X124L
€ 0.00
92058
K920581086
ref: 92058
JOINT-CHAIN,DRIVE
€ 0.00
92143
K921431938
ref: 92143
COLLAR,RR AXLE,L=12.5
€ 0.00
92152
K921521090
ref: 92152
COLLAR,RR BRAKE DRUM,L=95
€ 0.00
