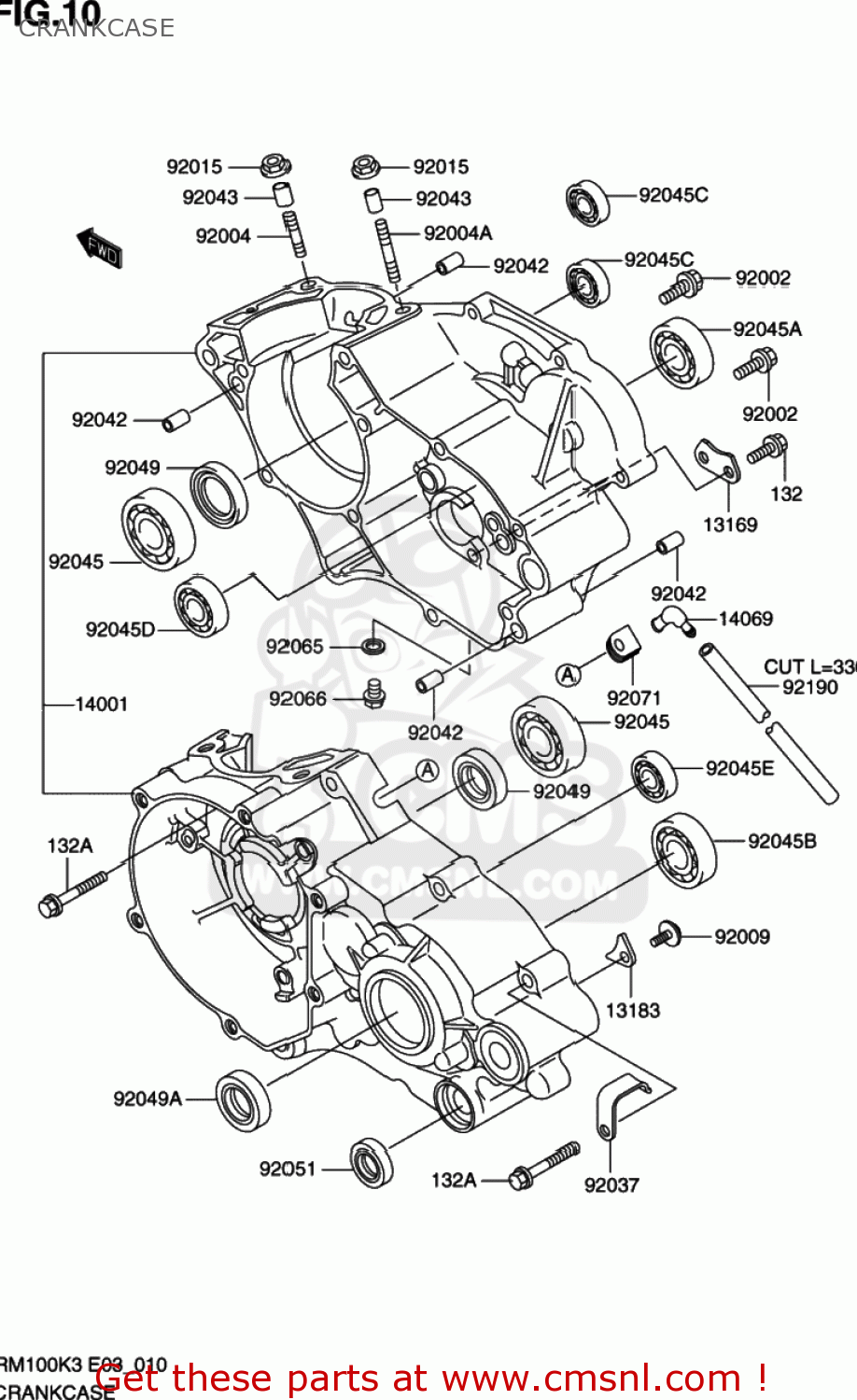

CRANKCASE

ref

part #

description

quantity

132

KK132V0635
ref: 132

BOLT,FLANGED S

€ 1.50

13169

KK13169012
ref: 13169

PLATE,CHANGE DRUM

€ 0.00

13183

K131831182
ref: 13183

PLATE

€ 3.00

14001

K140011313
ref: 14001

SET-CRANKCASE

€ 0.00

14069

K140691001
ref: 14069
K1406-91062

BREATHER

€ 16.00

92002

K920021659
ref: 92002

BOLT,6X16

€ 0.00

92004

K920041252
ref: 92004

STUD,8X28.5

€ 0.00

92004A

K920041254
ref: 92004A

STUD,8X37

€ 0.00

92009

K920091563
ref: 92009

SCREW,6X10

€ 0.00

92015

K920151143
ref: 92015

NUT,8MM

€ 1.50

92037

K920371318
ref: 92037

CLAMP,HARNESS

€ 0.00

92042

KK92042007
ref: 92042

PIN,DOWEL,6.3X8X14

€ 5.00

92043

K920431264
ref: 92043

PIN,8.2X10X14

€ 2.50

92045

K920451059
ref: 92045

BEARING-BALL,R-6304C3

€ 29.00

92045A

K920451118
ref: 92045A

BEARING-BALL,6004TMB

€ 0.00

92045B

K920451226
ref: 92045B

BEARING-BALL,6204

€ 0.00

92045C

K920451304
ref: 92045C

BEARING-BALL,626MC3

€ 10.50

92045D

K920451360
ref: 92045D

BEARING-BALL,TMB002

€ 0.00

92045E

K920451450
ref: 92045E

BEARING-BALL,16101JRXC3

€ 0.00

92049

K920491188
ref: 92049

SEAL-OIL,SD20407GS

€ 15.00

92049A

K920491292
ref: 92049A

SEAL-OIL,TC25375

€ 0.00

92051

KK92051005
ref: 92051

SEAL-OIL,TB13225.5

€ 6.50

92059

K920591868
ref: 92059

TUBE,6X9X380

€ 0.00

92065

KK92065058
ref: 92065

GASKET,10.5X16X1 (NAS)

€ 3.50

92066

K920661437
ref: 92066

PLUG,DRAIN

€ 5.50

92071

KK92071042
ref: 92071

GROMMET,BREATHER

€ 2.50

92150

K921501599
ref: 92150

BOLT,6X12

€ 2.50
