MUFFLER

RM100 2003 (K3) USA (E03)

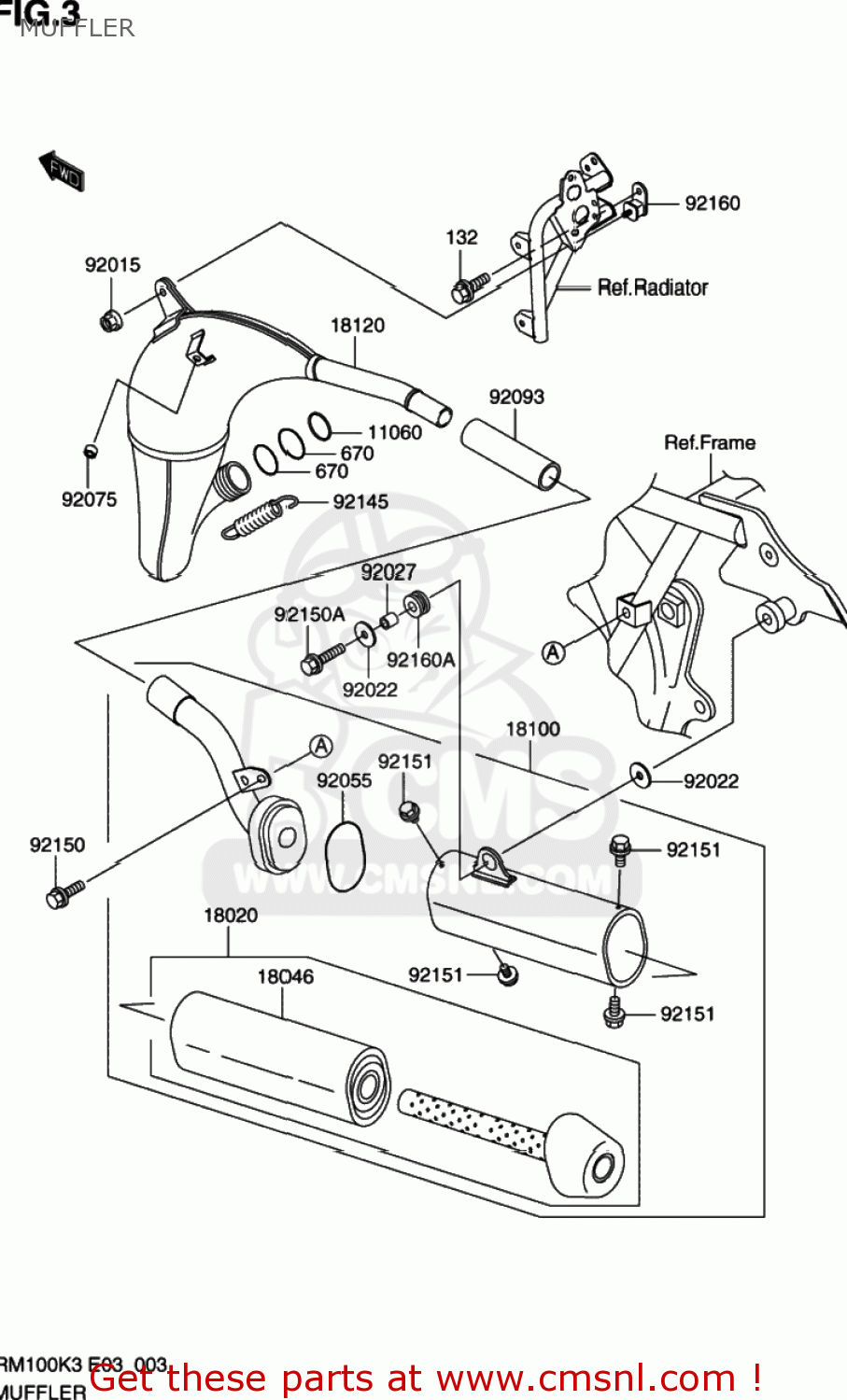

Muffler diagram RM100 2003 (K3) USA (E03)

MUFFLER RM100 2003 (K3) USA (E03)
MUFFLER RM100 2003 (K3) USA (E03)
MUFFLER RM100 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
670
KK670E3034
ref: 670
O RING
€ 0.00
11060
K110601842
ref: 11060
GASKET,EXHAUST HOLDER (NAS)
€ 0.00
18020
K180201272
ref: 18020
BAFFLE
€ 0.00
18046
K180461559
ref: 18046
WOOL
€ 0.00
18100
K181001084
ref: 18100
BODY-ASSY-MUFFLER
€ 0.00
18120
K181201127
ref: 18120
CHAMBER-EXHAUST
€ 0.00
92015
K920151078
ref: 92015
K9221-00630
NUT,FLANGED,6MM
K920151078
€ 1.50
92022
KK92022237
ref: 92022
WASHER,6.5X22X1.6
€ 2.50
92027
KK92027120
ref: 92027
COLLAR,6.8X10X10.5
€ 0.00
92055
K920551461
ref: 92055
RING-O,BAFFLE PIPE
€ 0.00
92075
K920751598
ref: 92075
DAMPER
€ 0.00
92093
K920931200
ref: 92093
SEAL,MUFFLER JOINT
€ 0.00
92145
K921451340
ref: 92145
SPRING,EXHAUST CONNECTING
K921451340
€ 10.50
92150
K921501504
ref: 92150
BOLT,FLANGED,6X14
€ 3.00
92150A
K921501507
ref: 92150A
BOLT,FLANGED,6X25
€ 0.00
92150B
K921501599
ref: 92150B
BOLT,6X12
€ 2.50
92151
K921511822
ref: 92151
BOLT,6X10
€ 1.50
92160
K921601176
ref: 92160
DAMPER,MUFFLER,FR
K921601176
€ 22.50
92160A
K921601913
ref: 92160A
DAMPER,MUFFLER FITTING
€ 1.50
