SWINGARM

RM100 2003 (K3) USA (E03)

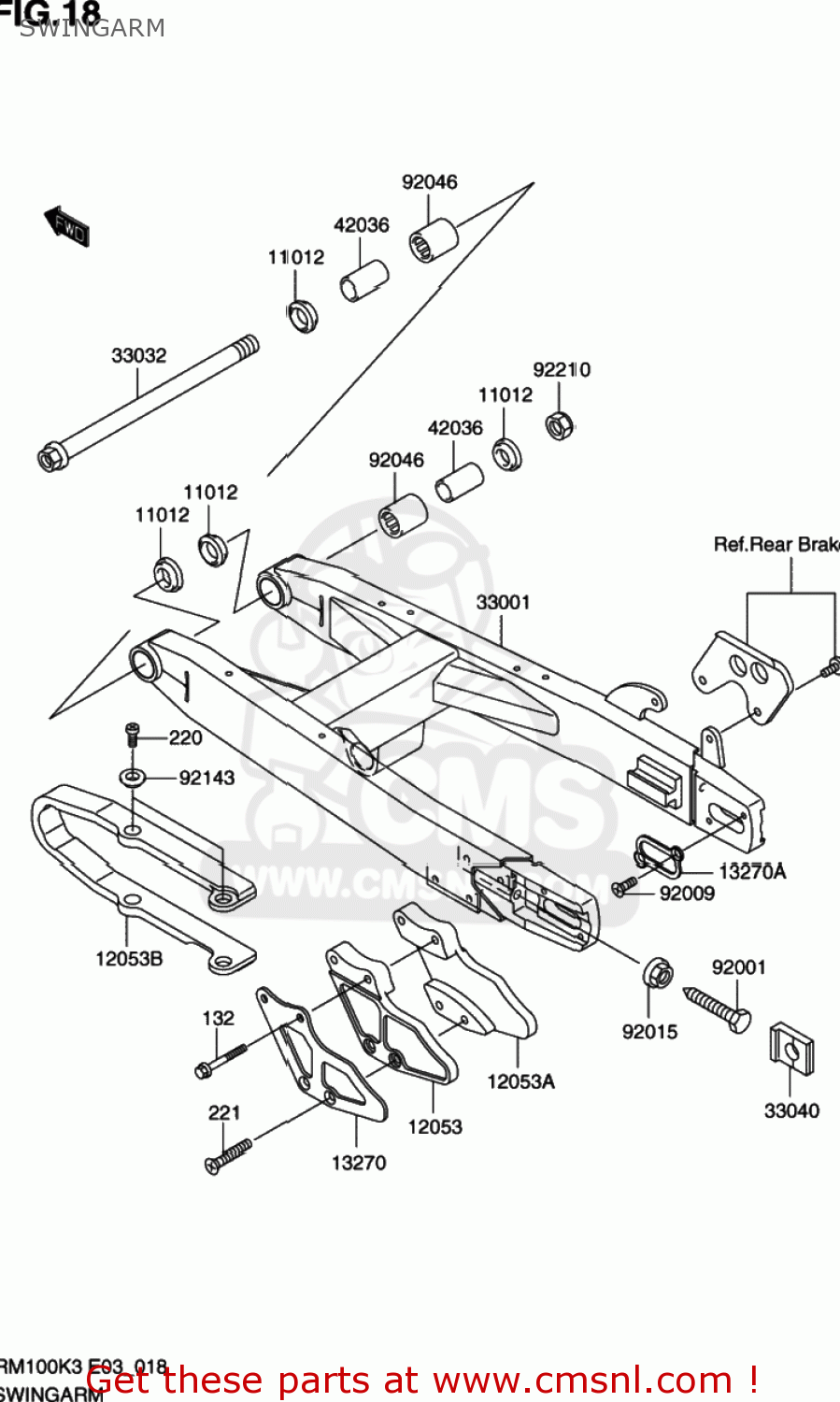

Swingarm diagram RM100 2003 (K3) USA (E03)

SWINGARM RM100 2003 (K3) USA (E03)
SWINGARM RM100 2003 (K3) USA (E03)
SWINGARM RM100 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
132
KK132V0650
ref: 132
K132B-A0650
BOLT-FLANGED-S
€ 2.00
220
KK220B0508
ref: 220
K220A-A0508
SCREW PAN CROS
KK220B0508
€ 1.00
221
KK221B0645
ref: 221
SCREW-CSK-CROS,6X45
€ 0.00
11012
K110121263
ref: 11012
CAP
K110121263
€ 11.00
12053
K120531203
ref: 12053
GUIDE-CHAIN,RR,LH
€ 0.00
12053A
K120531204
ref: 12053A
GUIDE-CHAIN,RR,RH
€ 0.00
12053B
K120531414
ref: 12053B
GUIDE-CHAIN,FR
€ 0.00
13270
K132701829
ref: 13270
PLATE,GUIDE CHAIN
€ 0.00
13270A
K132701899
ref: 13270A
PLATE
€ 0.00
33001
KK330011543CE
ref: 33001
ARM-COMP-SWING
€ 0.00
33032
K330321161
ref: 33032
SHAFT-SWING ARM
€ 0.00
33040
K330401173
ref: 33040
K3304-00039
ADJUSTER-CHAIN
€ 6.00
42036
K420361067
ref: 42036
SLEEVE,SWING ARM,L=34
€ 7.00
92001
K920011179
ref: 92001
BOLT,8X46
€ 12.00
92009
K920091828
ref: 92009
SCREW,5X10
€ 1.50
92015
K920151014
ref: 92015
NUT,FLANGED,8MM
K920151014
€ 3.50
92046
K920461046
ref: 92046
BEARING-NEEDLE
€ 18.50
92143
K921431676
ref: 92143
COLLAR
K921431676
€ 5.00
92210
K922101249
ref: 92210
NUT,LOCK,12MM
€ 0.00
