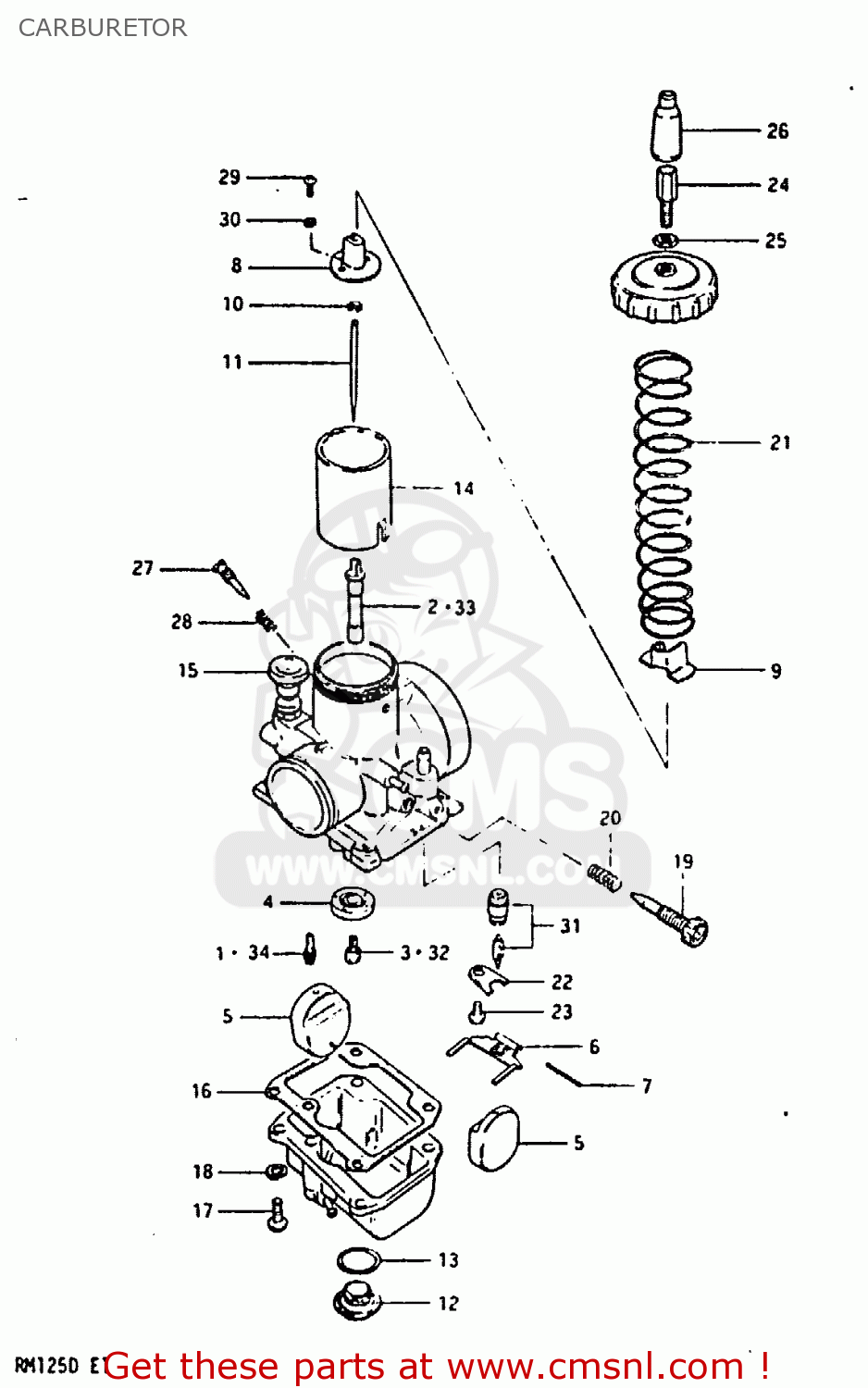

CARBURETOR

ref

part #

description

quantity

0

1320014120
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

0949230003
ref: 1

JET

€ 8.50

2

0949400318
ref: 2

JET,NEEDLE

€ 19.00

3

0949154001
ref: 3

JET

€ 11.50

4

1333140200
ref: 4

RING,MAIN JET FIXING

€ 8.00

5

1325216600
ref: 5

FLOAT

€ 17.50

6

1325314100
ref: 6

ARM,FLOAT

€ 6.50

7

1325401010
ref: 7

PIN,FLOAT

€ 3.00

8

1358140200
ref: 8

CONNECTOR

€ 7.00

9

1362940200
ref: 9

COVER,HOLDER

€ 4.00

10

1339410010
ref: 10

CLIP

€ 4.50

11

1338314100
ref: 11

NEEDLE,JET

€ 14.50

12

1324740200
ref: 12

PLUG

€ 9.50

13

0928020003
ref: 13

O RING(D:1.5,ID:19.5)

€ 2.50

14

1355114110
ref: 14

VALVE,THROTTLE

€ 80.00

15

1341014110
ref: 15

VALVE ASSEMBLY,STARTER

€ 38.00

16

1325140230
ref: 16

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

17

0211205168
ref: 17

SCREW

€ 2.50

18

0832121058
ref: 18

LOCK WASHER

€ 2.00

19

1326740230
ref: 19

SCREW,THROTTLE STOP

€ 7.50

20

1326893100
ref: 20

SPRING

€ 3.50

21

1357341610
ref: 21

SPRING,THROTTLE VALVE RETURN

€ 8.50

22

1337339110
ref: 22

PLATE

€ 6.50

23

0211204068
ref: 23

SCREW 4X6

€ 2.00

24

1357741612
ref: 24

ADJUSTER,CABLE

€ 8.00

25

1366116600
ref: 25

NUT

€ 5.00

26

1368133010
ref: 26

CAP,CABLE ADJUSTER

€ 8.00

27

1326915010
ref: 27

SCREW,PILOT AIR

€ 10.50

28

1326801010
ref: 28

SPRING

€ 3.50

29

0211203088
ref: 29

SCREW

€ 1.50

30

0832121038
ref: 30

LOCK WASHER

€ 1.50

31

1337040600
ref: 31

VALVE ASSY,NEEDLE

€ 48.50

32-1

0949148001
ref: 32-1
OPT

JET

€ 13.00

32-2

0949150003
ref: 32-2
OPT

JET

€ 12.50

32-3

0949152001
ref: 32-3
OPT

JET

€ 7.50

32-4

0949156001
ref: 32-4
OPT

JET

€ 14.50

32-5

0949158001
ref: 32-5
OPT

JET

€ 7.50

33-1

0949400344
ref: 33-1
OPT

JET,NEEDLE

€ 14.00

33-2

0949400347
ref: 33-2
OPT

JET,NEEDLE

€ 8.50

34-1

0949225003
ref: 34-1
OPT

JET

€ 6.50

34-2

0949235004
ref: 34-2
OPT

JET,PILOT(35)

€ 7.50

all assemblies
