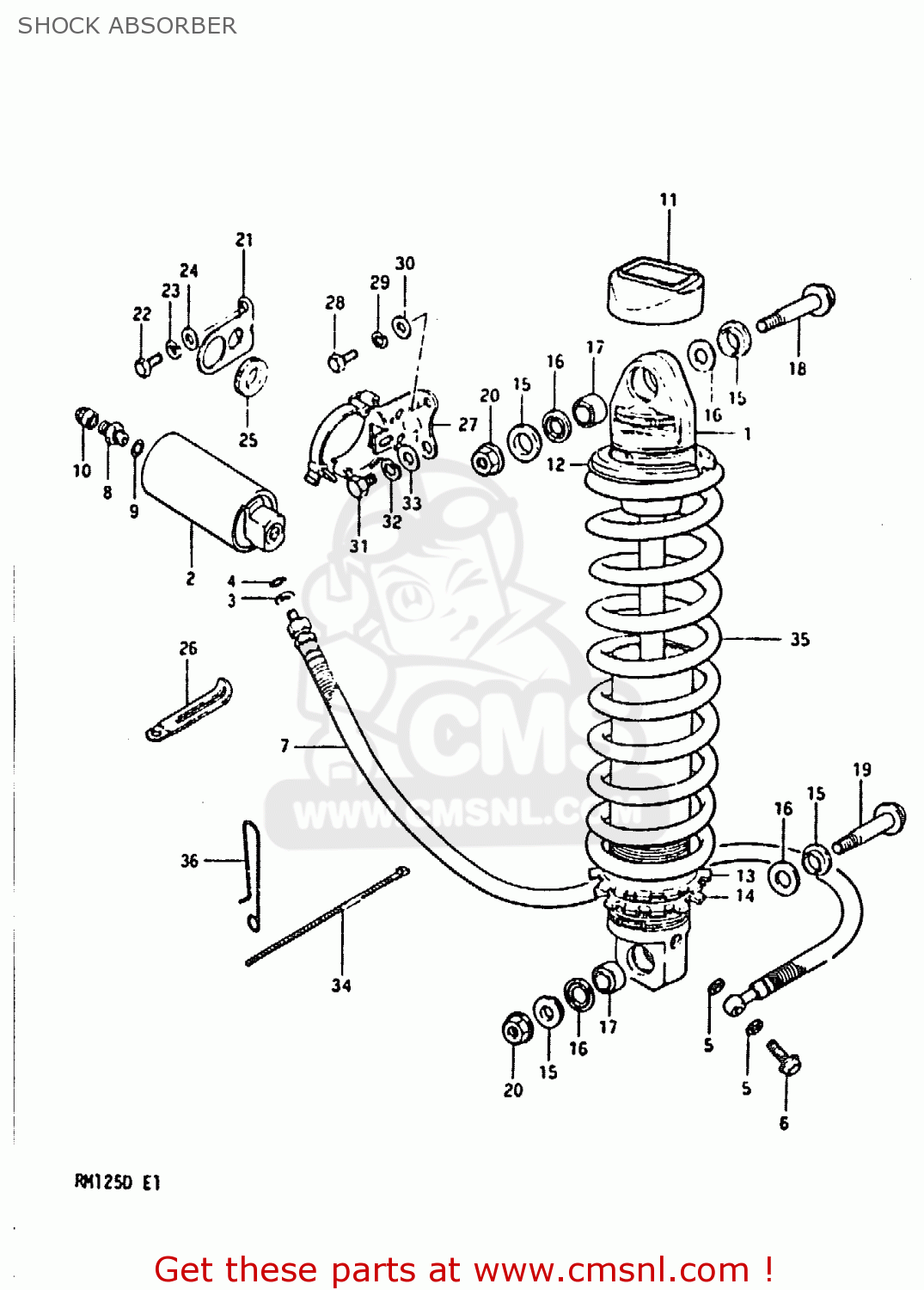

SHOCK ABSORBER

ref

part #

description

quantity

1

6210014140
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

2

6227014140
ref: 2

RESERVE TANK,REAR SHOCK

€ 0.00

3

6228514100
ref: 3

WASHER,REAR SHOCK HOSE

€ 3.00

4

6215440200
ref: 4

O-RING,RESERVE TANK

€ 1.50

5

5114841310
ref: 5

GASKET (NAS)

€ 2.50

6

6228114140
ref: 6

BOLT,REAR SHOCK ABSORBER

€ 0.00

7

6228014140
ref: 7

HOSE,REAR SHOCK ABSORBER

€ 0.00

8

5129349470
ref: 8

VALVE,FRONT FORK AIR

€ 8.50

9

5111714210
ref: 9

O-RING

€ 2.50

10

5129420400
ref: 10

CAP

€ 3.50

11

6217938200
ref: 11

CLIP

€ 0.00

12

6222514140
ref: 12

SPRING GUIDE

€ 0.00

13

6219114140
ref: 13

GUIDE,SPRING

€ 15.00

14

6219414140
ref: 14

GUIDE,REAR SHOCK ABSORBER SPRING

€ 0.00

15

6217714100
ref: 15

COLLAR

€ 16.00

16

6222614100
ref: 16

DUST SEAL,LWR

€ 8.00

17

0926910001
ref: 17

BEARING

€ 66.00

18

0910310039
ref: 18

BOLT

€ 6.50

19

0910310040
ref: 19

BOLT(10X54)

€ 5.50

20

0831931108
ref: 20

NUT

€ 3.00

21

6241114111
ref: 21

BRACKET,RESERVOIR TANK

€ 6.00

22

0110706128
ref: 22

BOLT

€ 2.00

23

0832121068
ref: 23

LOCK WASHER

€ 2.50

24

0832221068
ref: 24

WASHER

€ 2.00

25

6242314211
ref: 25

CUSHION,RESERVOIR TANK

€ 2.50

26

0940406415
ref: 26

CLAMP

€ 3.00

27

6242014121
ref: 27

BRACKET,RESERVOIR TANK

€ 23.00

28

0110706128
ref: 28

BOLT

€ 2.00

29

0832121068
ref: 29

LOCK WASHER

€ 2.50

30

0832221068
ref: 30

WASHER

€ 2.00

31

0110708168
ref: 31

BOLT

€ 2.00

32

0832121088
ref: 32

LOCK WASHER

€ 2.00

33

0832211088
ref: 33

WASHER

€ 2.00

34

0940716401
ref: 34

CLAMP

€ 4.50

35-1

6221114170
ref: 35-1
OPT

SPRING

€ 83.00

35-2

6221114160
ref: 35-2
OPT

SPRING

€ 100.00

36

6243114100
ref: 36

GUIDE RES HOSE CLAMP

€ 0.00

all assemblies
