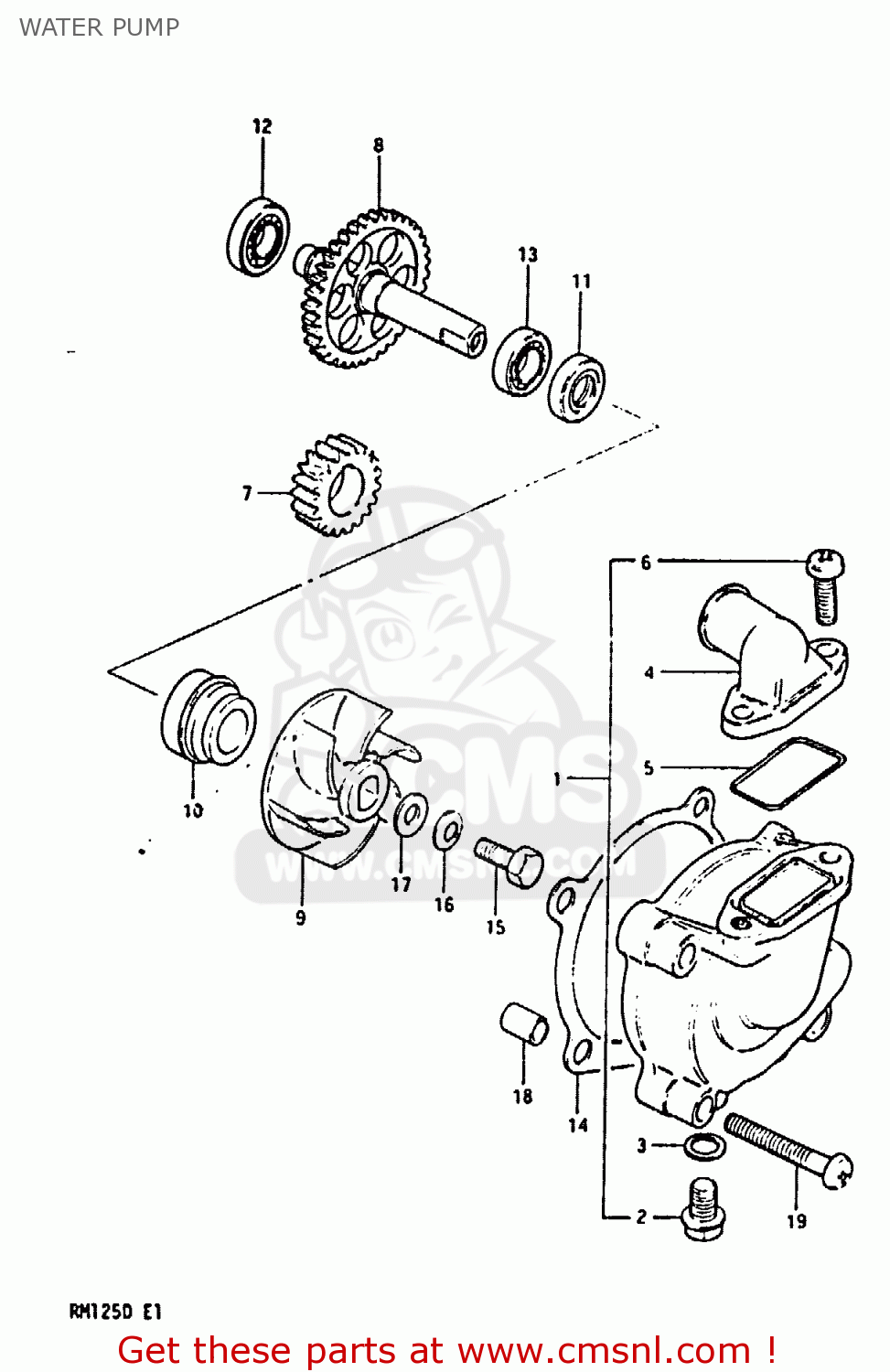

WATER PUMP

ref

part #

description

quantity

1

1741024110
ref: 1

CASE

€ 0.00

2

1741514300
ref: 2

BOLT,DRAIN

€ 2.00

3

1741314100
ref: 3

GASKET,DRAIN (NAS)

€ 1.00

4

1741214300
ref: 4

CONNECTOR

€ 23.50

5

1741414300
ref: 5

O RING,WATER PUMP CONNECTOR

€ 3.00

6

0211206165
ref: 6

SCREW

€ 2.00

7

1745114300
ref: 7

GEAR,WATER PUMP DRIVE

€ 20.00

8

1746114300
ref: 8

GEAR,WATER PUMP DRIVEN(NT:36)

€ 87.50

9

1749114110
ref: 9

IMPELLER,WATER PUMP

€ 17.00

10

1747014100
ref: 10

SEAL,WATER PUMP SHAFT

€ 21.50

11

0928310004
ref: 11

SEAL,OIL(10X21X5)

€ 4.50

12

0926210004
ref: 12

BEARING(10X22X6)

€ 20.50

13

0926212003
ref: 13

BEARING

€ 19.00

14

1743114111
ref: 14

GASKET,WATER PUMP CASE (MCA)

€ 16.00

15

0910006099
ref: 15

BOLT(6X13)

€ 2.00

16

0916406006
ref: 16

WASHER

€ 2.50

17

0916806016
ref: 17

GASKET (NAS)

€ 3.00

18

0421109129
ref: 18

PIN

€ 2.00

19

0211206408
ref: 19

SCREW

€ 2.00
