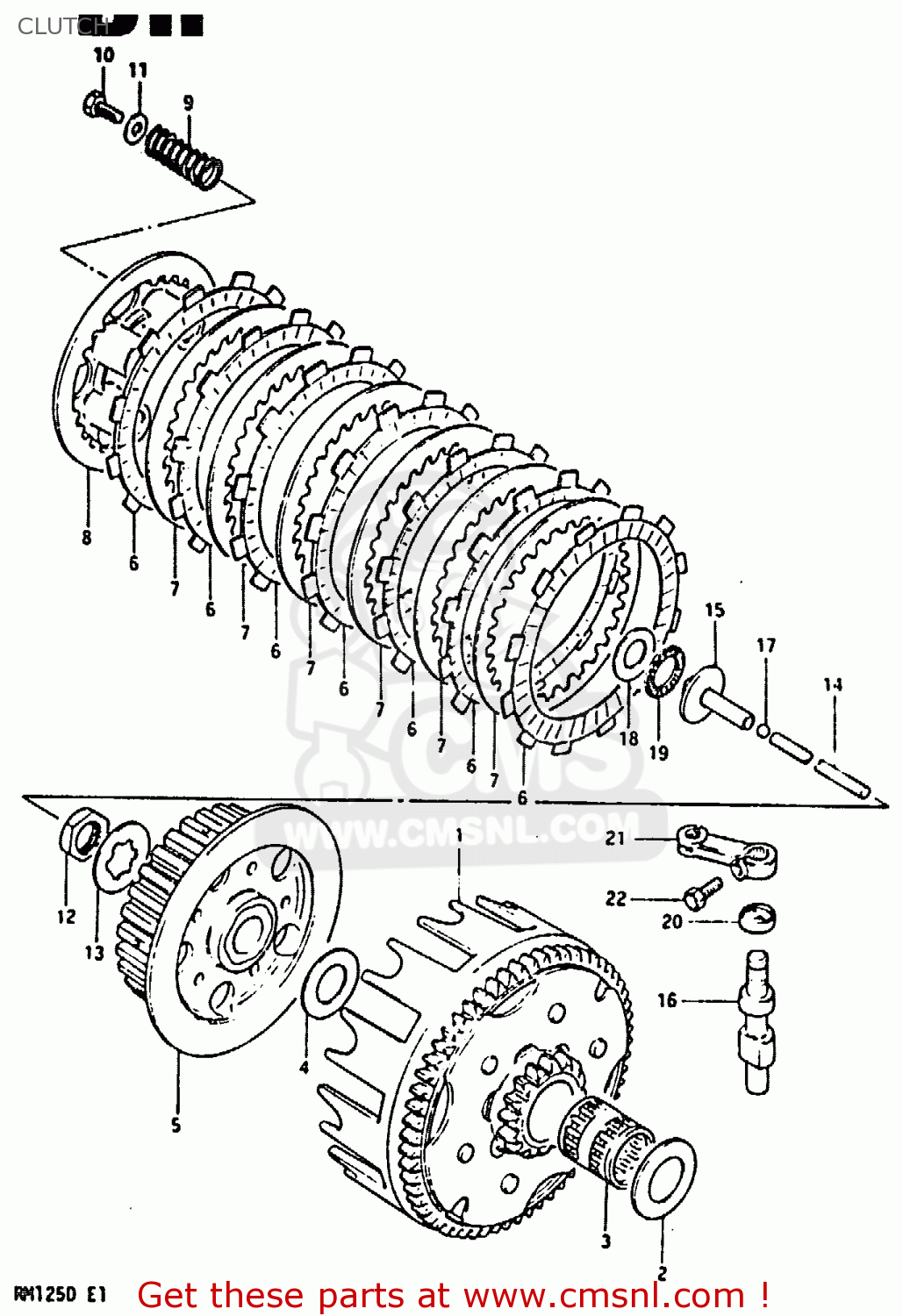

CLUTCH

ref

part #

description

quantity

1

2120014103
ref: 1
NT:60/16

GEAR ASSEMBLY,PRIMARY DRIVE

€ 437.00

2

0821120321
ref: 2

WASHER,THRUST

€ 3.00

3

0926320023
ref: 3

BEARING(20X25X26)

€ 15.00

4

0821117302
ref: 4

WASHER

€ 2.50

5

2141014101
ref: 5

HUB,CLUTCH SLEEVE

€ 258.00

6

2144128301
ref: 6

PLATE,CLUTCH DRIVE

€ 8.50

7

2145141700
ref: 7

PLATE,CLUTCH DRIVEN

€ 4.50

8

2146214102
ref: 8

PLATE,CLUTCH PRESSURE

€ 16.00

9

0944015014
ref: 9

SPRING

€ 4.00

10

0910005002
ref: 10

BOLT(5X16)

€ 2.00

11

0916005017
ref: 11

WASHER (5.5X16X1.2)

€ 2.50

12

0914016001
ref: 12

NUT

€ 4.50

13

0916717002
ref: 13

WASHER,LOCK

€ 2.00

14

2311114100
ref: 14

ROD,CLUTCH PUSH

€ 9.00

15

2312114110
ref: 15

PIECE,CLUTCH PUSH

€ 12.00

16

2326114102
ref: 16

CAMSHAFT,CLUTCH RELEASE

€ 38.00

17

0611107004
ref: 17

BALL

€ 1.50

18

0916015015
ref: 18

WASHER

€ 4.00

19

0926315003
ref: 19

BEARING(15X28X2)

€ 7.00

20

0928510002
ref: 20

OIL SEAL

€ 3.50

21

2327114101
ref: 21

ARM,CLUTCH RELEASE

€ 34.50

22

0110706168
ref: 22

BOLT, UPPER

€ 3.00
