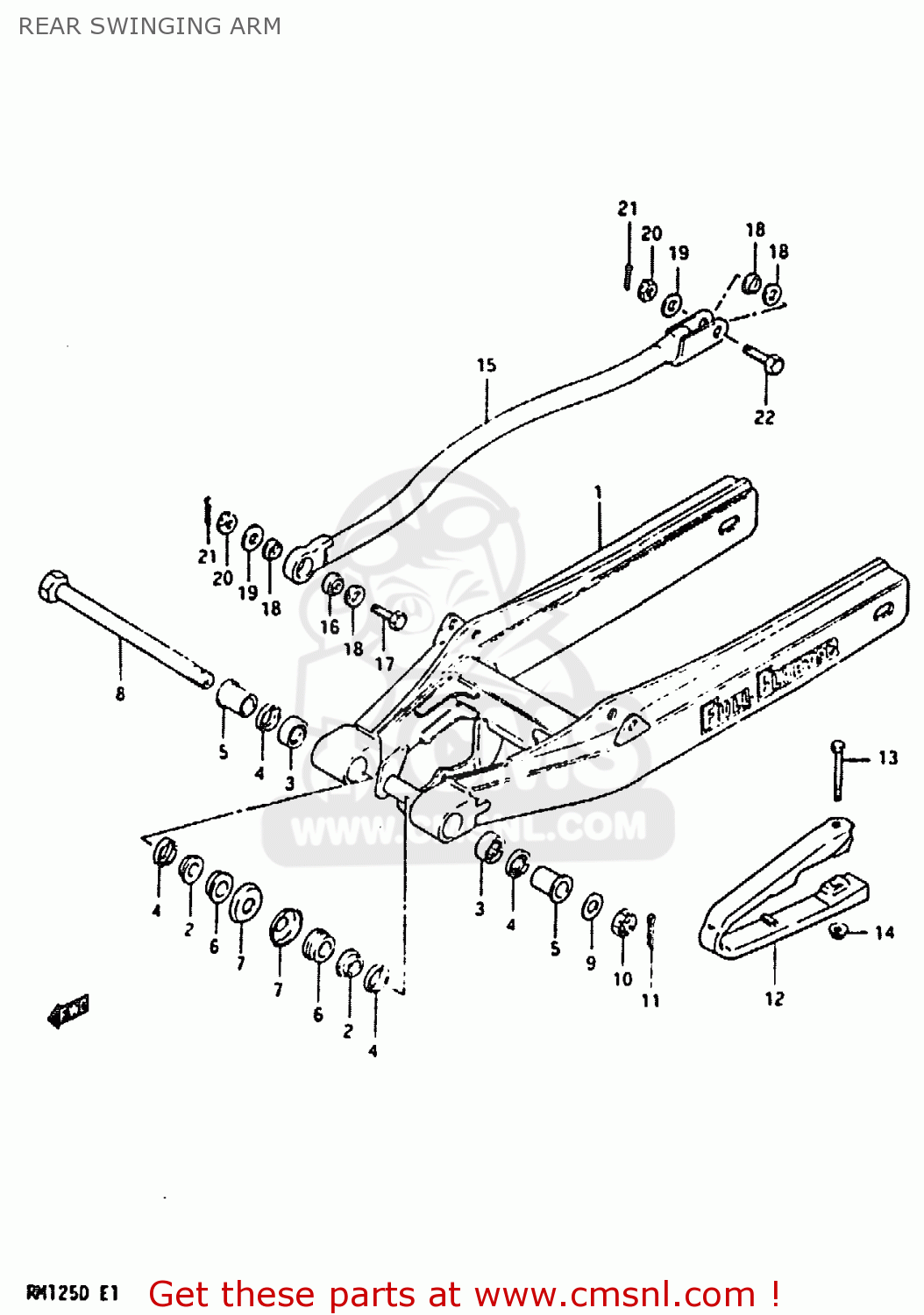

REAR SWINGING ARM

ref

part #

description

quantity

1

6100014120
ref: 1

SWING ARM ASSEMBLY,REAR

€ 0.00

2

6126114101
ref: 2

BUSH,RR SWINGINGARM PIVOT

€ 10.00

3

0926320041
ref: 3

BEARING(20X27X20)

€ 15.00

4

0928520005
ref: 4

OIL SEAL

€ 5.00

5

6125114100
ref: 5

SPACER,RR SWGARM PIVOT

€ 16.00

6

6125214100
ref: 6

SPACER,RR SWGARM PIVOT INNER

€ 12.50

7

6126240400
ref: 7

COVER,RR SWGARM DUST SEAL

€ 4.00

8

6121114102
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 47.50

9

0832211148
ref: 9

WASHER

€ 2.00

10

0831441148
ref: 10

NUT 14MM

€ 3.00

11

0411130308
ref: 11

COTTER PIN

€ 1.50

12

6127314211
ref: 12

BUFFER,CHAIN TOUCH DEFENSE

€ 25.00

13

0910006062
ref: 13

BOLT(6X70)

€ 3.50

14

0831931068
ref: 14

NUT

€ 2.50

15

6430014820
ref: 15

TORQUE LINK SET,RR

€ 125.50

16

6435240411
ref: 16

SPHERICAL BEARING,TORQUE

€ 69.50

17

0910108003
ref: 17

BOLT 8X28

€ 2.00

18

6433940410
ref: 18

6433940410

19

0832211088
ref: 19

WASHER

€ 2.00

20

0831441088
ref: 20

NUT 8MM

€ 2.50

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

0910108014
ref: 22

BOLT 8X29.5

€ 1.50
