CRANKCASE

RM125 1983 (D)

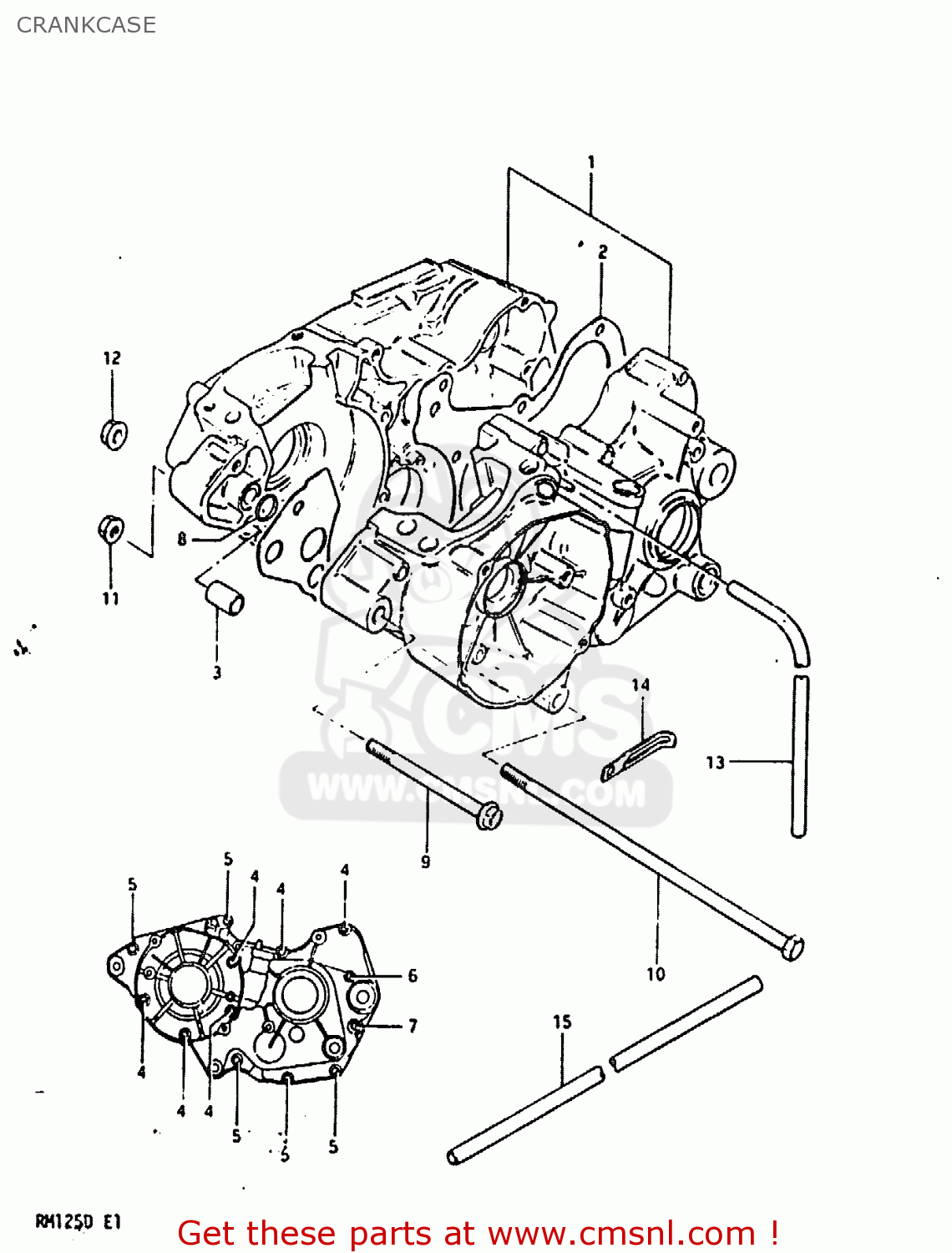

Crankcase diagram RM125 1983 (D)

CRANKCASE RM125 1983 (D)

CRANKCASE RM125 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

1130014880
ref: 1

CRANKCASE SET

€ 0.00

2

1148114110
ref: 2

GASKET,CRANKCASE (MCA)

€ 16.00

3

0920613001
ref: 3

PIN

€ 2.50

4

0211206458
ref: 4

SCREW (6X45)

€ 2.00

5

0211206508
ref: 5

SCREW

€ 2.50

6

0211206557
ref: 6

SCREW

€ 2.50

7

0211206658
ref: 7

SCREW 6X65

€ 2.00

8

0928014004
ref: 8

O RING(D:1.9,ID:13.8)

€ 1.50

9

0910308072
ref: 9

BOLT 8X90

€ 7.50

10

0910008190
ref: 10

BOLT 8X205

€ 8.50

11

0831931088
ref: 11

NUT

€ 2.50

12

0831921088
ref: 12

NUT

€ 1.50

13

0934304046
ref: 13

HOSE

€ 3.00

14

0940406412
ref: 14

CLAMP

€ 2.50

15-1

0934304046
ref: 15-1

HOSE

€ 3.00

15-2

0934304046
ref: 15-2

HOSE

€ 3.00
