CRANKCASE COVER- WATER PUMP (MODEL L/M)
RM125 1990 (L) USA (E03)

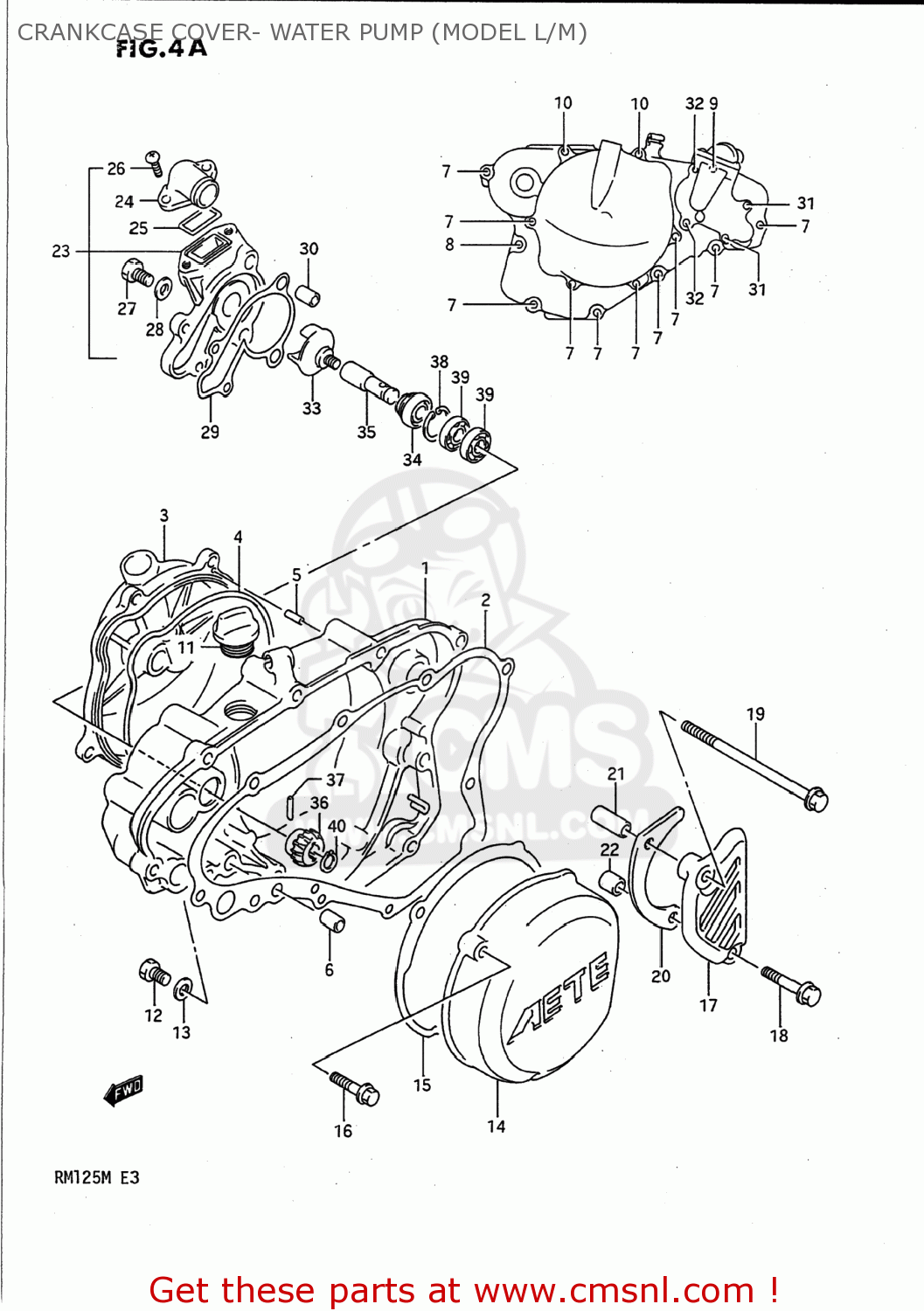

Crankcase cover- water pump (model l/m) diagram RM125 1990 (L) USA (E03)
CRANKCASE COVER- WATER PUMP (MODEL L/M) RM125 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134127C10
ref: 1
COVER,CLUTCH
€ 124.00
2
1148227C00
ref: 2
11482-27C02
GASKET,CLUTCH COVER (NAS)
€ 12.00
3
1137127C10
ref: 3
11371-27C11
COVER,CLUTCH,OUTER
€ 58.50
4
1148427C10
ref: 4
O RING,CLUTCH COVER OUTER
€ 14.50
5
0422104089
ref: 5
PIN
€ 1.50
6
0421109129
ref: 6
PIN
€ 2.00
7
0154706257
ref: 7
BOLT
€ 2.50
8
0154706357
ref: 8
BOLT
€ 2.50
9
0154706457
ref: 9
BOLT
€ 2.50
10
0154706657
ref: 10
BOLT
€ 2.00
11
0920020810
ref: 11
PLUG SET
€ 8.00
12
0912806004
ref: 12
09128-06044
SCREW(6X10)
€ 1.50
13
0916806004
ref: 13
GASKET(6.2X11X1).2 (NAS)
€ 1.50
14
1135127C00
ref: 14
COVER,MAGNETO
€ 94.00
15
1148327C00
ref: 15
GASKET,MAGNETO COVER (MCA)
€ 7.50
16
0154706257
ref: 16
BOLT
€ 2.50
17
1136027C00
ref: 17
11360-28E00
COVER,SPROCKET
€ 28.00
18
0154706407
ref: 18
BOLT
€ 2.50
19
0910306126
ref: 19
BOLT(6X105)
€ 5.00
20
2764127C00
ref: 20
PLATE,FR CHAIN GUIDE
€ 9.00
21
0918006203
ref: 21
SPACER(6.5X10.5X25)
€ 3.50
22
0918006221
ref: 22
SPACER(6.5X10.5X12)
€ 5.50
23
1741027C00
ref: 23
CASE ASSEMBLY,WATER PUMP
€ 97.50
24
1741227C00
ref: 24
17412-28E00
CONNECTOR
€ 23.50
25
1741414300
ref: 25
O RING,WATER PUMP CONNECTOR
€ 3.00
26
0211206167
ref: 26
SCREW
€ 2.50
27
1741500B00
ref: 27
17415-43D00
BOLT,BLEEDER
€ 3.00
28
1741300B00
ref: 28
17413-28C10
GASKET (NAS)
€ 1.50
29
1743101B02H17
ref: 29
GASKET,WATER PUMP CASE (NAS)
€ 6.00
30
0421109129
ref: 30
PIN
€ 2.00
31
0154706207
ref: 31
BOLT
€ 2.50
32
0154706307
ref: 32
BOLT
€ 2.50
33
1749101B03
ref: 33
17491-43D01
IMPELLER,WATER PUMP
€ 18.50
34
1746128C10
ref: 34
17461-03B00
SEAL,WATER PUMP OIL
€ 7.00
35
1751127C10
ref: 35
17511-27C11
SHAFT,WATER PUMP
€ 44.00
36
1744127C10
ref: 36
17441-43D20
GEAR,WATER PUMP DRIVEN
€ 29.00
37
0926103010
ref: 37
PIN(3X13.8)
€ 3.00
38
0833141249
ref: 38
CIRCLIP
€ 2.50
39
0811369000
ref: 39
BEARING
€ 23.50
40
0833131109
ref: 40
CIRCLIP
€ 2.00
