RM125 1990 (L) USA (E03)

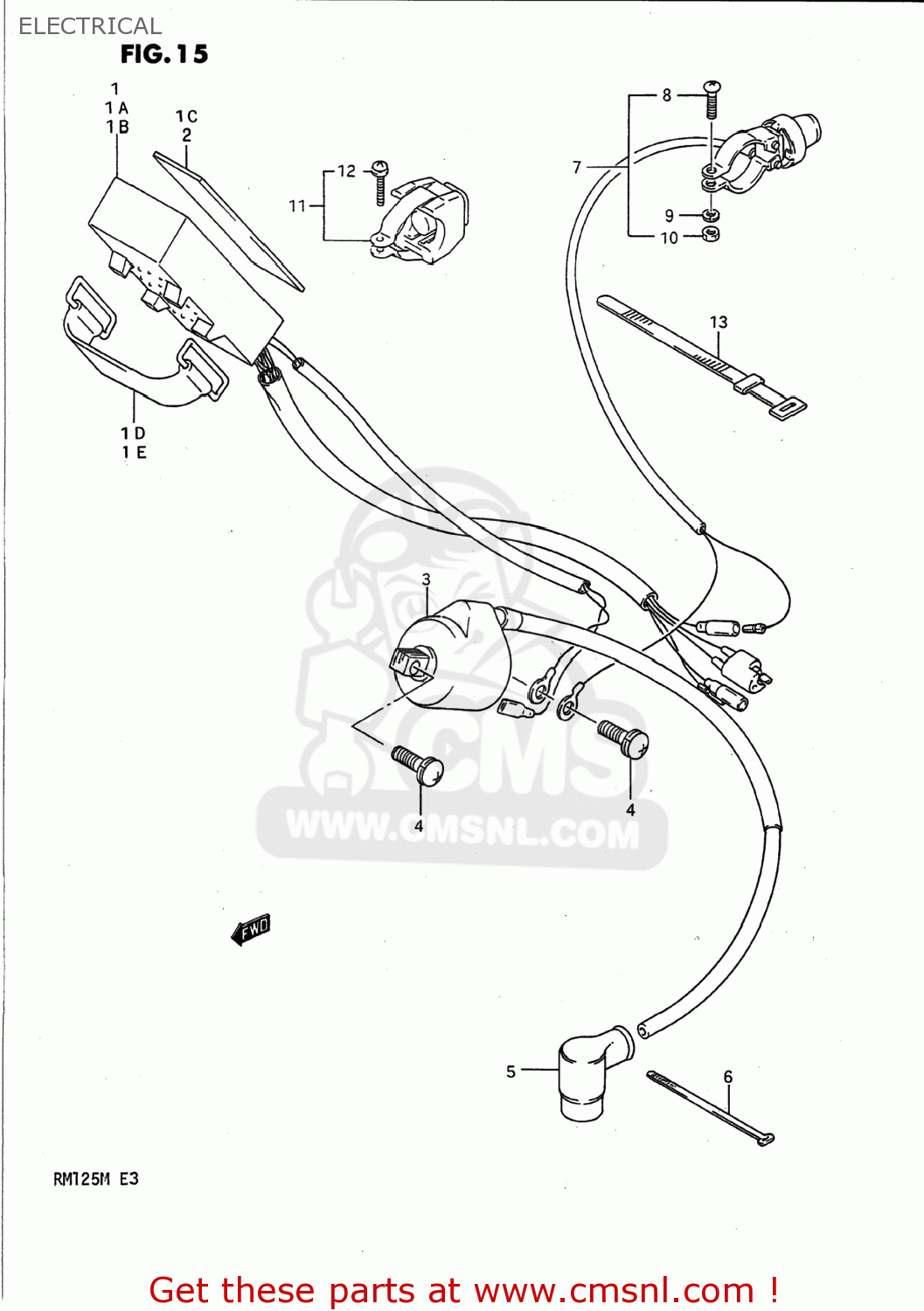

Electrical diagram RM125 1990 (L) USA (E03)
ELECTRICAL RM125 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290027C00
ref: 1
CDI UNIT
€ 512.00
1A
3290027C10
ref: 1A
32900-27C11
CDI UNIT
€ 461.50
1B
3290027C11
ref: 1B
CDI UNIT
€ 461.50
1C
3365137000
ref: 1C
PROTECTOR(170X95X3.0)
€ 5.00
1C
3365137000
ref: 1C
PROTECTOR(170X95X3.0)
€ 5.00
1D
0946200001A
ref: 1D
BAND
€ 8.00
1E
3294214111
ref: 1E
BAND(L:65)
€ 8.00
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
3-1
3341026C01
ref: 3-1
33410-12C00
COIL ASSEMBLY,IGNITION
€ 123.00
3-2
3341027C00
ref: 3-2
33410-12C00
COIL ASSEMBLY,IGNITION
€ 123.00
4
0211236206
ref: 4
02112-3620A
SCREW
€ 2.00
5
3351041111
ref: 5
33510-20A02
CAP,SPARK PLUG
€ 23.00
6
0940709402
ref: 6
CLAMP
€ 3.00
7
3782000B00
ref: 7
37820-14X50
SWITCH ASSEMBLY
€ 24.50
8
0211204167
ref: 8
02112-0416A
SCREW
€ 1.00
9
0832121047
ref: 9
08321-0104A
WASHER,LOCK 4M
€ 2.00
10
0831011047
ref: 10
08310-00047
NUT
€ 2.00
11
3782027C00
ref: 11
37820-14X50
SWITCH ASSEMBLY
€ 24.50
12
0211233165
ref: 12
SCREW
€ 1.50
13
0940712402
ref: 13
CLAMP(L:120)
€ 3.00
