KICK STARTER

RM125 1990 (L) USA (E03)

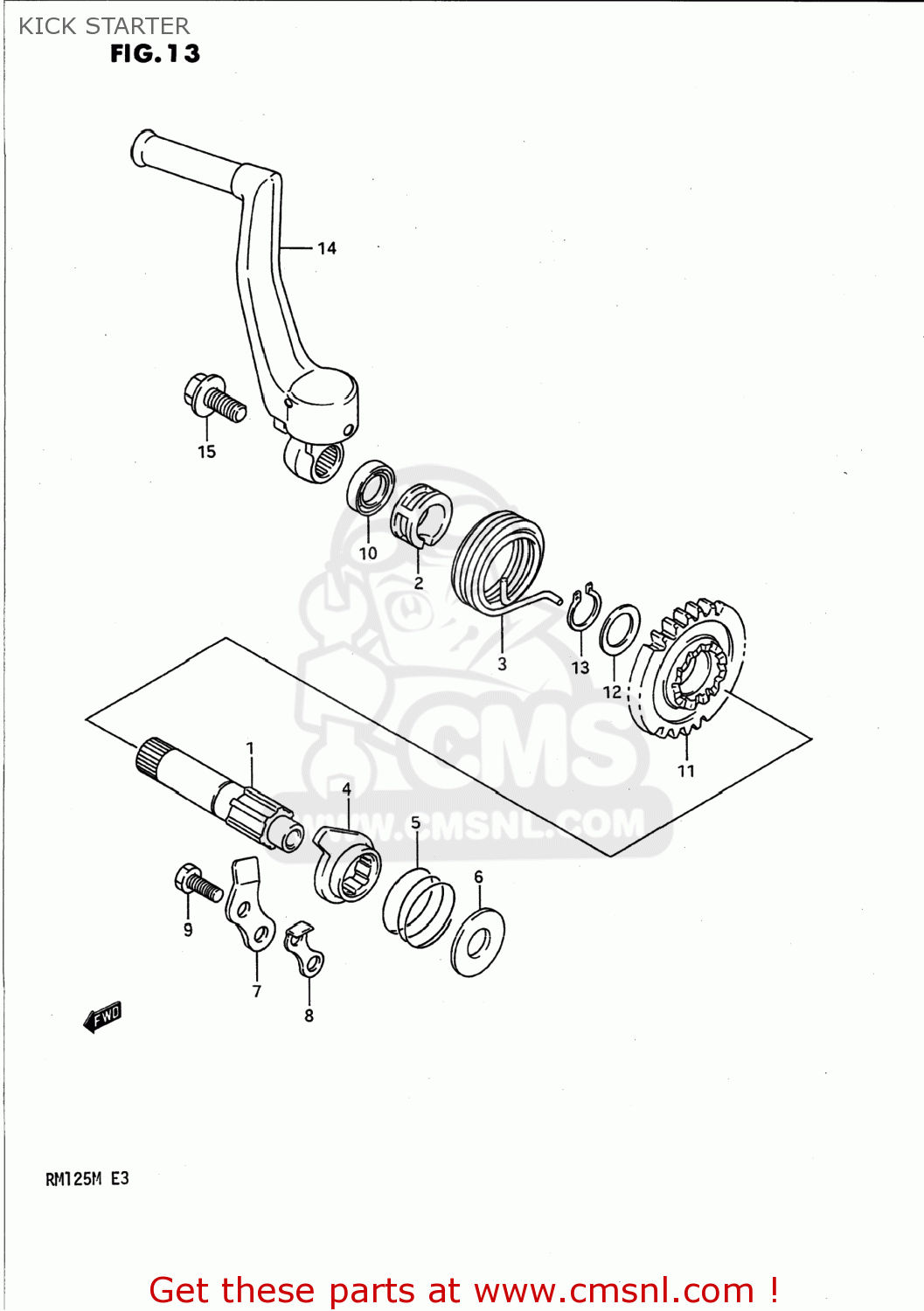

Kick starter diagram RM125 1990 (L) USA (E03)

KICK STARTER RM125 1990 (L) USA (E03)

KICK STARTER RM125 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2621127C00
ref: 1
26211-27C02

SHAFT,KICK STARTER

€ 113.50

2

2622127C00
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 3.50

3

0944845013
ref: 3

SPRING

€ 11.00

4

2623102B00
ref: 4
26231-02B02

STARTER,KICK

€ 15.50

5

0944031002
ref: 5

SPRING

€ 2.00

6

0821112301
ref: 6

WASHER

€ 2.00

7

2623240200
ref: 7

GUIDE,KICK STARTER

€ 3.00

8

2623340200
ref: 8
26233-40201

STOPPER,KICK STARTER

€ 2.50

9

0110706167
ref: 9
01500-06167

BOLT

€ 3.00

10

0928516003
ref: 10

SEAL,OIL(16X24X5)

€ 3.00

11

2624127C00
ref: 11

GEAR,KICK STARTER DRIVE

€ 62.50

12

0822116245
ref: 12
09181-16158

WASHER

€ 3.50

13

0833131169
ref: 13
08331-3116A

CIRCLIP,16MM

€ 2.00

14-1

2630027C01
ref: 14-1
26300-36E10

LEVER ASSEMBLY,KICK STARTER

€ 286.00

14-2

2630027C10
ref: 14-2
26300-36E10

LEVER ASSEMBLY,KICK STARTER

€ 286.00

14-3

2630027C30
ref: 14-3
26300-36E10

LEVER ASSEMBLY,KICK STARTER

€ 286.00

15

0910308253
ref: 15

BOLT(8X14)

€ 4.00
