REAR SWINGING ARM (MODEL L)
RM125 1990 (L) USA (E03)

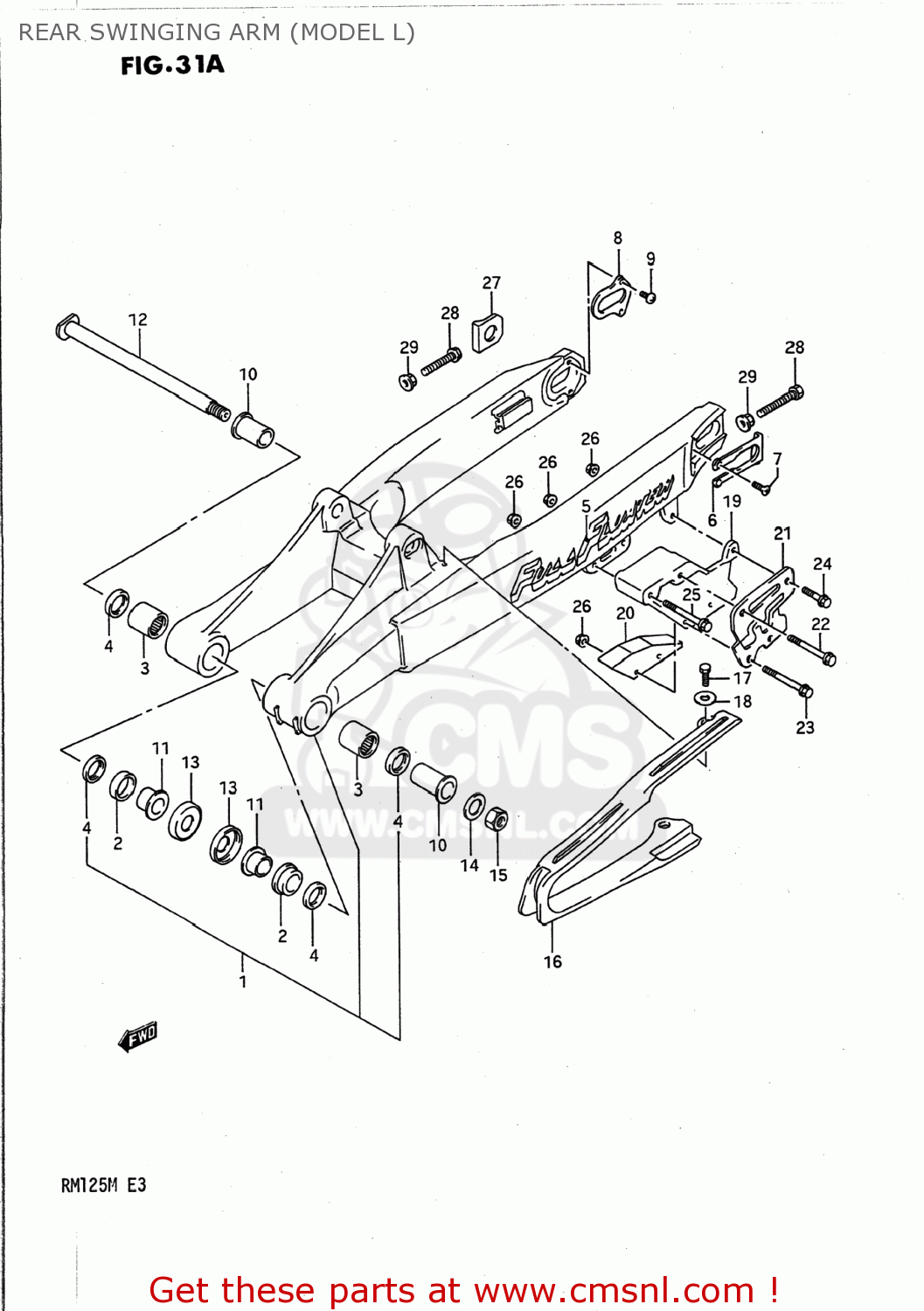

Rear swinging arm (model l) diagram RM125 1990 (L) USA (E03)
REAR SWINGING ARM (MODEL L) RM125 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100027C10
ref: 1
SWING ARM ASSEMBLY,REAR
€ 948.00
2
6126127C00
ref: 2
BUSHING,SWGARM PIVOT
€ 26.00
3
0926320039
ref: 3
BEARING(20X27X30)
€ 21.00
4
0928520005
ref: 4
09283-20031
OIL SEAL
€ 5.00
5
6838127C0097J
ref: 5
EMBLEM,SWING ARM
€ 6.50
6
6112927C10
ref: 6
PLATE,OUTER
€ 14.00
7
0912005003
ref: 7
SCREW(5X10)
€ 2.00
8
6112827C10
ref: 8
PLATE,INNER
€ 6.50
9
0912505072
ref: 9
09125-05072-XC0
SCREW (5X8)
€ 2.50
10
6125127C00
ref: 10
SPACER,RR SWGARM PIVOT
€ 14.50
11
6125227C00
ref: 11
SPACER,SWGARM PIVOT INNER
€ 10.00
12
6121127C00
ref: 12
SHAFT,RR SWINGINGARM PIVOT
€ 38.50
13
6126227C10
ref: 13
COVER,SWGARM PIVOT
€ 6.00
14
0916014027
ref: 14
WASHER(14.2X24X2.3)
€ 2.50
15
0915914013
ref: 15
09159-14019
NUT
€ 8.50
16
6127327C01
ref: 16
BUFFER,CHAIN TOUCH DEFENSE
€ 54.00
17
0154706167
ref: 17
BOLT
€ 2.00
18
0916906057
ref: 18
WASHER
€ 4.00
19
6134127C00
ref: 19
GUIDE,CHAIN
€ 20.00
20
6134801B30
ref: 20
61348-27C20
DEFENSE,CHAIN GUIDE
€ 26.50
21
6134227C00
ref: 21
PLATE,CHAIN GUIDE OUTER
€ 19.50
22
0154706607
ref: 22
BOLT
€ 2.50
23
0154706507
ref: 23
BOLT
€ 2.50
24
0154706307
ref: 24
BOLT
€ 2.50
25
0154706557
ref: 25
BOLT
€ 2.50
26
0831931067
ref: 26
NUT
€ 2.50
27
6144527C01
ref: 27
WASHER,CHAIN ADJUSTER
€ 22.00
28
0910008287
ref: 28
BOLT(8X50)
€ 3.00
29
0915908034
ref: 29
NUT
€ 2.00
29
0915908034
ref: 29
NUT
€ 2.00
